Data Cable
HELLOSIGNAL
ZCD120
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Specifications:
Wire Gauge: 24/32AWG
Conductor: Oxygen-Free Copper
Shielding: Aluminum Foil + Mylar + Braided Net
Cable Diameter/OD: 5.1mm (including net)
Outer Jacket: PVC + Cotton Net
Chip: Huinengtai HU USB4332A
Connector: Nickel-Plated
Current: 5A (Max)
Data Transfer Speed: 20Gbps
Power: 240W (Max)
Resolution: 4K/60Hz
Color: Deep Space Gray
Packaging: Boxed
Description:

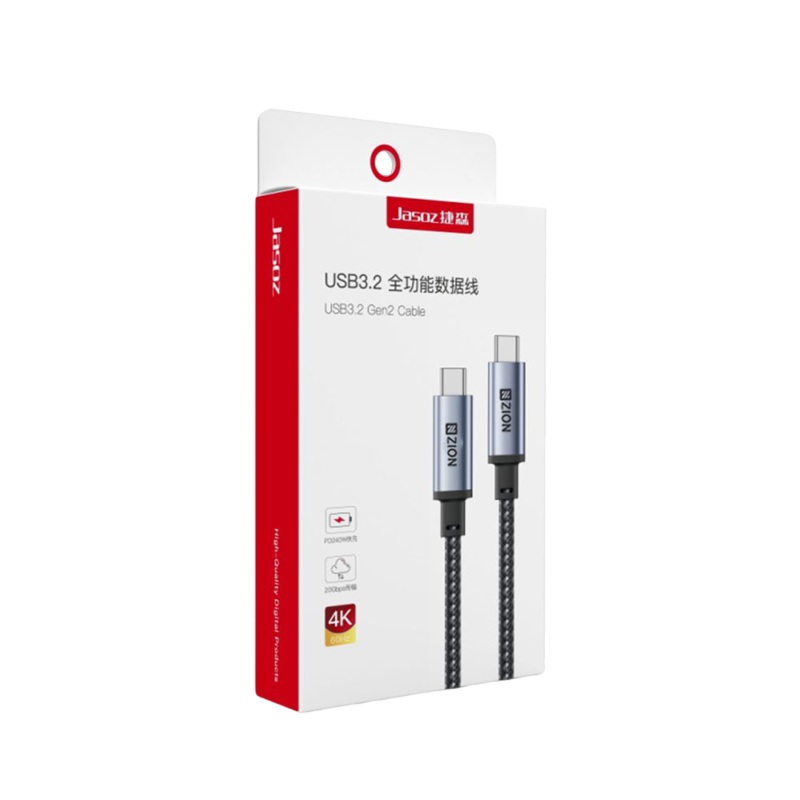

USB 3.2 multi-functional data cable with oxygen-free copper core and Huinengtai HU USB4332A chip for durability and oxidation resistance
Supports charging, data transfer, and video connection
Capable of 4K/60Hz video output, 20Gbps transfer speed, and 240W PD power
Backwards compatible with USB 3.1/3.0 and other protocols
Lengths & SKUs:
0.5m: ZC-D120-0.5M
1m: ZC-D120-1M
1.2m: ZC-D120-1.2M
1.5m: ZC-D120-1.5M
2m: ZC-D120-2M
Specifications:
Wire Gauge: 24/32AWG
Conductor: Oxygen-Free Copper
Shielding: Aluminum Foil + Mylar + Braided Net
Cable Diameter/OD: 5.1mm (including net)
Outer Jacket: PVC + Cotton Net
Chip: Huinengtai HU USB4332A
Connector: Nickel-Plated
Current: 5A (Max)
Data Transfer Speed: 20Gbps
Power: 240W (Max)
Resolution: 4K/60Hz
Color: Deep Space Gray
Packaging: Boxed
Description:
USB 3.2 multi-functional data cable with oxygen-free copper core and Huinengtai HU USB4332A chip for durability and oxidation resistance
Supports charging, data transfer, and video connection
Capable of 4K/60Hz video output, 20Gbps transfer speed, and 240W PD power
Backwards compatible with USB 3.1/3.0 and other protocols
Lengths & SKUs:
0.5m: ZC-D120-0.5M
1m: ZC-D120-1M
1.2m: ZC-D120-1.2M
1.5m: ZC-D120-1.5M
2m: ZC-D120-2M
