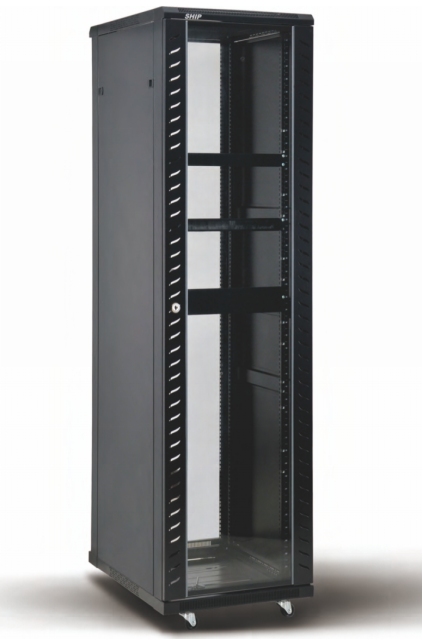

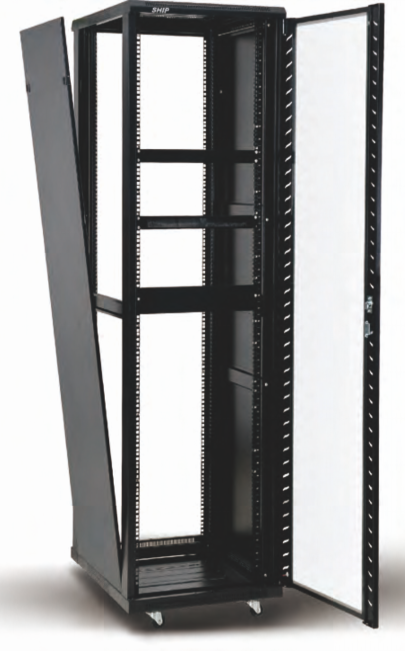

PE Network Rack Cabinet

  Technical Data

    Materials:

  · SPCC Cold Rolled Steel;

 · 19" rails: 2.0mm;

 · others:1.2mm.

   Colour:

  · ZCPE■■■■ ■■0■■: RAL7035

  · ZCPE■■■■ ■■1■■: RAL9004

   Loading Capacity:

  · Static loading: 800KG.

COMPLIANCE （Reference Standard）

 · Comply with ANSI/EIA RS-310-D

 · IEC60297-2

 · DIN41494;PART1; DIN41494;PART7.

   Feature

· Flat packing and patent frame. packing time Is less than

  20 minutes.

· Exquisite design with precise dimension and craftsmanship;

· Several styles of front and rear door options available;

· Adjustable feet and heavy duty castors are available

  simultaneously;

· Cable entry on the top cover and bottom panel with

  adjustable sizes;

· Optional installation of plinth to enable cabinets fixation,

  under-base ca ble entry/ventllatlon;

· Eficient and reliable cabinet connection by baying kit;

· Removable side panels to ease maintain;

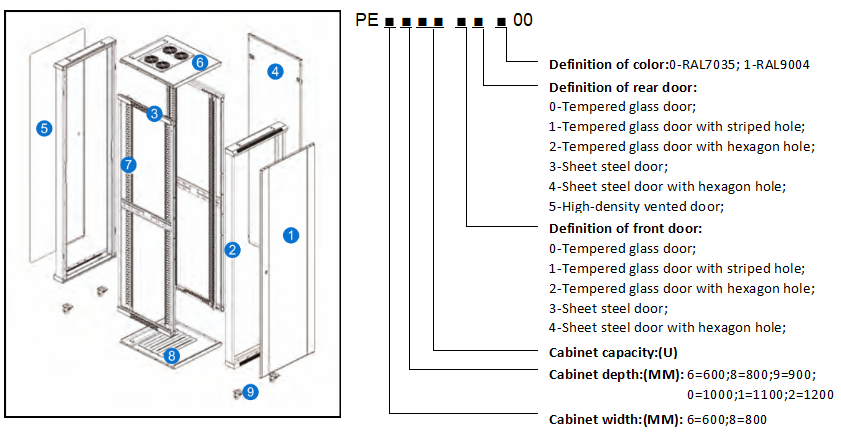

   Definition Of Cord

Shelf

Plinth

Fan Units

M6 Screws & nets

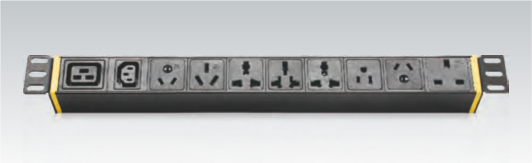

PDU

Definition Of Cord

Main Part

S/N

Specification

Qty

Material

Surface Finish

Remark

1

Front door

1

·····

Powder coated

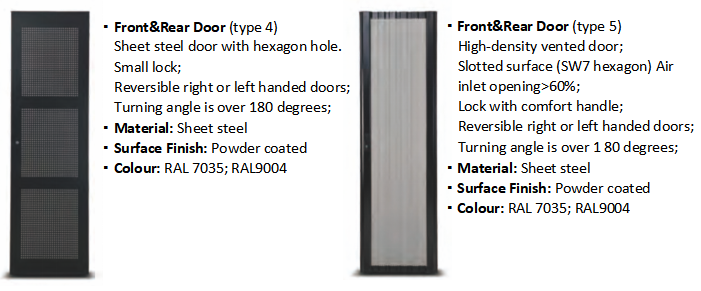

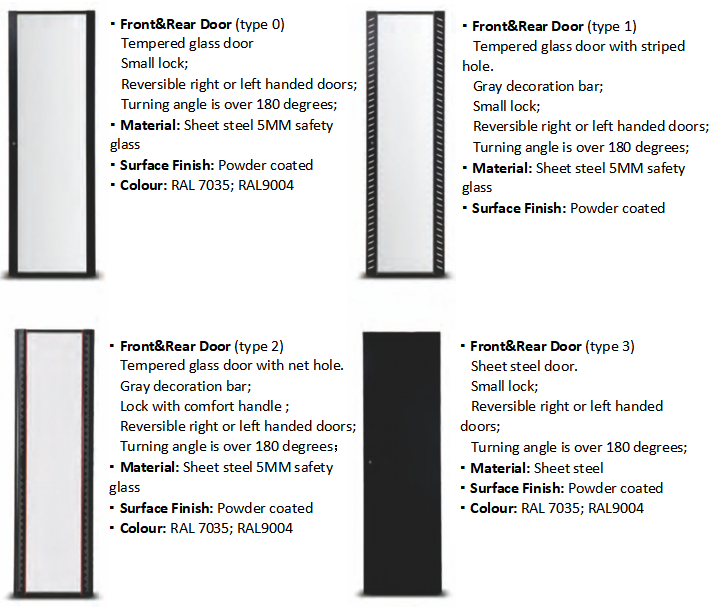

See next page

2

Frame

2

SPCC t1.2

Powder coated

·····

3

Side frame

2

SPCC t1.2

Powder coated

·····

4

Side panel

2

SPCC t1.2

Powder coated

≥ 1000 width cabinets need 4 panels

5

Rear door

1

·····

Powder coated

See next page

6

Top cover

1

SPCC t1.2

Powder coated

·····

7

19"rails

4

SPCC t2.0

Powder coated

·····

8

Bottom

1

SPCC t1.2

Powder coated

·····

9

2" heavy duty castor

4

·····

·····

·····

A

M12 adjustable feet

4

·····

v

·····

B

M6 screw & nuts

20

Steel

Color zinc

40pcs for over 33U

C

Trox tooling

1

Steel

Color zinc

·····

The 600mm width cabinet can be changed to the 800mm width one, only need to put the connecting panel and 2 cable management slots. Support 19" EIA equipment.

Specification:

Part Number.

 Width
(mm)

Depth(D)
(mm)

Capacity
(U)

Height(H)
(mm)

  CKD
paching parts

ZCPE.6615.PESC

600

600

15

800

3

ZCPE.6620.PESC

20

1000

ZCPE.6624.PESC

24

1200

ZCPE.6629.PESC

29

1400

ZCPE.6633.PESC

33

1600

ZCPE.6638.PESC

38

1800

ZCPE.6642.PESC

42

2000

ZCPE.6647.PESC

47

2200

ZCPE.6815.PESC

800

15

800

ZCPE.6820.PESC

20

1000

ZCPE.6824.PESC

24

1200

ZCPE.6829.PESC

29

1400

ZCPE.6833.PESC

33

1600

ZCPE.6838.PESC

38

1800

ZCPE.6842.PESC

42

2000

ZCPE.6847.PESC

47

2200

ZCPE.6938.PESC

900

38

1800

3

ZCPE.6942.PESC

42

2000

ZCPE.6947.PESC

47

2200

ZCPE.6038.PESC

1000

38

1800

ZCPE.6042.PESC

42

2000

ZCPE.6047.PESC

47

2200

ZCPE.8638.PESC

800

600

38

1800

4

ZCPE.8642.PESC

42

2000

ZCPE.8647.PESC

47

2200

ZCPE.8838.PESC

800

38

1800

ZCPE.8842.PESC

42

2000

ZCPE.8847.PESC

47

2200

ZCPE.8938.PESC

900

38

1800

ZCPE.8942.PESC

42

2000

ZCPE.8947.PESC

47

2200

ZCPE.8038.PESC

1000

38

1800

ZCPE.8042.PESC

42

2000

ZCPE.8047.PESC

47

2200

Packing dimensions: Carton width=cabinet width+40mm, Carton depth=cabinet depth+40mm, Carton height=cabinet hight+90mm

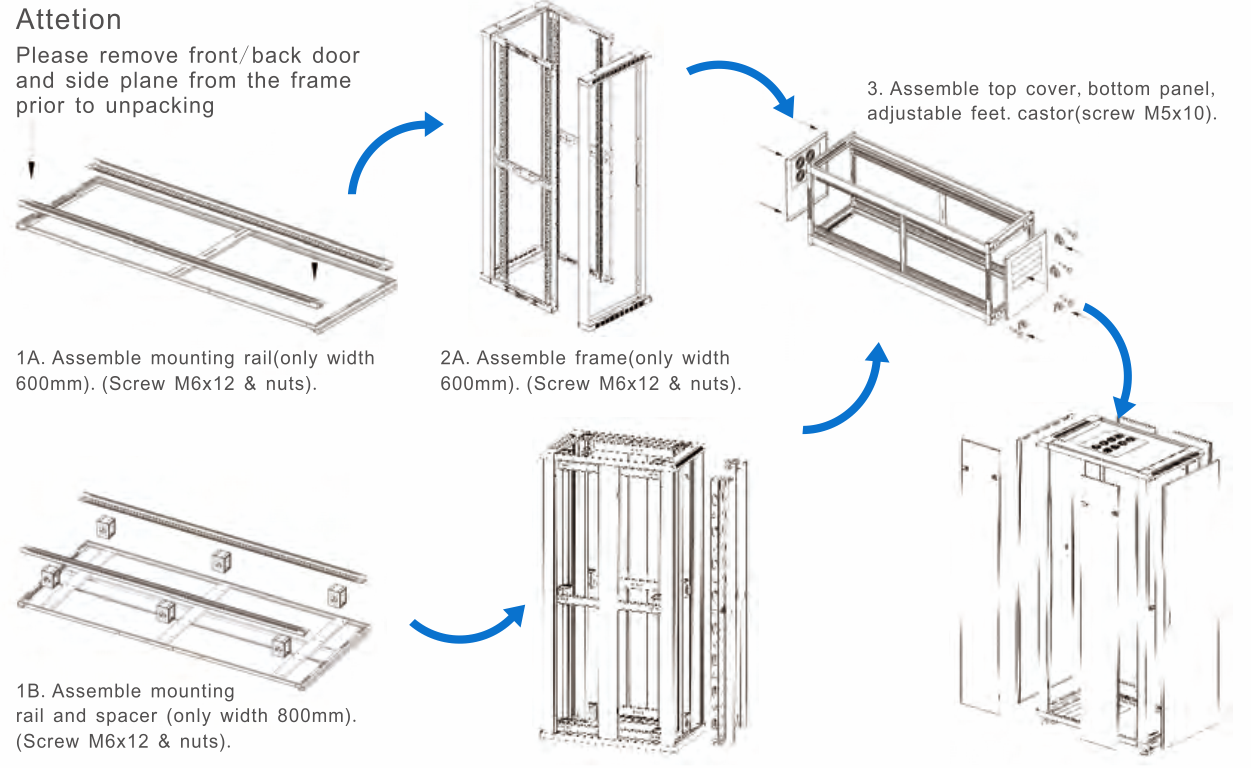

   Assembling Draft
