1. Understand the Basic POL Topology

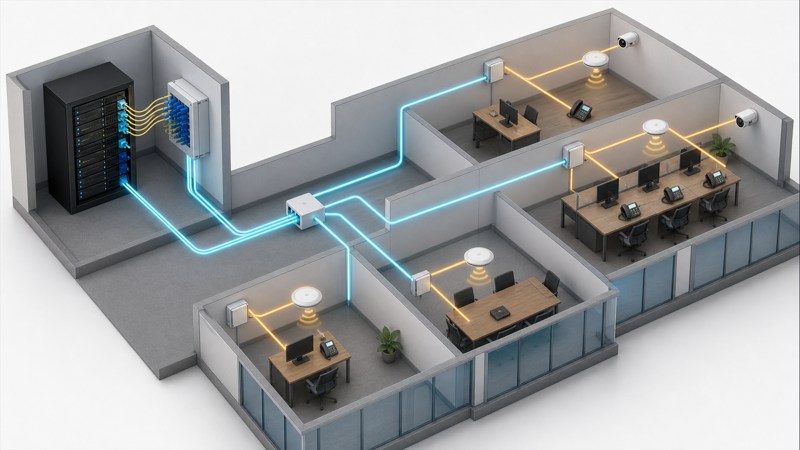

A typical POL path contains the following elements:

1. Enterprise core or service router
2. Optical line terminal in the main equipment room
3. OLT patch cords and optical distribution frame
4. Feeder single-mode fiber cable
5. One or more passive PLC splitters
6. Distribution or horizontal fiber cable
7. Fiber terminal box, outlet or consolidation point
8. Final optical patch cord
9. Optical network terminal
10. Short copper patch leads from the ONT to phones, computers, cameras or wireless access points

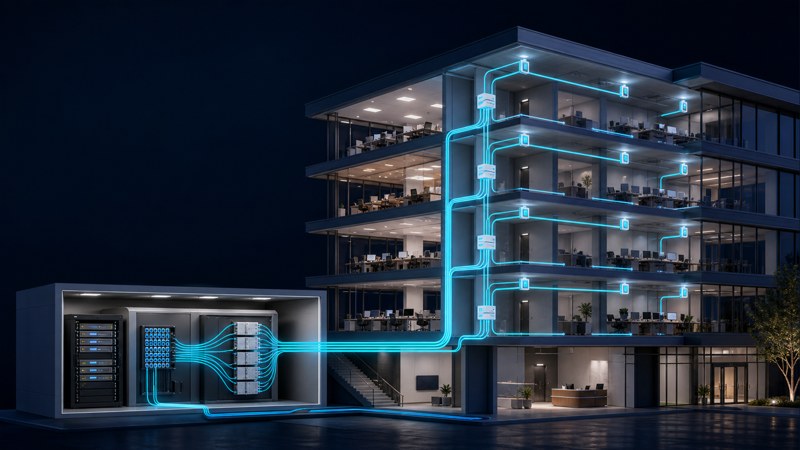

The topology is point-to-multipoint. One OLT port serves multiple ONTs through a passive splitter. The Fiber Optic Association's Optical LAN reference explains that downstream signals are divided toward multiple ONTs while upstream traffic is combined onto the feeder fiber.

POL can reduce the need for intermediate powered access switches, but it does not remove every telecommunications space or power requirement. Splitters, fiber storage, fire stopping, pathway transitions, ONT power and service access still need defined locations.

2. Establish the Active-System Inputs First

The passive BOM cannot be finalized from floor plans alone. Before selecting cables and splitters, obtain:

• PON technology: GPON, XGS-PON or another platform
• OLT and ONT manufacturer and model
• Optical class and permitted channel-loss range
• Maximum supported split ratio
• Number and type of ONT user ports
• PoE output required at the ONT
• Local or remote ONT power method
• Redundancy requirements
• Whether GPON and XGS-PON must coexist
• Required management and service-separation features

GPON physical-layer requirements are defined in the ITU-T G.984 series. XGS-PON is defined by ITU-T G.9807.1, which specifies nominal 10 Gbit/s operation in both downstream and upstream directions. These standards do not eliminate the need to follow the selected equipment manufacturer's design limits.

3. Choose a Splitter Architecture

Three decisions define the splitter plan:

Centralized or distributed splitting

Centralized splitting places most splitters in a main or regional distribution location. It improves visibility, port administration and replacement access. Distributed splitting places splitters closer to served areas and can reduce feeder-fiber counts, but creates more passive service points to document and maintain.

Single-stage or cascaded splitting

A single 1:N splitter is simpler to calculate and test. Cascaded splitting can align capacity with building zones or phased occupancy, but each splitter adds loss and administration complexity.

Connectorized or splice-in splitters

Connectorized splitters are easier to replace and rearrange. Splice-in splitters reduce mated connections but require skilled fusion splicing for installation or replacement. The correct choice depends on maintenance policy, enclosure space, expected reconfiguration and restoration time.

Never choose the split ratio only by dividing the number of users by the number of OLT ports. Check the full optical budget, service demand, spare ports, expected growth and fault impact.

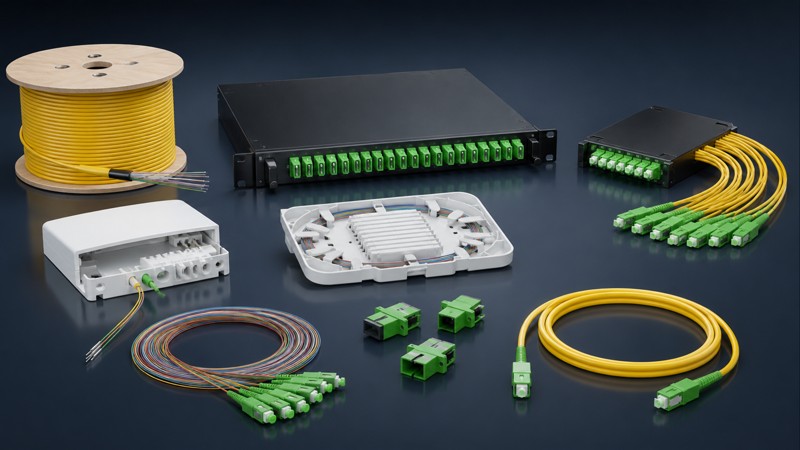

4. Build the Passive ODN BOM

ZION's current ODN solution range includes optical cables, splitters, distribution and termination products. Its FTTH/PON solution also illustrates the overlap between access-network components and the passive layer of enterprise POL. Product suitability must still be verified against the building environment and project specification.

5. Select the Fiber and Cable Construction

POL normally uses OS2 single-mode fiber. The cable construction should be selected separately from the fiber category.

• ITU-T G.652.D: a widely used single-mode reference for backbone and controlled-route applications.
• ITU-T G.657.A1: G.652.D-compatible fiber with improved macrobending performance.
• ITU-T G.657.A2: more bend-tolerant and useful near compact enclosures, outlets and ONTs.

The 2024 edition of ITU-T G.657 states that category A fibers are compatible with G.652.D and identifies minimum design radii of 10 mm for A1 and 7.5 mm for A2. Those fiber values do not replace the finished cable manufacturer's minimum installation and long-term bend-radius limits.

Also specify:

• Tight-buffered, loose-tube or micro-bundle construction
• Indoor, outdoor or indoor/outdoor route
• All-dielectric or armored construction
• LSZH, riser, plenum or locally required fire classification
• Crush, tensile and water-blocking requirements
• Cable diameter and pathway fill
• Fiber count and spare-fiber policy

6. Calculate the Optical Loss Budget

The total passive loss is the sum of every optical event in the channel:

Total design loss = fiber attenuation + splitter loss + connector loss + splice loss + other passive-device loss + engineering margin

Build the budget using maximum specified component values rather than typical laboratory values. Compare the result with the permitted channel range of the selected OLT and ONT optics. A PON receiver may specify both a maximum allowable loss and a minimum loss or overload condition, so an unusually short, low-loss path may also require checking.

Use a route-specific worksheet containing:

• Fiber length by segment
• Attenuation coefficient at relevant wavelengths
• Number of mated connector pairs
• Number of fusion or mechanical splices
• Splitter type and each stage of splitting
• Coexistence elements or WDM devices, if used
• Repair allowance
• Engineering margin
• Calculated result and equipment limit

Do not copy one loss budget across every building. Short hotel-floor links, long campus links and cascaded split paths can produce different results even when they use the same OLT.

7. Plan Power and Endpoint Connections

The optical distribution may be passive, but the ONT requires power. Define whether each ONT will use:

• Local AC power
• Centralized low-voltage DC power over separate copper conductors
• A hybrid fiber-and-power cable
• Battery-backed or UPS-supported power

If the ONT provides PoE to cameras, phones or access points, calculate the complete chain: central supply or local outlet, conductor voltage drop, ONT consumption, conversion losses and endpoint PoE demand. The APOLAN specification explicitly recognizes local AC and remote DC approaches and calls for conductor sizing based on voltage drop and future applications.

8. Test, Label and Document the Installation

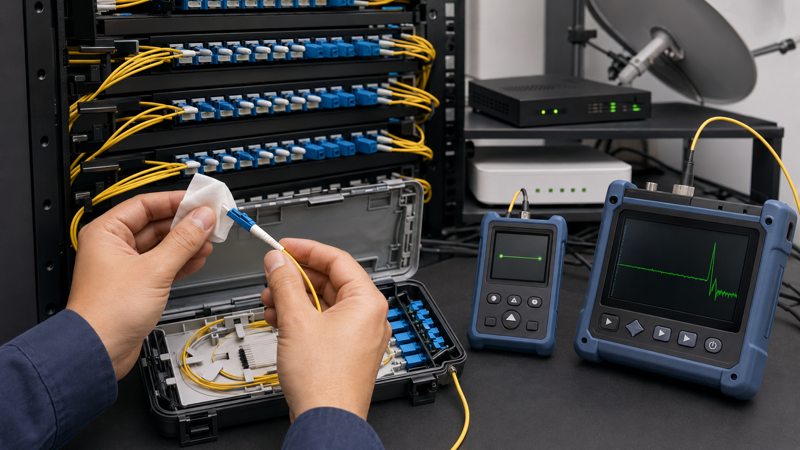

Acceptance should cover more than continuity. A practical plan includes:

• Visual inspection of cable routes and bend control
• Connector inspection, cleaning and reinspection
• Fiber identification and polarity verification
• Tier 1 insertion-loss testing with an OLTS
• Splitter-inclusive end-to-end testing where specified
• Link testing of infrastructure segments
• OTDR testing where required for event characterization
• Copper certification for ONT endpoint links
• As-built diagrams, port maps and loss records

Fluke Networks emphasizes that cable, connectors, splitters and splices all contribute to channel loss and that connectors should be inspected and cleaned before testing. OTDR traces can help locate events, but they do not replace direct insertion-loss certification with an OLTS.

9. Use a Complete Procurement Input Sheet

A useful POL RFQ should state:

• Project type and location
• Building and floor count
• Number and distribution of ONTs
• OLT/ONT models and optical class
• Split ratios and splitter stages
• Maximum route length
• Cable environment and fire rating
• Fiber type and count
• Connector type and end face
• Pretermination or field-splice preference
• Enclosure mounting and capacity
• Labeling and packaging rules
• Required test reports and certificates
• Spare and restoration quantities
• Delivery phases

Conclusion

A successful Passive Optical LAN is not created by selecting a splitter and running single-mode fiber. The active platform, topology, passive BOM, optical budget, pathway, power plan, testing method and documentation must be engineered as one system.

ZION can help integrators and contractors convert an approved POL design into a controlled passive BOM covering cable, ODFs, splitters, enclosures, patching, termination and project-specific assemblies.
