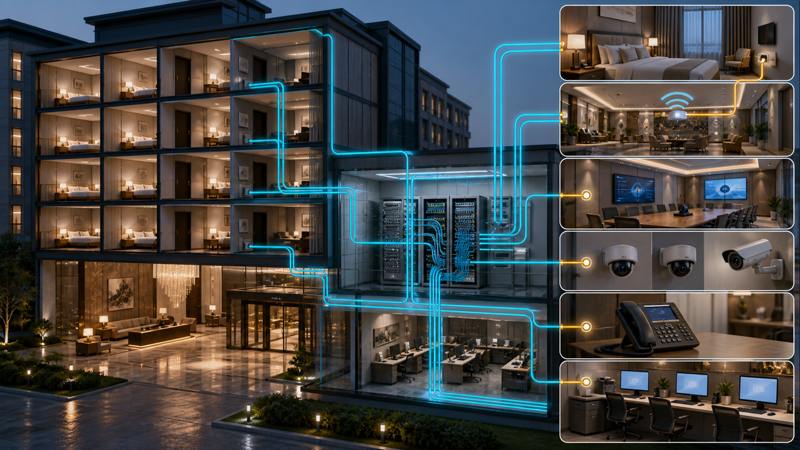

1. Map Hotel Services

A hotel network may support:

• Guest internet access
• In-room Wi-Fi
• IPTV or media services
• VoIP or analog guestroom phones
• Property-management terminals
• Point-of-sale systems
• CCTV
• Access control
• Digital signage
• Conference and event networks
• Building-management interfaces
• Staff and back-office connectivity

The APOLAN technical specification recognizes converged Ethernet, voice and video services over a single-mode optical infrastructure. Endpoint interfaces still depend on the selected ONT.

2. Choose the Guestroom ONT Model First

The room design depends on:

• Number of Ethernet ports
• Port speeds
• PoE capability
• Voice ports
• IPTV interface requirements
• Local AC power
• Mounting form
• Heat and ventilation
• Tamper protection
• Remote management

Possible models include one ONT per room, one ONT serving a small room cluster, or a larger ONT serving an equipment zone with copper extending to rooms. Compare service isolation, repair impact and copper lengths before choosing.

3. Create Logical Service Zones

Useful zones include:

• Guestroom floor or wing
• Lobby and public areas
• Conference center
• Restaurants and retail
• Security and surveillance
• Administration
• Back-of-house operations
• Outdoor or resort facilities

Avoid placing all critical and guest services behind one splitter group without reviewing the failure impact. Separate service groups can improve troubleshooting and operational control.

4. Centralized or Floor-Based Splitting

Centralized splitting

Splitters in a main or regional room simplify administration and replacement but require more distribution fibers to rooms.

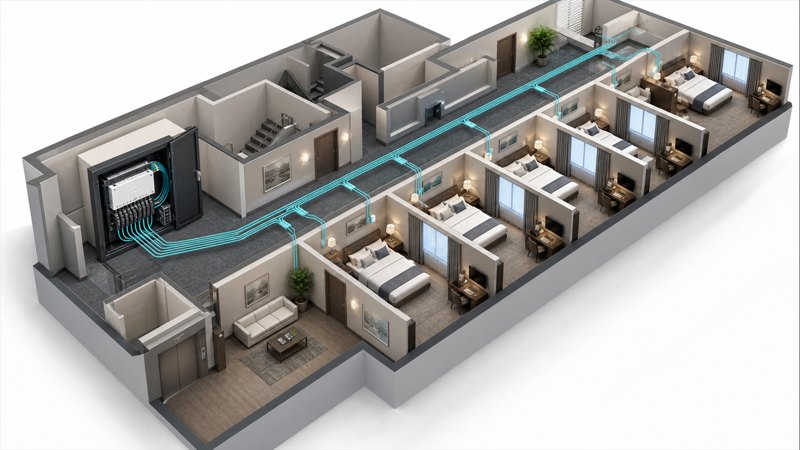

Floor-based splitting

Splitters in secure floor enclosures reduce feeder-fiber counts and align with repetitive floors. The enclosure must remain accessible, protected and documented.

Cascaded splitting

A first stage may divide towers or wings, while a second stage serves floors. This can fit large resorts but adds loss and more service points.

Calculate every final path rather than referring only to the nominal final split ratio.

5. Build the Passive BOM

ZION's FTTH/PON access products overlap with many hotel POL requirements: splitters, terminals, drop-style indoor fiber and optical patching. Product fire rating and building suitability must be confirmed for each project.

6. Standardize the Guestroom Kit

A repeatable room kit can contain:

• One bend-insensitive fiber drop
• One compact wall outlet
• One SC/APC patch cord
• One ONT mounting bracket or enclosure
• Defined Cat6/Cat6A leads
• Identification label set
• Cleaning and inspection instruction

Standard lengths reduce excess slack and packaging errors. Pack kits by floor, wing or installation phase.

7. Protect Wi-Fi and PoE Performance

If an ONT powers a wireless access point or camera, verify:

• ONT total PoE budget
• Required IEEE PoE class
• Copper patch length and category
• Local or remote ONT power
• Backup-power requirement
• Heat inside furniture or wall enclosures

Nokia positions Optical LAN for hospitality and publishes enterprise ONTs with PoE capability; its Optical LAN portfolio demonstrates the importance of matching the active endpoint to the application.

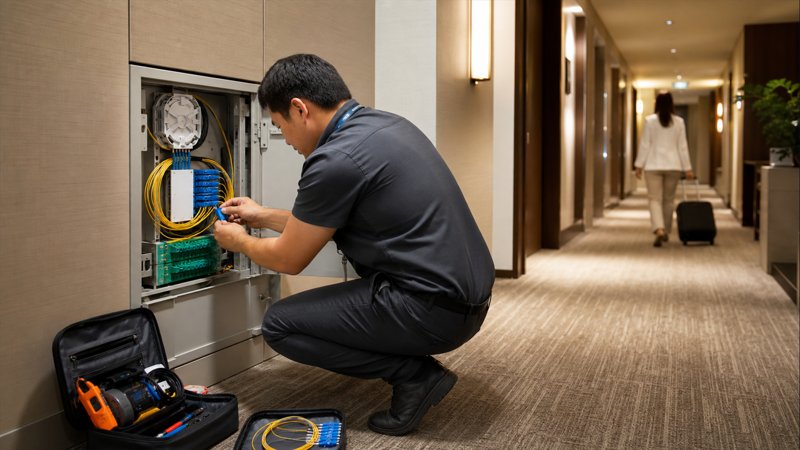

8. Design for Hotel Operations

Hotels operate continuously. Include:

• Accessible splitter locations
• Spare ONTs and passive modules
• Room-by-room port maps
• Standard patch-cord lengths
• Night-shift change procedures
• Ability to isolate a floor or wing
• Documented restoration paths
• Guestroom access coordination

Maintenance that requires entering occupied rooms can extend restoration time, so ONT and outlet placement matters.

9. Testing and Handover

For each room or endpoint:

• Inspect and clean connectors
• Verify room/floor labeling
• Measure passive link or channel loss
• Confirm ONT registration
• Verify Ethernet and PoE ports
• Test voice or IPTV service where included
• Record the final OLT/splitter/ONT mapping

Create a digital port map that the hotel IT team can use without interpreting contractor-only cable codes.

10. Common Hotel POL Mistakes

• Selecting an ONT without enough ports or PoE budget
• Hiding splitters in inaccessible ceilings
• Using one patch-cord length for every room layout
• Ignoring fire rating in risers and plenums
• Combining guest, security and critical operations without failure-domain review
• Underestimating room turnover and maintenance access
• Omitting spare splitter and ONT stock
• Delivering test files without room mapping

Conclusion

Hotel POL works best as a standardized room-and-floor system. A well-designed solution aligns ONT features, splitter zones, bend-insensitive fiber, short endpoint copper, power and maintenance procedures.

ZION can support the passive package through project-defined ODFs, riser and distribution fiber, PLC splitters, floor terminals, room outlets, patch cords and installation kits.
