Passive Optical LAN vs Traditional Ethernet LAN

Author: Site Editor     Publish Time: 12-08-2026      Origin: Site

Passive Optical LAN vs Traditional Ethernet LAN | ZION

Passive Optical LAN vs Traditional Ethernet LAN: Cabling, Power, Space and Upgrade Trade-Offs

Passive Optical LAN and traditional switched Ethernet can both connect enterprise users and devices. The important difference is not simply fiber versus copper. It is the complete access architecture.

Passive Optical LAN and traditional switched Ethernet can both connect enterprise users and devices. The important difference is not simply fiber versus copper. It is the complete access architecture.

A traditional LAN normally distributes active Ethernet switches through main and intermediate telecommunications rooms. Horizontal copper cabling then connects switch ports to outlets and devices. A Passive Optical LAN centralizes the optical line terminal and uses single-mode fiber plus passive splitters to reach optical network terminals near users.

The correct choice depends on building geometry, endpoint density, power strategy, service requirements, operational skills and upgrade plans. Universal percentage-saving claims are less useful than a project-specific comparison.

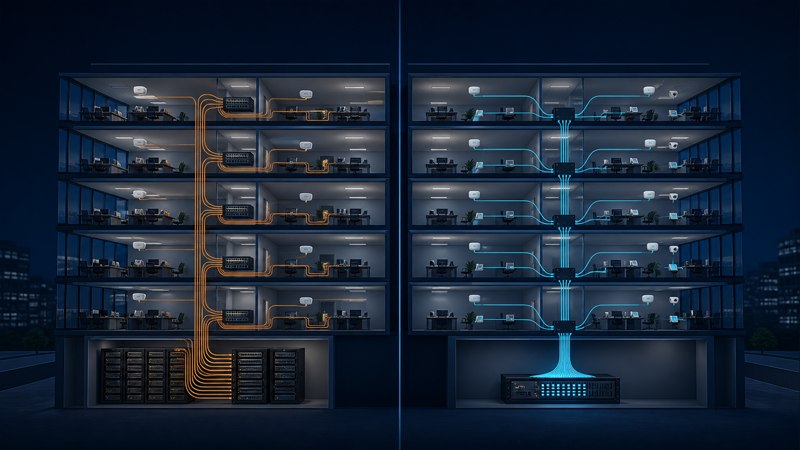

Technical overview of POL and traditional Ethernet comparison

1. Architecture

Traditional Ethernet LAN

Typical path:

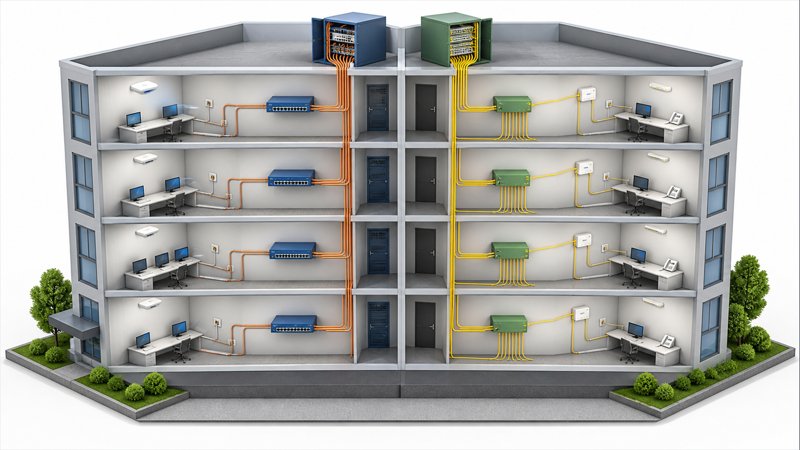

Architecture Comparison for POL and traditional Ethernet comparison

Core switch → distribution/access switch → copper horizontal cable → outlet → patch cord → device

Active access switches are distributed through telecommunications rooms. Each switch needs power, grounding, cooling or ventilation, management and replacement planning.

Passive Optical LAN

Typical path:

Core network → OLT → feeder fiber → passive splitter → distribution fiber → ONT → short endpoint cable → device

The splitter does not require power. Active conversion occurs at the OLT and ONT. Cisco's PON overview identifies passive optical splitting as the central difference between PON and active optical networking.

2. Cabling Media

Traditional enterprise access commonly uses balanced copper cabling such as Cat6 or Cat6A. POL uses OS2 single-mode fiber across most of the distribution path, with short copper connections often retained between ONTs and endpoint devices.

This changes the physical design:

  • Fiber is smaller and lighter for a given number of served endpoints.
  • Fiber is immune to electromagnetic interference.
  • Fiber installation requires bend control, connector cleanliness and appropriate test equipment.
  • Copper can deliver both Ethernet data and PoE over the same four-pair cable.
  • Fiber cannot directly deliver electrical power, so ONT powering needs a separate plan.

3. Distance and Building Geometry

Balanced copper Ethernet channels are designed around standardized building-cabling distance limits. PON reach is controlled by the active optical class, total channel loss, split ratio and platform rules.

This can make POL attractive for:

  • Multi-building campuses
  • Airports and transport facilities
  • Hotels and resorts
  • Warehouses and industrial sites
  • Hospitals
  • Large government or education facilities

Nokia's Optical LAN overview highlights the value of centralized fiber architecture in extended campuses and multi-floor buildings. However, the advertised maximum reach of a platform should never replace a calculated route-specific loss budget.

4. Telecommunications Rooms and Space

POL can reduce the quantity of distributed active switching equipment. It may allow some intermediate rooms to be smaller or function mainly as passive distribution points.

It does not automatically eliminate every room. Designers still need space for:

  • Fiber splitters and terminals
  • Slack storage
  • Pathway transitions
  • Fire stopping
  • Cross-connects
  • Remote-power distribution
  • Maintenance access
  • Future capacity

The comparison should use actual room schedules rather than a blanket statement that POL requires no telecommunications rooms.

5. Power and Cooling

Traditional LAN access switches consume power in distributed rooms. POL splitters consume no power, which can reduce distributed electronics and associated cooling.

But POL still needs power for:

  • OLTs
  • ONTs
  • Endpoint devices
  • Remote DC power supplies, if used
  • Backup power systems

The APOLAN specification recognizes local AC and remote DC ONT power. A fair energy comparison therefore includes OLTs, ONTs, conversion losses, UPS operation and endpoint PoE loads—not only the absence of floor switches.

6. PoE and Endpoint Connectivity

Traditional copper LANs provide a direct path for PoE from the access switch to cameras, phones, access points and other devices.

In POL, common options are:

  • ONT with PoE output
  • ONT with local power and short PoE copper leads
  • Remote DC power to the ONT over separate copper conductors
  • Hybrid fiber-and-power cable
  • A mixed architecture retaining Ethernet switches in high-PoE zones

Some enterprise ONTs are specifically designed to provide PoE. For example, Nokia publishes ONT documentation describing Ethernet and PoE capabilities for an Optical LAN environment. The required ONT model, PoE class and power budget must be confirmed before the passive cabling is finalized.

7. Bandwidth and Shared Capacity

A traditional switched LAN provides defined Ethernet port speeds and uplink oversubscription based on the switch design. A PON shares an OLT-port transmission channel among multiple ONTs.

Therefore, compare:

  • OLT-port line rate
  • Number of ONTs per port
  • Real traffic profiles
  • Upstream and downstream symmetry
  • ONT user-port speeds
  • Service-level requirements
  • Peak simultaneous demand

XGS-PON provides a nominal 10 Gbit/s rate in both directions under ITU-T G.9807.1. This does not mean each ONT automatically receives a dedicated 10 Gbit/s service. Capacity planning still matters.

8. Resilience and Failure Domains

Traditional LAN failure domains often follow individual switches and uplinks. POL failure domains can follow:

  • OLT chassis or service card
  • OLT port
  • Feeder fiber
  • Splitter
  • Distribution branch
  • ONT
  • Power source

A high split ratio can place many endpoints behind one OLT port or feeder path. Critical projects should evaluate dual OLT uplinks, diverse feeder routes, spare fibers, protected power and the operational impact of each splitter group.

POL is not inherently less resilient or more resilient. The topology determines the result.

9. Operations and Troubleshooting

Traditional Ethernet teams are familiar with switch ports, copper certification and PoE diagnostics. POL introduces:

  • OLT and ONT provisioning
  • Optical receive-level monitoring
  • Splitter-based fault domains
  • Connector inspection and cleaning
  • OLTS and PON-aware OTDR testing
  • Optical budget interpretation

The passive network may contain fewer active field devices, but the organization needs fiber-handling and PON-management skills.

10. Moves, Adds and Changes

Traditional LAN changes often involve repatching a switch port and copper outlet. POL changes may involve reassigning an ONT, splitter port or OLT service profile.

Centralized splitters can simplify port administration. Distributed or concealed splitters can make changes harder if documentation is poor. Labels and as-built records have a direct operational value in either architecture.

11. Upgrade Strategy

Fiber has broad transmission capability, but upgrade claims need conditions.

Before reusing a POL ODN for a new PON generation, verify:

  • Fiber category and condition
  • Connector reflectance and end-face quality
  • Splitter wavelength range and loss
  • Coexistence requirements
  • Total channel loss
  • ONT and OLT compatibility
  • Service interruption plan

The ITU publishes separate recommendations for GPON, XGS-PON and PON coexistence. Reuse is an engineering assessment, not a universal promise.

12. A Practical Decision Matrix

Project condition Often favors POL Often favors traditional Ethernet or hybrid design
Large distances between buildings Yes When local switching is already required
Many distributed telecom rooms Can reduce active-room needs Existing powered rooms may favor reuse
High endpoint PoE density Requires detailed ONT and power design Direct switch PoE may be simpler
Strong EMI environment Fiber offers a clear advantage Copper requires suitable separation/shielding
Frequent desk moves Depends on ONT and splitter administration Familiar outlet-and-switch workflow
Centralized operations Strong fit Distributed autonomy may favor switches
Existing reusable copper plant Greenfield benefit may be reduced Reuse can be economical
Long asset horizon Passive fiber may support multiple generations Active and copper upgrades may be phased

Conclusion

Passive Optical LAN and traditional Ethernet should be compared as complete systems. POL can reduce distributed active equipment and extend single-mode fiber across large buildings or campuses. Traditional Ethernet offers familiar operations and direct PoE delivery. Hybrid designs can combine both.

ZION's relevant contribution is the physical-layer comparison: OS2 cabling, ODFs, splitters, enclosures and optical assemblies for POL, plus Cat6/Cat6A cabling for traditional or ONT-to-device links.
