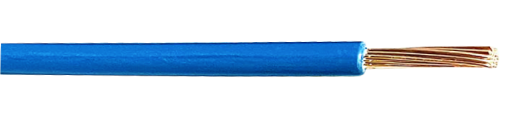

WTA Automotive Cable

WTA Automotive Cable

Product Description:

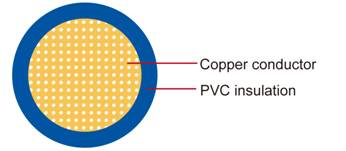

Conductor

Soft-annealed copper according to ASTM B

Insulation

PVC Ultra-Thin wall according to SAE J 1678 ford WSBM1 L134-A/Chrysler MS 9532/Lear UTMS 12501/SAEJ 1678

Standard Compliance

SAE J1678

Special properties

Flexible

Technical Parameters

–40°C to +85°C

Application:

This PVC insulated low-voltage cable is designed for used at nominal voltage of 60v dc (60V AC rms) or surface vehicles electrical systems.

Zion's Hot Types of WTA Automotive cable

Type

Conductor

Insulation

Cable

SIZE

Nominal
cross-
section

No. and
Dia. of Wires

Diameter of
Conductor max.

Nominal thickness

Overall
Diameter Max.

Weight
approx.

AWG

mm²

No./mm

mm

mm

mm

Kg/km

22

1x0.35

7/0.25

0.76

0.2

1.4

4.0

20

1x0.50

7/0.32

0.97

0.2

1.6

7.0

18

1x0.80

19/0.23

1.17

0.2

1.8

8.0

16

1x1.3

19/0.28

1.45

0.2

2.0

12.0

14

1x2

19/0.36

1.8

0.2

2.4

19.0

12

1x3

19/0.45

2.3

0.24

3.0

30.0

* Note: Other configurations, sizes, colors and length not specified herein are available upon request.
