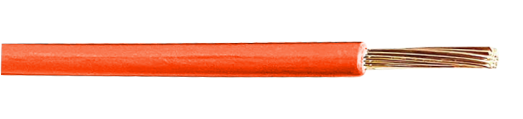

WXC Automotive Cable

WXC Automotive Cable

Product Description:

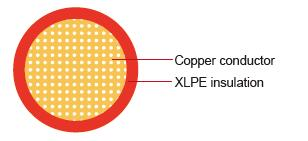

Conductor

Soft-annealed copper according to ASTM B

Insulation

XLPE Ultra-Thin wall flame-retardant,halogen-free

Standard Compliance

SAE J1678

Special properties

Flexible

Technical Parameters

–40°C to +125°C

Application:

This XLPE insulated low-voltage cable is designed for used at nominal voltage of 60v dc (60V AC rms) or surface vehicles electrical systems.

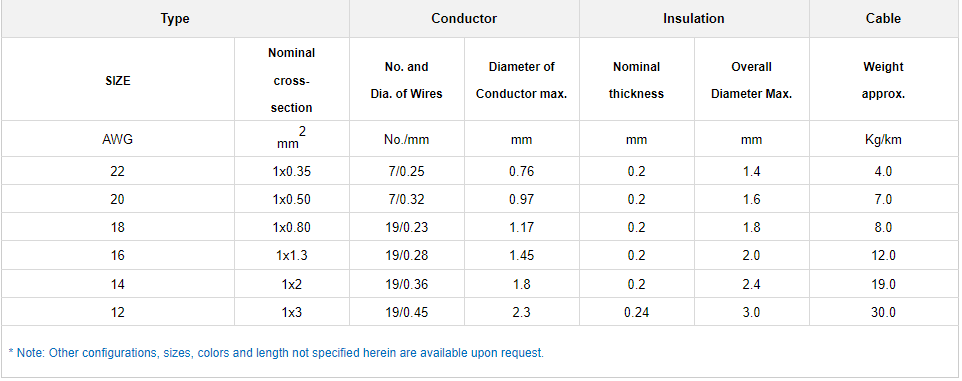

Zion's Hot Types of WXC Automotive cable

Type

Conductor

Insulation

Cable

SIZE

Nominal
cross-
section

No. and
Dia. of Wires

Diameter of
Conductor max.

Nominal thickness

Overall
Diameter Max.

Weight
approx.

AWG

mm²

No./mm

mm

mm

mm

Kg/km

22

1x0.35

7/0.25

0.76

0.2

1.4

4.0

20

1x0.50

7/0.32

0.97

0.2

1.6

7.0

18

1x0.80

19/0.23

1.17

0.2

1.8

8.0

16

1x1.3

19/0.28

1.45

0.2

2.0

12.0

14

1x2

19/0.36

1.8

0.2

2.4

19.0

12

1x3

19/0.45

2.3

0.24

3.0

30.0

* Note: Other configurations, sizes, colors and length not specified herein are available upon request.
