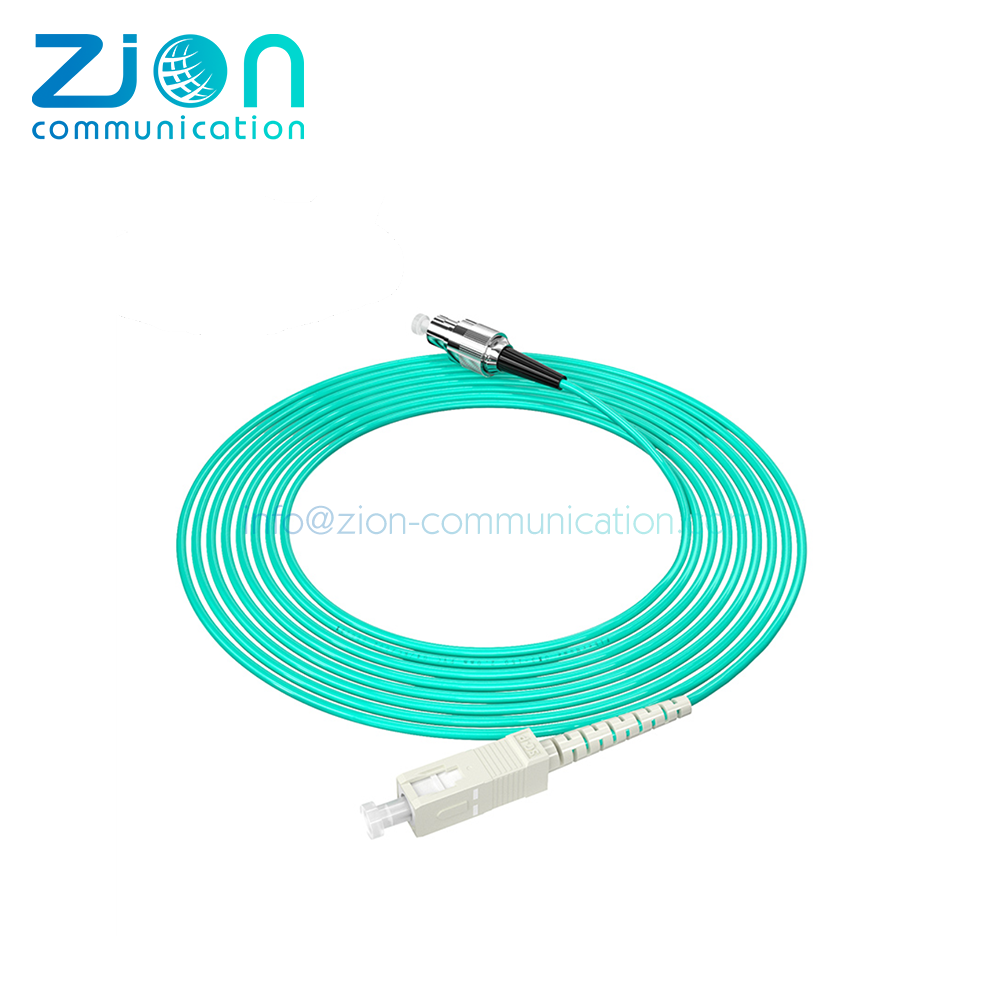

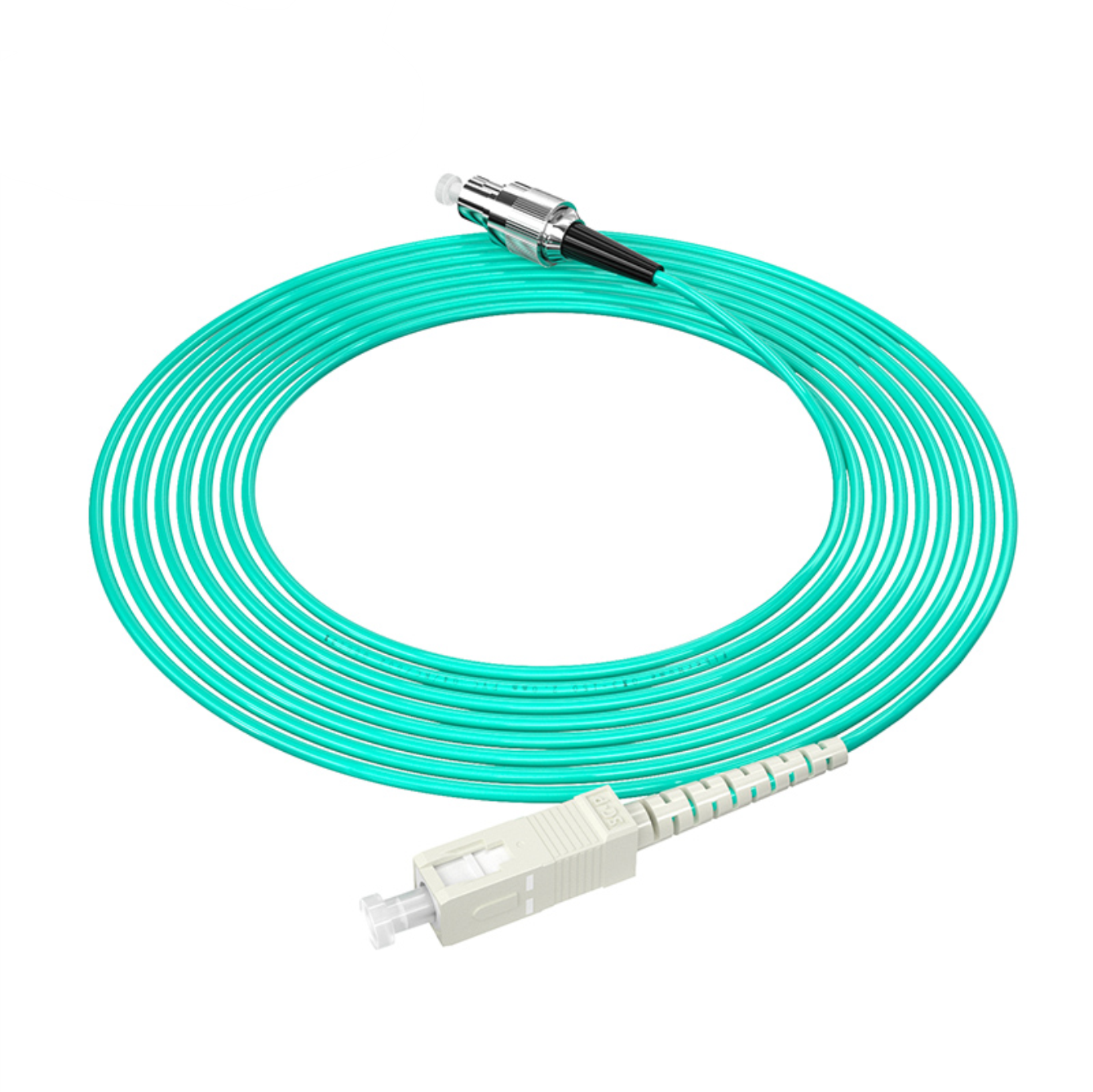

50/125 (OM2) Optical Fibre Patch Cords

Features:

✔  SC, LC, ST, FC connectors
✔  LSZH cable or PVC
✔  900μm tight buffer
✔  OM2 fibre conforms to ITU-T G.651.1, TIA/EIA 492AAAB, IEC60793-2-10
✔  Simplex and duplex assemblies
✔  Duplex assemblies available with clips (SC and LC)

✔  Armoured option also available

Application:

✔  For use in 1 Gb/s high speed LAN networks over a 550 m indicative link length at 850 nm wavelength using a laser launch

✔  High speed and legacy networks including Gigabit Ethernet, Fast Ethernet and Ethernet

✔  Data centres
✔  Premises cabling in data networks including backbone, riser and horizontal
✔  Supports video, data and voice services

Connector Specification:

Optical Performance

Singlemode

Conformance

IL Max/Master (Acceptance)

0.25 dB

IEC 61300-3-4

Ave/Master

0.15 dB

IEC 61300-3-4

Fibre Specification：

Characteristics

Attenuation (dB) / km

2.80 @ 850nm / 0.80 @ 1300nm

Bandwidth OFL (MHz x km)

500 @ 850nm / 500 @ 1300nm

Cable Specification:

Characteristics

Simplex

Duplex

Cable Material

LSZH

LSZH

Strength Member

Aramid

Aramid

Crush (N)

1000

1000

Operating Temperature (˚C)

-20 to 60

-20 to 60

Fire Specification

IEC 60332-1

Part Number Generator:

FC  FC  UPC  SX  OS1  1  1  YE  0
 ①     ②       ③       ④      ⑤     ⑥  ⑦   ⑧    ⑨

Connector
End A

Connector
End B

Polish
Type

Cable Type

Mode

Cable
Diameter

Jacket
Type

Jacket
Color

Length

SC
LC
ST
FC
D4
E2000
MU

SC
LC
ST
FC
D4
E2000
MU

UPC


APC

SX=Simplex
DX=Duplex
A=Armoured
W=Water-proff
B=Break-out
R=Rbbon
B=Bundle

OS1
OS2
OM1
OM2
OM3
OM4
OM5

1=0.9mm

2=2.0mm

3=3.0mm

1=PVC
2=LSZH
3=OFNP
4=OFNR
5=PE
6=TPU

YE=Yellow
BL=Blue
GN=Green
OR=Orange
GY=Grey
PU=Purple
AQ=Aqua

0=0.5m
1=1m
2=2m
3=3m
····

①

②

③

④

⑤

⑥

⑦

⑧

⑨
