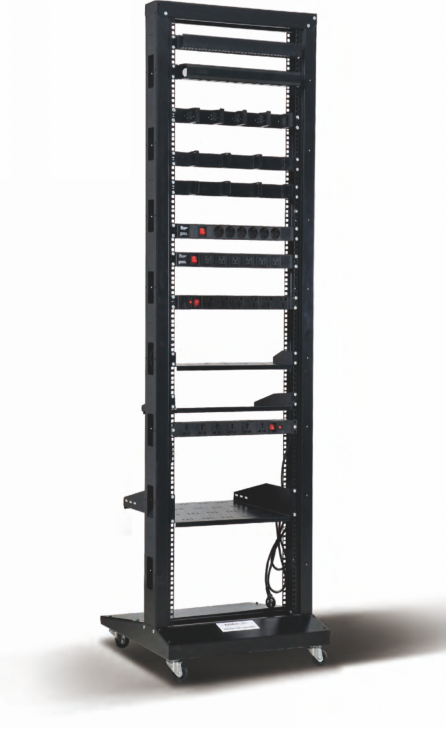

606 Open Racks

 Technical Data

  Materials:

 · SPCC Cold Rolled Steel;

 · Column: 1.5mm;

 · others: 2.0mm.

 Colour:

  · ZC605.■■■■ ■■0■■: RAL7035

  · ZC605.■■■■ ■■1■■: RAL9004

 Loading Capacity:

  · Static loading: 250KG.

 COMPLIANCE （Reference Standard）

 · Comply with ANSI/EIA RS-310-D

 · IEC60297-2

 · DIN41494;PART1; DIN41494;PART7.

 Main Part

S/N

Specification

Qty

Material

Surface Finish

Remark

1

Column

2

SPCC t1.5

Powder coated

·····

2

Plinth

2

SPCC t2.0

Powder coated

·····

3

Support Cross beam

2

SPCC t2.0

Powder coated

·····

4

2" heavy duty castor

4

·····

A

M6 screw & nuts

20

Steel

Color zinc

40pcs for over 33U

B

Trox tooling

1

Steel

Black

·····

Specification:

Part Number.

RU

 Width
(mm)

Depth(D)(mm)

Height(H)(mm)

Volume (CBM)

ZC606.6629.606OR

29

600

600

1422

1420*260*140

ZC606.6633.606OR

33

600

600

1600

1600*260*140

ZC606.6638.606OR

38

600

600

1822

1820*260*140

ZC606.6642.606OR

42

600

600

2000

2000*260*140

ZC606.6647.606OR

47

600

600

2222

2220*260*140
