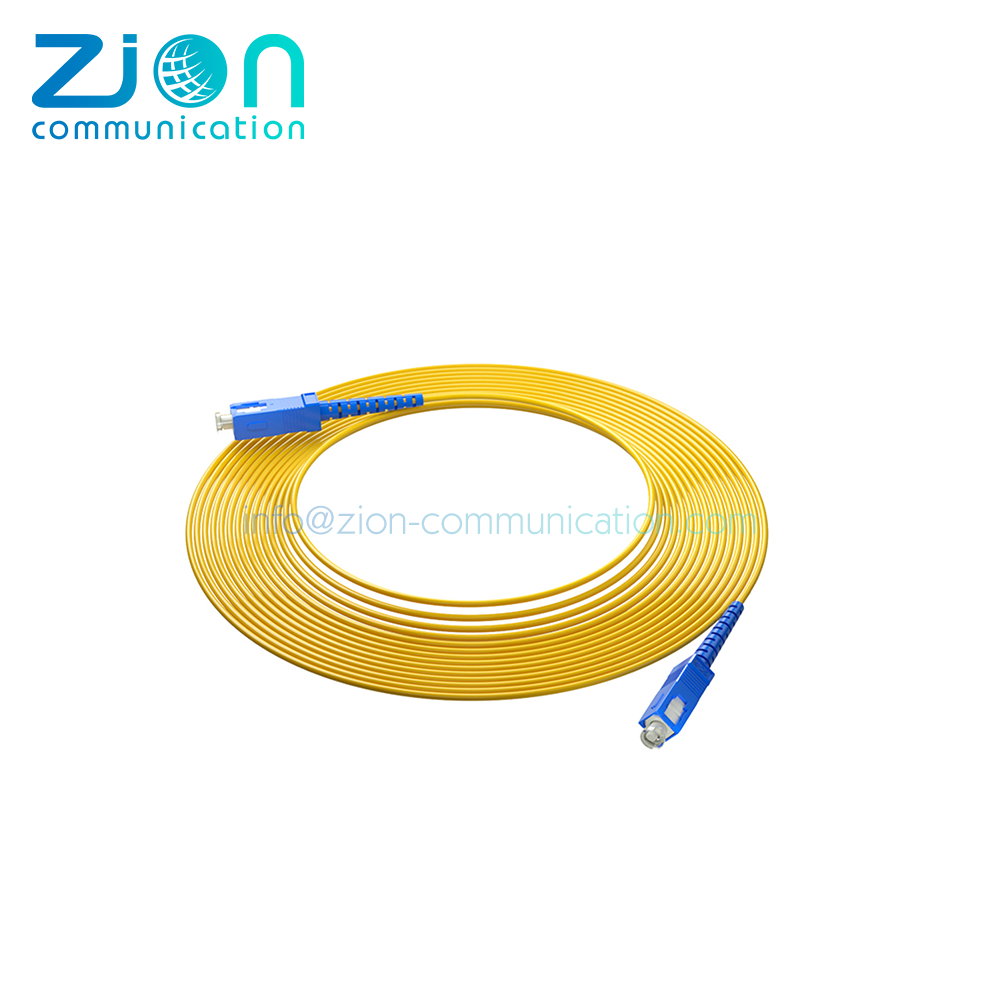

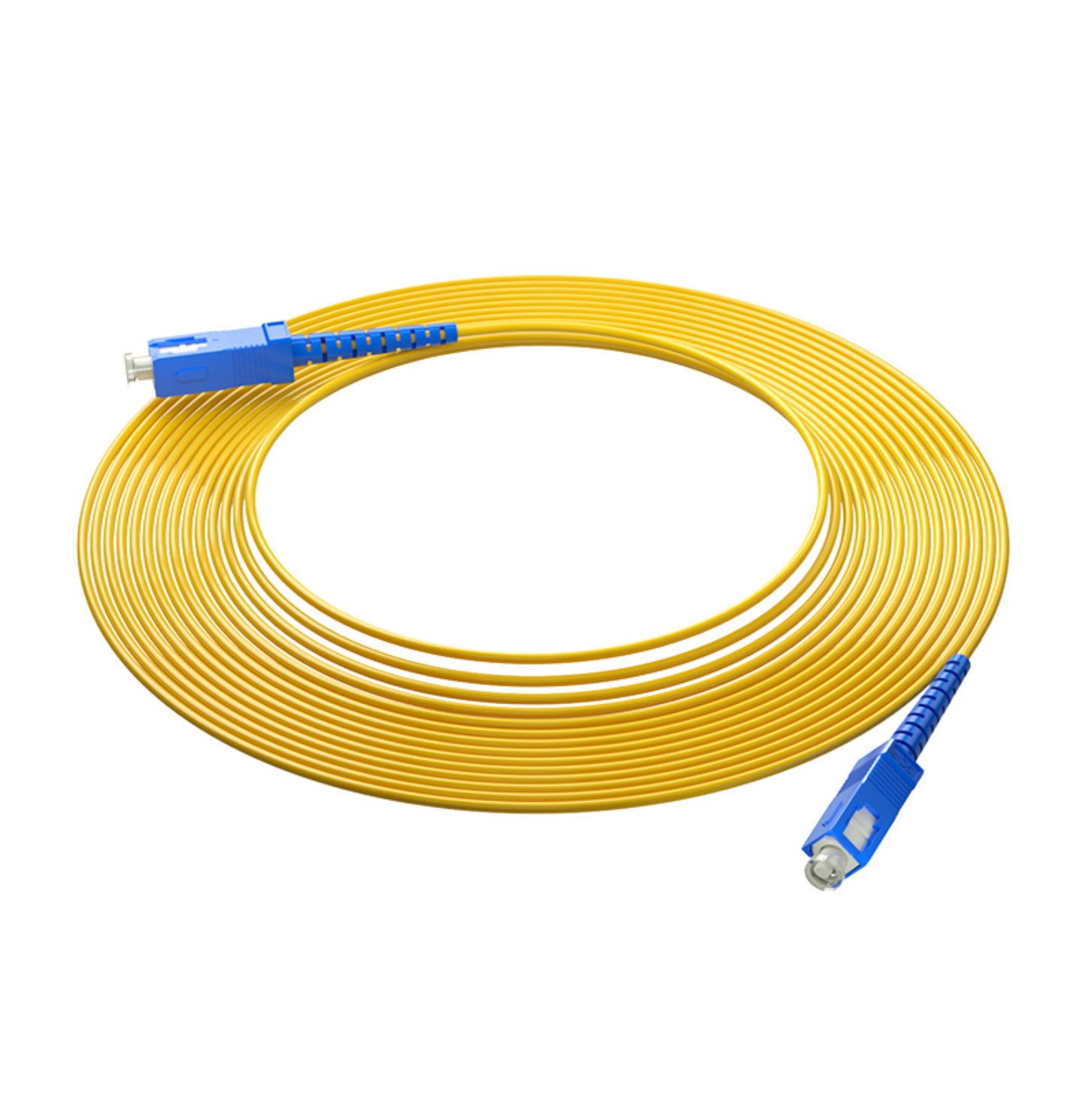

9/125 (OS1-OS2) Optical Fibre Patch Cords

Features:

✔  SC, LC, ST, FC, MU and E2000 connectors
✔  Low smoke zero halogen (LSZH) jacket in yellow colour
✔  900μm tight buffer
✔  OS1/OS2 fibre conforms to ITU-652.D, TIA/EIA 492 CAAA
✔  Simplex and duplex assemblies
✔  Duplex assemblies available with clips (SC and LC)
✔  Different connector performance range for specific application

✔  Armoured option also available

Application:

✔  CATV / VIDEO
✔  Passive Optical Network PON
✔  WDM / DWDM
✔  FTTH

✔  Data centres - Support high speed multi channel video, data and voice
✔  services in metropolitan and access networks
✔  ATM, SONET and WDM

Connector Specification:

Optical Performance

Singlemode

Conformance

IL Max/Master (Acceptance)

0.25 dB

IEC 61300-3-4

Ave/Master

0.18 dB

IEC 61300-3-4

Ave/Random

0.18 dB

IEC 61300-3-34

Return Loss UPC/APC

55/65 dB

IEC 61300-3-6

Fibre Specification：

Characteristics

Attenuation (dB) / km

0.38 @ 1310nm / 0.25 @ 1550nm

Chromatic Dispersion (ps/nm x km)

3.00 @ 1310nm / 18.0 @ 1550nm

Cable Specification:

Characteristics

Simplex

Duplex

Cable Material

LSZH

LSZH

Strength Member

Aramid

Aramid

Crush (N)

1000

1000

Operating Temperature (˚C)

-20 to 60

-20 to 60

Fire Specification

IEC 60332-1

Part Number Generator:

FC  FC  UPC  SX  OS1  1  1  YE  0
 ①     ②       ③       ④      ⑤     ⑥  ⑦   ⑧    ⑨

Connector
End A

Connector
End B

Polish
Type

Cable Type

Mode

Cable
Diameter

Jacket
Type

Jacket
Color

Length

SC
LC
ST
FC
D4
E2000
MU

SC
LC
ST
FC
D4
E2000
MU

UPC


APC

SX=Simplex
DX=Duplex
A=Armoured
W=Water-proff
B=Break-out
R=Rbbon
B=Bundle

OS1
OS2
OM1
OM2
OM3
OM4
OM5

1=0.9mm

2=2.0mm

3=3.0mm

1=PVC
2=LSZH
3=OFNP
4=OFNR
5=PE
6=TPU

YE=Yellow
BL=Blue
GN=Green
OR=Orange
GY=Grey
PU=Purple
AQ=Aqua

0=0.5m
1=1m
2=2m
3=3m
····
