CPRI
hellosignal

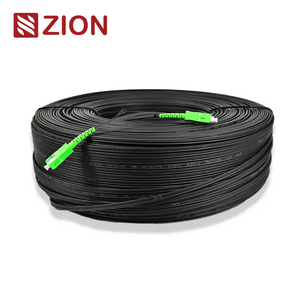

FTTH Drop Fiber Optic PatchCords
ISO9001
1km/Spool
Wooden Spool ，Φ280*280mm
100km
2-5 Days
NINGBO CHINA
30%TT as deposit,70%Balance before shipping.
Connector Type:
CPRI (Common Public Radio Interface)
Cable Type:

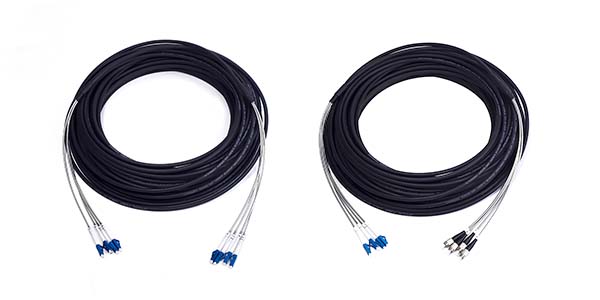

Duplex Fiber Patch Cable
Cable Construction:
Outdoor rated with strong materials to prevent damage from outdoor conditions.

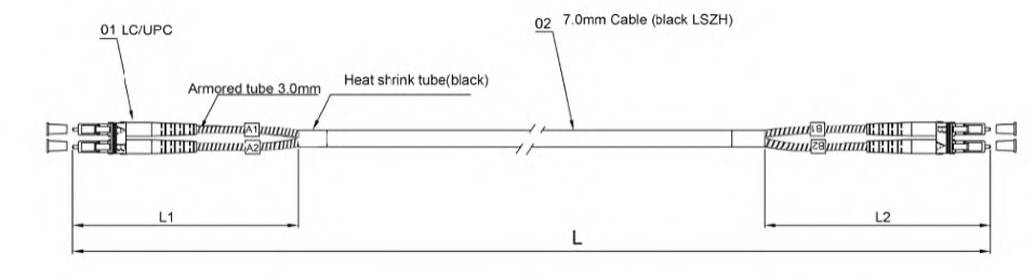

■ CPRI Patch Cable Parameters
Fiber Count: 2
Cable Dimensions:
Outer Diameter (OD): 7.0 mm
Cable Weight: 42 kg/km
Tensile Strength:
Long-Term Tensile (Dynamic): 200 N
Long-Term Tensile (Static): 400 N
Short-Term Tensile (Dynamic): 300 N§
Short-Term Tensile (Static): 1000 N
Temperature Range:
Operating Temperature: -20°C to +70°C
Long-Term Temperature (Dynamic): 20D§
Long-Term Temperature (Static): 10D
Note:
1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0/1.6 outer diameter;
3. D is outer diameter of the round cable;
Fiber to the Top of the Tower (FTTA): The usage is mainly in outdoor sites where the connection is between the base stations and the towers for mobile networks (3G, 4G, WiMax, etc.).
CPRI Standard: Specially tailored for the CPRI (Common Public Radio Interface) standard as recommended in state-of-the-art wireless communication systems.
Suitable for Wireless Base Stations: This portable device is capable of working with WCDMA, TD-SCDMA, WiMax, GSM, and other communication technologies.
Base Station Connectivity
Wireless Communication Systems
Fiber-Optic Distributed Antenna Systems (DAS)
FTTA (Fiber to the Top of the Tower) Deployments
Bulkhead Open for Fast Access to SFP·
Permits a simple transceiver movement through the bulkhead without a need to open the PRH (Plug-In Receptacle Housing) during maintenance.·
Firm Engagement with a Mechanical Feedback when the Industrial Connectors are Fully Mated
Guarantees a stable connection where the plug is in the socket, and you can feel that the two are correctly joined.
One Hand Plugging In
Time-saver by easy one-hand mating feature, to make the installation simple and convenient.·
Elimination of Tolerance in the Design
The plug is not on the same alignment as the Z-axis; however, this allows for a proper fit with no tolerances during mating.
Without Cable Twisting and Twisting
The design removes the cable buckling, preventing cable blocking, which would be detrimental for a reliable long-term connection.
Impact-Free Metal Die Cast Sample
The metal die cast bulkhead is a convenient and inexpensive option for multiple fiber optical applications.
On-Site Installable Form Version Offered
Provides the customers with the options of featuring it as a field-installable version, rendering it appropriate for a number of mounting sites.
Waterproof, Dustproof, and Rust-Proof
Developed for the harshest climates, the connector is designed to be waterproof, dust-proof, and corrosion-proof, which elevates the lifespan and reliability.
Excellent Mechanical and Climate Stain Resistance
Engineered to withstand any sort of mechanical and environmental impact, including wet conditions, UV rays, as well as extreme temperature changes.
Flame Resistant Properties
Corresponds with the existing flame retardants standards regulated by the authorities, indicating it to be fit for use in potentially high-risk places.
Jacket Passes the Mechanical Tests
The jacket meets the mechanical properties set forth by the industry, ensuring that the conduit is able to withstand physical damage.
Flexible, Water-Blocked, U.V. Resistant
The cable is made of a soft, flexible material that is UV resistant, and they are also convenient to lay, splice, and install, as well as having a great data transmission capacity.
Broad-Based Compatibility with the Market
Responses to the mixed requirements of the market allow all customs' needs to be met accordingly.
High Mechanical Strength Locking Device to Avoid Unintended Dismating
Delivers a quick and tight coupling with the bayonet lock, thus ensuring strong and speedy mating, which is immune to the unexpected disconnection.
High-Speed Data Transmission: Affiliates with high-band and low-latency transmission of communication, which is very important for real-time data processing in the telecom networks.
Compact and Flexible: Specially designed for easy installation in telecommunications towers and base stations and can be routed even in space-restricted areas.
Standard CPRI Interface: The standardization means an assurance of interoperability of the vast majority of telecom base station hardware.
