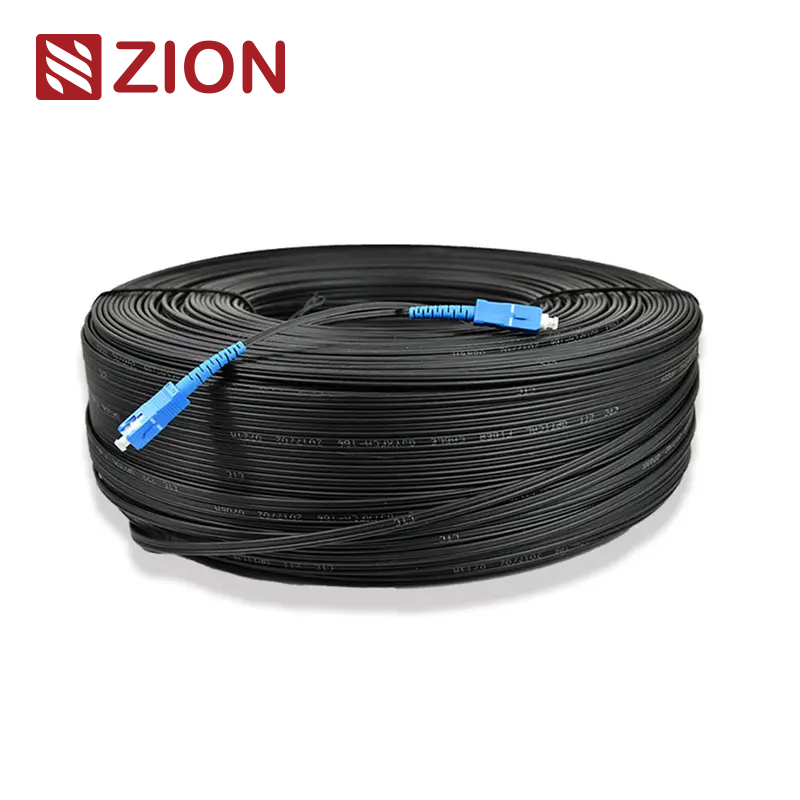

SC UPC Drop Fiber Optic Cable PatchCords SC to SC Simplex G.657.A1 or A2 Single Mode LSZH 2.0*5.0mm

  • SC UPC

  • hellosignal

  • FTTH Drop Fiber Optic PatchCords

  • ISO9001

  • 1km/Spool

  • Wooden Spool ,Φ280*280mm

  • 100km

  • 2-5 Days

  • NINGBO CHINA

  • 30%TT as deposit,70%Balance before shipping.

Availability:

Product Description


Drop Fiber Optic Cable PatchCords SC UPC to SC UPC Simplex
G.657.A1 or A2 Single Mode LSZH 2.0*5.0mm

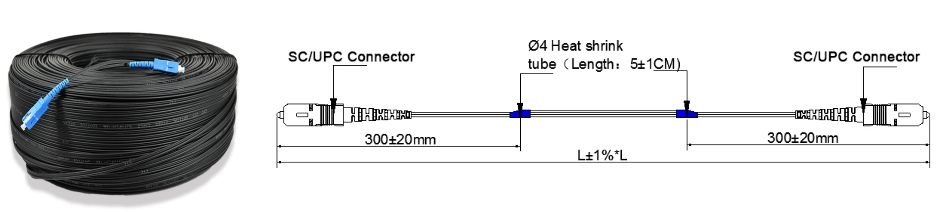

Drop Fiber Optic Cable Patch Cord SC UPC to SC UPC Simplex G.657.A1 or A2 Single Mode LSZH 2.0X5.0mm

Product Specification

Fiber Optic Cable

Fiber Type

Single-mode: OS2 (G.657.A1 / G.657.A2)

Multi-mode: OM1(62.5/125), OM2(50(125),
[(OM3, OM4) (50/125,Laser Optimization)]

Fiber Count

Simplex / Duplex

Cable Jacket

Main material: LSZH Flame Retardant

OD: 2.0*5.0mm

Jacket Color

Black:   SM: OS2 ( G.652.D /  G.657.A1 / G.657.A2)

White:   SM: OS2 ( G.657.A1 / G.657.A2)


Cable Length

40/50/60/80/100/120/150/180/200/250/300

Mechanical
Specification

Ferrule

Ceramic; (MTRJ: PS-Polyphenylene Sulphide)

Apex Offset

 50um

Fiber Height

± 100nm

Radius of Curvature

7mm R  25mm (Excluding MTRJ)

Repeatability

≤ 0.2dB 1,000 times mating cycles

Product Specification

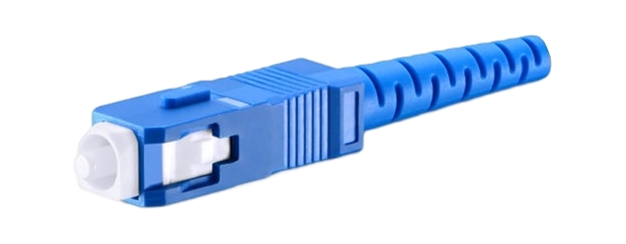

Connector

Connector Type

SC

 UPC

SC ( Subscriber Connector/Square Connector/Standard Connector)
Typical Application:
Telecom,GPON,EPON,GBIC










Product Specification










Parameter

SC UPC

SC APC

SM(OS2)G.652.D/G.657.A1/G.657.A2

Operating Wavelength(nm)

@1310  @1550

Insertion Loss (dB)

≤ 0.3

≤ 0.3

Return Loss (dB)

≥ 55

≥ 60

Repeatability (dB)

≤ 0.1

≤ 0.1

Interchangeability (dB)

≤ 0.2

≤ 0.2

Tensil Strength (N)

≥ 1000

≥ 1000

Operating Temperature (℃)

 -20 ~ +85

 -20 ~ +85

Storage Temperature (℃)

 -40 ~ +85

 -40 ~ +85










Mechanical and Physical of the cable


















1

Cable Separating Force

5~15 N,200mm from the separation port

2

Short Term Tensile Performance

600 N, fiber strain ≤0.4residual
additional attenuation≤0.03dB

Long Term Performance

300 N, fiber strain ≤0.2residual
additional attenuation≤0.03dB

3

Crush Resistance


Short Term Crush Resistance Strength

2200N/100mm

Long Term Crush Resistance Strength

1000N/100mm




























Zion Code

Description



OEM/ODM service for you

ZION Communication has rich expiriences in
producing OEM/ODM cases becaused of Profession R & D team.


factory

• Customized Logo

• Printing on Cable

• Label/PE bag/Carton design

• Different Color & Different Lengths Available
