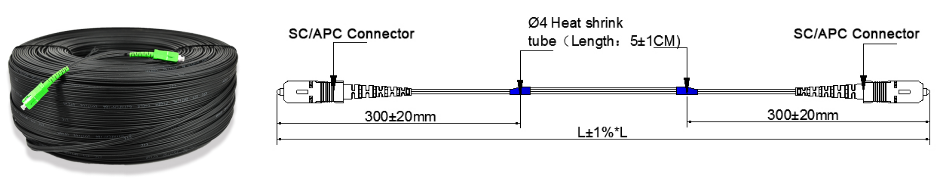

SC APC Drop Fiber Optic Cable PatchCords SC to SC Simplex G.657.A1 or A2 Single Mode LSZH 2.0*5.0mm

Drop Fiber Optic Cable PatchCords SC APC to SC APC Simplex
G.657.A1 or A2 Single Mode LSZH 2.0*5.0mm

■ Product Specification

Fiber Type:

· Single-mode:

o OS2 (Standard single-mode fiber)

o G.657.A1 / G.657.A2 (Bend-insensitive single-mode fiber)

· Multi-mode:

o OM1 (62.5/125 µm) (Standard multi-mode fiber)

o OM2 (50/125 µm) (Improved multi-mode fiber)

o OM3 / OM4 (50/125 µm) (Laser-optimized multi-mode fibers)

Fiber Count:

· Simplex: Single fiber strand

· Duplex: Two fiber strands

Cable Jacket:

· Main Material: LSZH (Low Smoke Zero Halogen), flame-retardant material

· Outer Diameter (OD): 2.0 x 5.0 mm

· Jacket Color:

o Black: For SM fibers (OS2, G.652.D, G.657.A1, G.657.A2)

o White: For SM fibers (OS2, G.657.A1, G.657.A2)

Cable Length:

· Available in various lengths: 40m, 50m, 60m, 80m, 100m, 120m, 150m, 180m, 200m, 250m, 300m

Mechanical Specifications:

Ferrule:

o Material: Ceramic (for standard connectors), PS-Polyphenylene Sulphide (for MTRJ connectors)

Apex Offset:

o < 50 µm (The offset between the fiber and connector endface)

Fiber Height:

o ± 100 nm (Tolerance of the fiber core height)

Radius of Curvature:

o 7 mm R < 25 mm (Minimum radius of curvature; excludes MTRJ connectors)

Repeatability:

o ≤ 0.2 dB (Attenuation loss after 1,000 mating cycles)

■ Product Specification

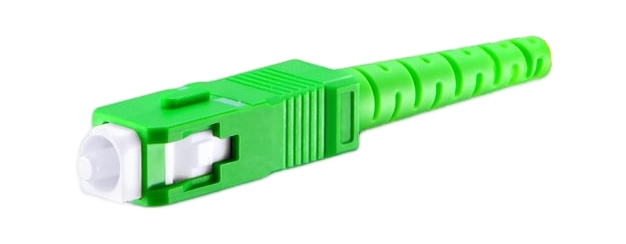

Connector Type：SC

SC ( Subscriber Connector/Square Connector/Standard Connector)

Typical Application:
Telecom,GPON,EPON,GBIC

■ Product Specification

Fiber Optic Connector Specifications:

SC UPC and SC APC (Single-mode: OS2, G.652.D, G.657.A1, G.657.A2)

Operating Wavelengths (nm):

o 1310 nm: For both SC UPC and SC APC

o 1550 nm: For both SC UPC and SC APC

Insertion Loss (dB):

o SC UPC: ≤ 0.3 dB

o SC APC: ≤ 0.3 dB

o This represents the loss of signal when the connector is mated with the fiber.

Return Loss (dB):

o SC UPC: ≥ 55 dB

o SC APC: ≥ 60 dB

o Return loss indicates the amount of reflected light (higher values are better for signal integrity).

Repeatability (dB):

o SC UPC: ≤ 0.1 dB

o SC APC: ≤ 0.1 dB

o This indicates how consistent the insertion loss is after repeated mating cycles.

Interchangeability (dB):

o SC UPC: ≤ 0.2 dB

o SC APC: ≤ 0.2 dB

o This value ensures that different connectors can be used interchangeably without significant loss.

Tensile Strength (N):

o SC UPC: ≥ 1000 N

o SC APC: ≥ 1000 N

o This indicates the maximum force that the connector can withstand without damage.

Operating Temperature (°C):

o SC UPC: -20°C to +85°C

o SC APC: -20°C to +85°C

o The range of temperatures at which the connector can operate reliably.

Storage Temperature (°C):

o SC UPC: -40°C to +85°C

o SC APC: -40°C to +85°C

o The temperature range for storing the connectors without affecting their performance.

Mechanical and Physical Specifications of the Cable:

Cable Separating Force:

o 5 ~ 15 N, measured 200 mm from the separation port.

o This is the force required to separate the connector from the cable.

Tensile Performance:

o Short Term Tensile Performance:

§ 600 N with fiber strain ≤ 0.4% residual.

§ Additional Attenuation ≤ 0.03 dB (indicating the minimal increase in signal loss when tension is applied).

o Long Term Performance:

§ 300 N with fiber strain ≤ 0.2% residual.

§ Additional Attenuation ≤ 0.03 dB.

Crush Resistance:

o Short Term Crush Resistance Strength:

§ 2200 N/100mm (This indicates the short-term crush resistance of the cable).

o Long Term Crush Resistance Strength:

§ 1000 N/100mm (This is the long-term crush resistance).
