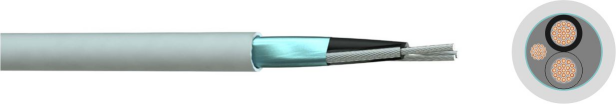

Circular Shielded Audio Cable (CFSTP161-LSF)

Circular Shielded Audio Cable (CFSTP161-LSF)

Application:

Fixed wiring of digital equipment and patch boards for professional audio applications.

Product Description:

Conductor Material

Tinned Copper, 16(19)awg

Pair Insulation Material

Polyethylene (PE)

Number of Pairs

1

Overall Screen

Aluminium Foil (100% Coverage)

DrainWire

Tinned Copper, 18(16)awg

Outer Sheath Material

Low Smoke and Fume (LSF)

Outer Sheath Colour

Grey

Core Identification

Clear/Black

Electrical Characteristics:

Nominal Conductor Resistance

< 16.8 Ω/km

Capacitance

Core to Core

65 pF/m± 30

Core to Screen

127 pF/m ± 40

Impedance

78 ± 30

Voltage Rating

450/750V

Test Voltage

2.5kV for 5 minutes

Physical Characteristics:

Overall Diameter

7.9 ± 0.3mm

Min. Bend Radius

10 x OD

Temperature Rating

-20°C to +70°C

Standards:

Flame Retardant

BS EN 60332-1-2

RoHS3 Compliant

Yes

CE Compliant

LVD (2014/35/EU), CPR (305/2011)

CPR Classification

Eca (EN50575:2014+A1:2016)
