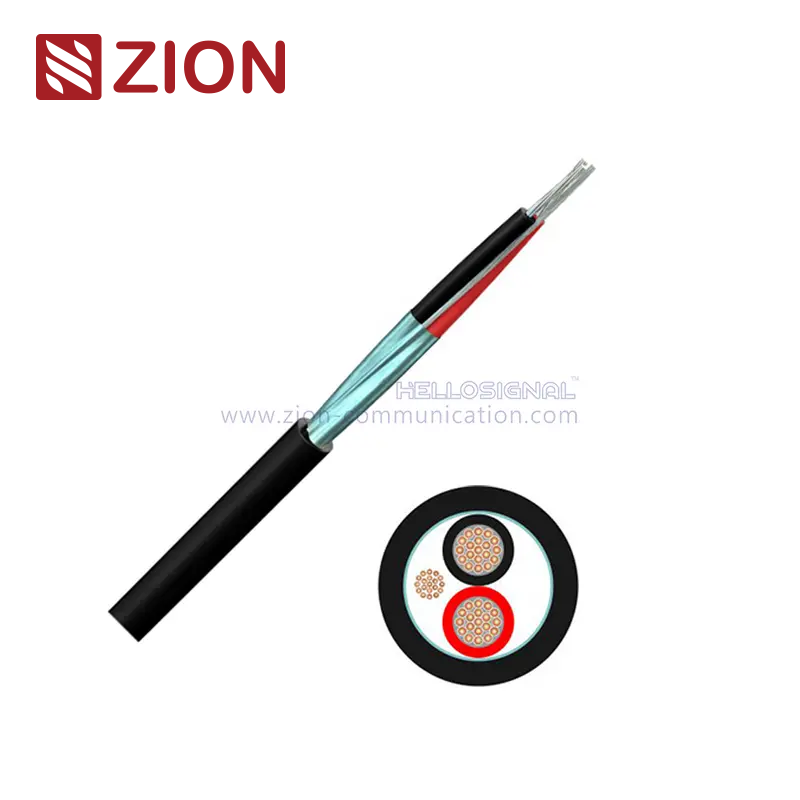

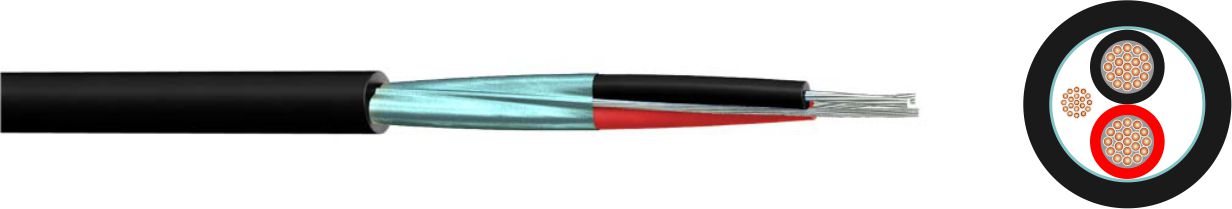

Circular Shielded Audio Cable (CFSTP241-LSHF)

Circular Shielded Audio Cable (CFSTP241-LSHF)

Application:

Fixed wiring of digital equipment and patch boards for professional audio applications.

Product Description:

Conductor Material

Tinned Copper

Number of Strands

7/0.2mm, 24awg

Insulation Material

Foamed Polyethylene (FPE)

Number of Pairs

1

DrainWire

Tinned Copper, 7/0.2mm

Overall Screen

Bonded Aluminium Foil (100% Coverage)

Outer Sheath Material

Low Smoke Halogen Free (LSHF)

Outer Sheath Colour

Black

Core Identification

Red, Black

Electrical Characteristics:

Nominal Conductor Resistance

< 86.2 Ω/km

Insulation Resistance

> 200 MΩ.M

Impedance

83 Ohm ± 30

Capacitance Core to Core

45 pF/m ± 20

Core to Screen

86 pF/m ± 25

Voltage Rating

300/500V

Test Voltage

2kV for 5 minutes

Physical Characteristics:

Overall Diameter

4.0 ± 0.2mm

Min. Bend Radius

10 x OD

Temperature Rating

-20°C to +70°C

Standards:

Flame Retardant

BS EN 60332-1-2

Low Smoke Generation

BS EN 61034-2

Halogen Gas Emission

BS EN 60754-1&2

RoHS3 Compliant

Yes

CE Compliant

LVD (2014/35/EU), CPR (305/2011)

CPR Classification

Eca (EN50575:2014+A1:2016)
