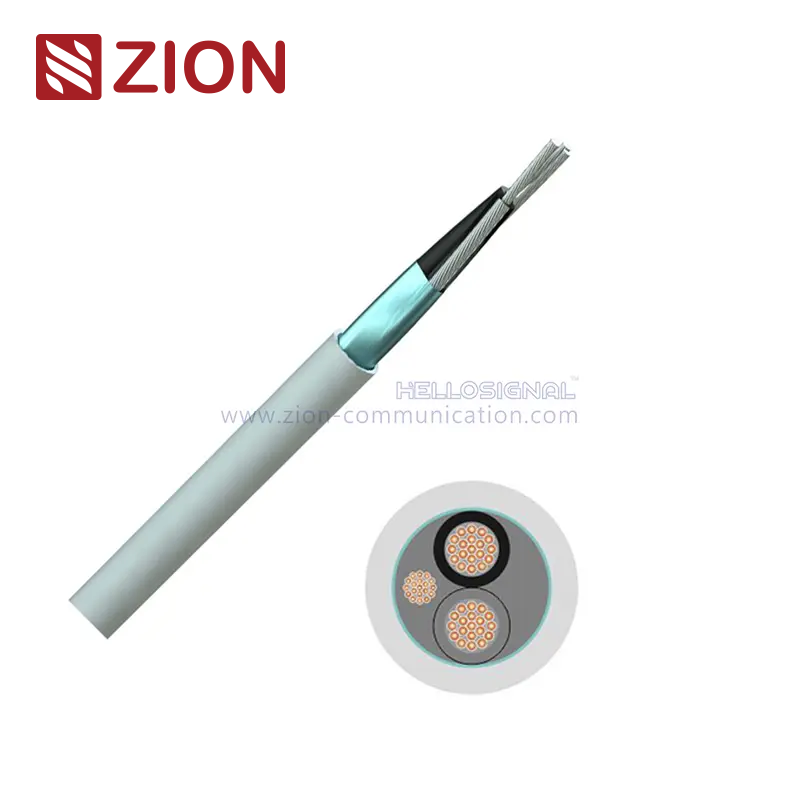

Circular Shielded Audio Cable (CFSTP201-LSF)

Circular Shielded Audio Cable (CFSTP201-LSF)

Application:

Fixed wiring of digital equipment and patch boards for professional audio applications.

Product Description:

Conductor Material

Tinned Copper, 22(7)awg

Pair Insulation Material

Polyethylene (PE)

Number of Pairs

1

Overall Screen

Aluminium Foil (100% Coverage)

DrainWire

Tinned Copper, 22(7)awg

Outer Sheath Material

Low Smoke and Fume (LSF)

Outer Sheath Colour

Grey

Core Identification

Clear/Black

Alternative to Belden

8762

Electrical Characteristics:

Nominal Conductor Resistance

< 33.7 Ω/km

Capacitance

Core to Core

75 pF/m± 25

Core to Screen

135 pF/m ± 25

Impedance

78 Ω ± 25

Voltage Rating

450/750V AppliestoCEmarkedFS C brandedstockonly

Test Voltage

2.5kV for 5 minutes

Physical Characteristics:

Overall Diameter

5.2 ± 0.2mm

Min. Bend Radius

10 x OD

Temperature Rating

-20°C to +70°C

Weight

35 kg/km

Standards:

Flame Retardant

BS EN 60332-1-2

RoHS3 Compliant

Yes

CE Compliant

LVD (2014/35/EU), CPR (305/2011)

CPR Classification

Eca (EN50575:2014+A1:2016)
