Quick Answer: How Is Control Cable Voltage Drop Calculated?
For a simplified two-wire DC control circuit, calculate the resistance of the complete outgoing and return path, then multiply that loop resistance by circuit current: Vdrop = I × Rloop. Subtract the drop and other series losses from the lowest expected supply voltage, and confirm that the actual load still receives at least its required operating voltage.
The result is only as reliable as its inputs. Use resistance data for the exact conductor, the real circuit length, the applicable conductor temperature, and the worst operating or inrush current. Include terminals, connectors, protective devices, shared returns, and power-supply tolerance where they affect the circuit.
Basic Two-Wire DC Voltage Drop Formula
When resistance is stated per unit length for one conductor, first calculate the complete loop resistance. For a simple two-wire circuit with equal outgoing and return conductors:
| Variable | Meaning | Required source |
|---|---|---|
| I | Circuit current in amperes. | Equipment operating, startup, or inrush data for the condition being checked. |
| Rconductor | Resistance per unit length for one selected conductor. | Exact cable data at the stated reference condition. |
| One-way length | Physical route from source to load. | Installed route drawing or measured cable path. |
| Rloop | Total resistance in the current path. | Calculated from the actual outgoing and return arrangement. |
AC control circuits can require conductor impedance, power factor, frequency, and circuit configuration rather than DC resistance alone. Use the applicable system calculation method and equipment requirements for those circuits.
Worked 24 V DC Control-Circuit Example
Consider an illustrative two-wire circuit with a nominal 24 V supply, a 0.5 A load, a 50 m one-way route, and verified conductor resistance of 18 Ω/km per conductor at its stated reference condition.
| Step | Calculation | Result |
|---|---|---|
| 1. Loop length | 50 m × 2 | 100 m = 0.1 km |
| 2. Loop resistance | 18 Ω/km × 0.1 km | 1.8 Ω |
| 3. Cable voltage drop | 0.5 A × 1.8 Ω | 0.9 V |
| 4. Load voltage before other losses | 24 V − 0.9 V | 23.1 V |
Interpretation: 23.1 V is not the final approval value. The engineer must still consider the supply's low tolerance, conductor temperature, startup current, terminals, connectors, protective devices, and the load's minimum operating voltage.
Use Worst-Case Inputs, Not Nominal Values Alone
A calculation at room temperature and steady-state current can miss the condition that actually causes a relay, solenoid, actuator, or remote I/O device to drop out or fail to pull in.
Copper resistance increases as conductor temperature rises, so the stated resistance condition matters.
A nominal 24 V supply can deliver less voltage at the low end of its allowed operating range.
Startup, pull-in, or inrush current can cause a larger momentary drop than normal holding current.
Connection resistance also accumulates across terminal blocks, plugs, fuse holders, relays, and protective devices. Loose, contaminated, or corroded connections can add further loss and may make a field measurement worse than the cable-only calculation.
Check Solenoids, Shared Returns, and Multiple Loads
Many control circuits are more complex than one isolated load. Several devices may share a return conductor, operate at the same time, or draw a higher current during pull-in. The common section must be evaluated using the current that actually flows through it.
- Use the operating sequence to identify simultaneous loads and the highest credible shared-return current.
- Check pull-in or startup voltage at the device, not only holding current after operation begins.
- Separate the drop in common conductors from the drop in each branch so one device's operation does not hide another branch problem.
- Review grounding and return arrangements before automatically doubling length; the calculation must follow the real current path.
- Do not parallel spare cores without an approved design covering current sharing, protection, termination, and identification.
Select Conductor Size From Electrical and Mechanical Requirements
Increasing conductor cross-sectional area usually lowers resistance and voltage drop, but conductor size cannot be selected from voltage drop alone. Current capacity, fault protection, terminal fit, cable diameter, flexibility, movement, shielding, jacket exposure, and applicable installation requirements must also be satisfied.
| Selection factor | Question to resolve |
|---|---|
| Exact resistance | What maximum conductor resistance is specified for the selected cable and size? |
| Load and duty | What are the normal, startup, inrush, and simultaneous currents? |
| Termination | Do the device, connector, and terminal accept the selected conductor and ferrule arrangement? |
| Mechanical use | Is the cable fixed, occasionally flexed, continuously moving, or exposed to abrasion and pulling force? |
| EMC and environment | Are shielding, oil resistance, temperature, UV, chemical, or other jacket requirements present? |
ZION's Flex Control Cable category and Flex Control Cable / Data Cable product list provide starting points for cable-family review. Use the exact model and size data to confirm resistance, diameter, movement limits, materials, and documentation.

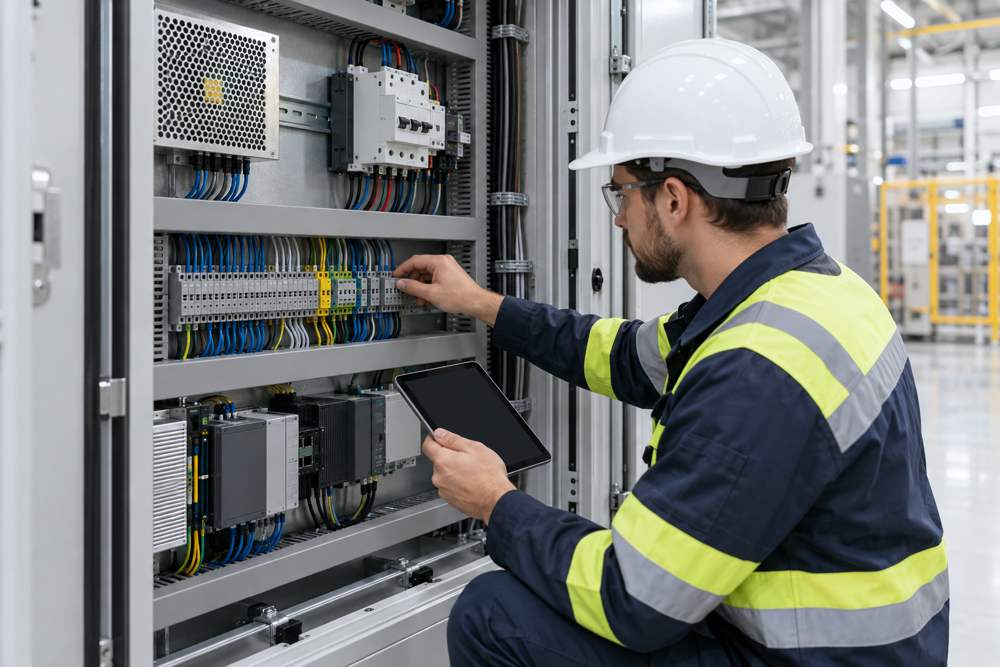

Verify Voltage at the Actual Load and Inspect the Circuit
Field verification should compare the design calculation with the installed circuit under a representative operating condition. Measure safely using the project's approved procedure and suitable instruments.
- Confirm the supply voltage at the source under the relevant load condition.
- Measure voltage at the actual device terminals while the device is operating or starting as required.
- Inspect terminal torque, connector condition, fuse holders, relays, and protective devices.
- Confirm installed route length, conductor size, shared returns, and any field modifications.
- Compare measured drop with the calculated cable and connection losses.
- Document the operating state, temperature, measured locations, and corrective action.
Common Voltage-Drop Calculation Mistakes
| Common mistake | Why it changes the result | Corrective action |
|---|---|---|
| Using one-way length as total circuit length | The return-path resistance is omitted in a simple two-wire loop. | Model the complete current path and include every conductor section carrying the load current. |
| Using nominal conductor area alone | Actual resistance depends on the exact conductor and its specified condition. | Use verified resistance data for the selected cable and size. |
| Checking only holding current | Startup or solenoid pull-in may create the lowest device voltage. | Calculate the relevant steady and transient operating conditions. |
| Ignoring temperature and connections | Warm copper and series contacts increase total circuit resistance. | Include applicable temperature and realistic terminal, connector, and protective-device losses. |
| Accepting a percentage without checking the load | The equipment minimum voltage is the functional limit that matters. | Calculate the worst-case voltage at the actual device terminals. |
Information Needed for Cable Selection and Voltage-Drop Review
A complete circuit schedule lets the supplier identify a cable candidate while the controls engineer verifies the circuit and protection design.
- Application, circuit function, and connected device model
- Nominal supply voltage and allowed supply tolerance
- Minimum operating or pull-in voltage at the load
- Normal, startup, inrush, and simultaneous current
- One-way route length and complete current-return arrangement
- Core or pair count and proposed conductor size
- Maximum conductor resistance and reference temperature
- Terminals, connectors, relays, fuses, and protective devices
- Ambient and conductor temperature assumptions
- Shield, jacket, movement, bend, standards, quantity, and destination
Include a circuit drawing, I/O schedule, route length, load datasheet, and existing cable data when available. For machine-side sensor or actuator circuits, confirm the connector and device requirements before reviewing the Sensor & Actuator Cables range. The broader Control Cable product category is the starting point for general cable-family selection.
Frequently Asked Questions
Should I always double the cable length for voltage-drop calculations?
For a simple two-wire circuit, include the complete outgoing and return path. Different grounding, shared-return, multicore, or AC arrangements require analysis of the actual circuit.
Can I fix voltage drop by using spare cores in parallel?
Only use parallel cores as part of an approved design that addresses current sharing, protection, termination, identification, and applicable installation requirements.
Should I use nominal conductor area or datasheet resistance?
Use the verified conductor resistance for the exact cable and account for the applicable conductor temperature. Nominal cross-sectional area alone is not the final resistance value.
What voltage should be compared with the device minimum?
Compare the worst-case voltage available at the actual load after cable, terminal, connector, protective-device, supply-tolerance, and operating-current effects are considered.
