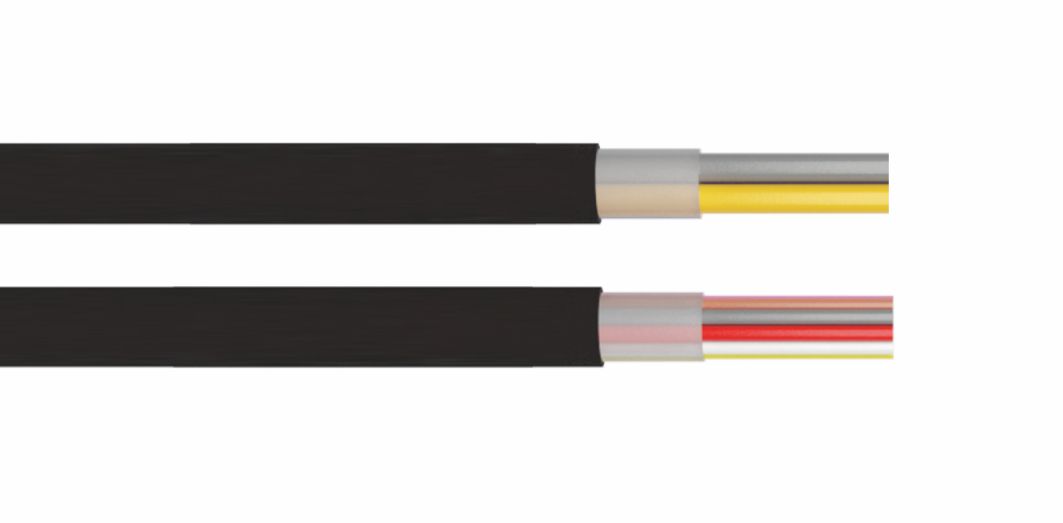

EPFU Enhanced Performance Fibre Units Air-Blown Micro Optical Fiber Cable

EPFU
Enhanced Performance Fibre Units Air-Blown Micro Optical Fiber Cable For FTTx Network FTTH

Introduction:

Optical fibers and filler elements are placed in parallel in the photosensitive resin to form the cable core. Finally, a low-friction material is extruded outside the core to form an outer sheath, Designed with special grooves to advance blowing distance and can be used to lay the optical cable using air blowing equipment.

Features:

● 2、4、6、8 and 12 fibres options.  G657A2 Bending insensitive fibers.
● Stable structure, good mechanical and temperature performance.
● Designed with special grooves to advance blowing distance.
● Lightweight and proper stiffness , repeat installation.
● Designed with no gel, easy stripping and handling.
● Better costs advantage compared to traditional product.
● Complete accessories, less manpower, lower installation time.

Performance Comparison of Air-blown Micro Cables:

Category

Characteristics

Blowing effect

Application

Enhanced Performance Fibre Unit
(EPFU)

1.Small size                                                           2.Light Weight
3. Good Bending performance
4. Suitable Indoor installation

3Stars***

FTTH

Uni-Tube air-blown micro cable
(GCYFXTY)

1.Small size                                              2.Light Weight
3.Good tensile and crush resistance

4Stars****

Power system
Lighting-prone areas

Stranded Loose Tube air-blown micro cable
(GCYFY)

1.High fibre density                                        2.High duct utilization
3.Much less initialvestment

5Stars*****

FTTH
Metropolitan area
Access networks

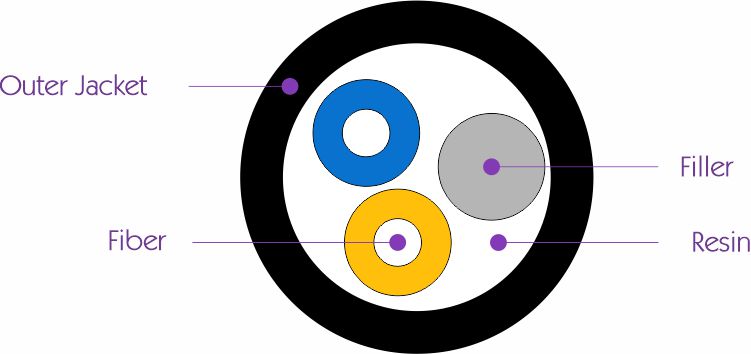

Cross Section:

Technical Characteristics:

Type

Fiber count

Diameter
mm

Weight
(kg/km)

Tensile Strength
Long/Short(N)

Crush Resistance
short(N/100mm)

EPFU-02 G657A2

2

1.15±0.05

1.15±0.05

0.15G/0.5G

100

EPFU-04 G657A2

4

1.15±0.05

1.15±0.05

0.15G/0.5G

100

EPFU-06 G657A2

6

1.15±0.05

1.15±0.05

0.15G/0.5G

100

EPFU-08 G657A2

8

1.15±0.05

1.15±0.05

0.15G/0.5G

100

EPFU-12 G657A2

12

1.15±0.05

1.15±0.05

0.15G/0.5G

100

  Note: G is the weight of optical cable 1kilometer

Blowing Characteristics:

Fibre Count

2

4

6

8

12

Duct diameter

5.0/3.5 mm

5.0/3.5 mm

5.0/3.5 mm

5.0/3.5 mm

5.0/3.5 mm

Blowing pressure

8bar/10bar

8bar/10bar

8bar/10bar

8bar/10bar

8bar/10bar

Blowing distance

500m/1000m

500m/1000m

500m/1000m

500m/1000m

500m/800m

Blowing time

15min/30min

15min/30min

15min/30min

15min/30min

15min/30min

Environmental Characteristics:

  Transport/storage temperature: -40℃~70℃

Applications:

The cable can be used as the indoor drop cable in FTTH networks and can be laid by air blowing
 with a handheld device,to connect the family multimedia information boxes with the access point for subscribers.

Delivery Length:

 Standard length:2000m;Other length availabe
