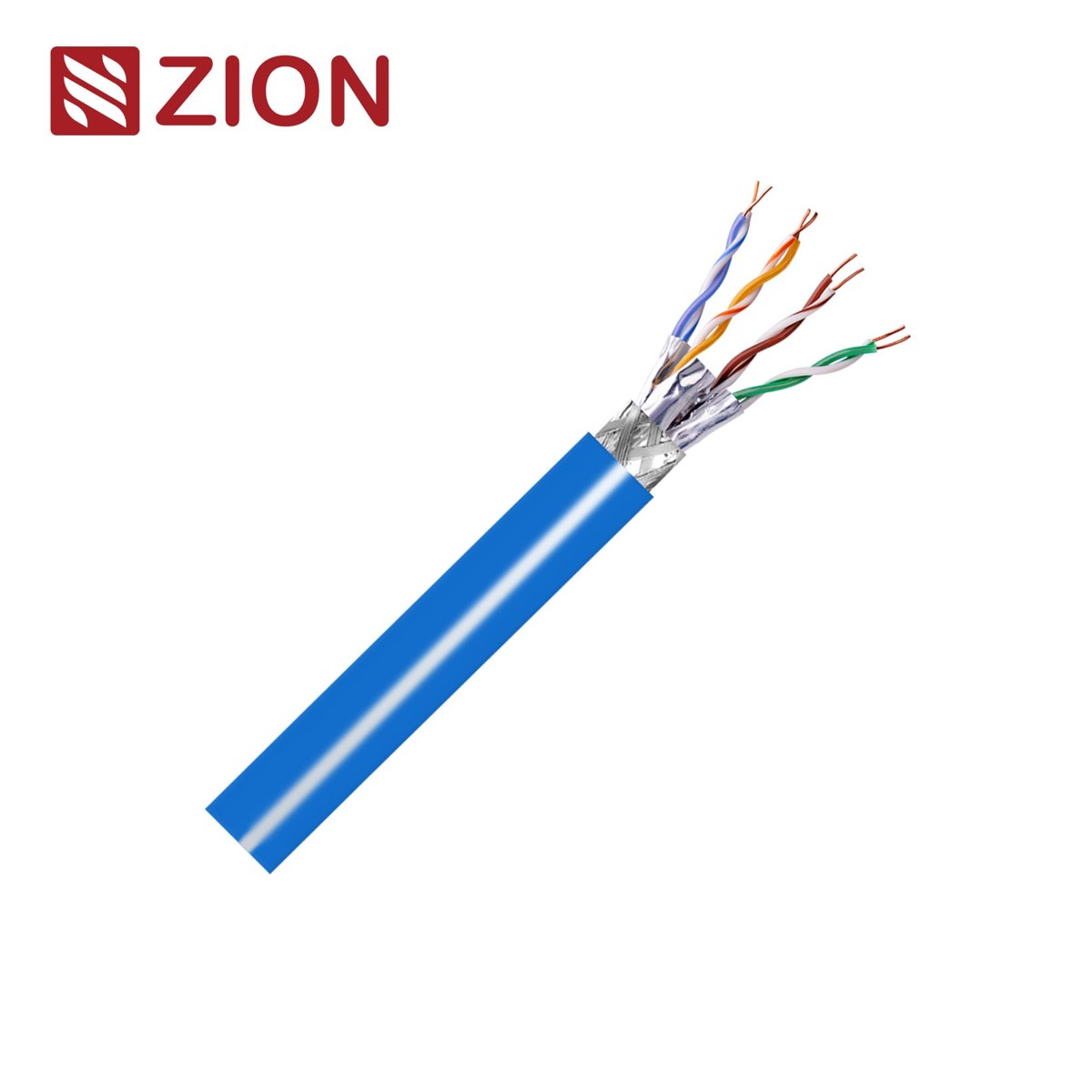

Zion Communication presents this premium Category 6A S/FTP Ethernet cable, engineered for high-bandwidth networking applications up to 10Gbps.
Available in 500m drums - Contact Zion Communication for bulk pricing and custom lengths.

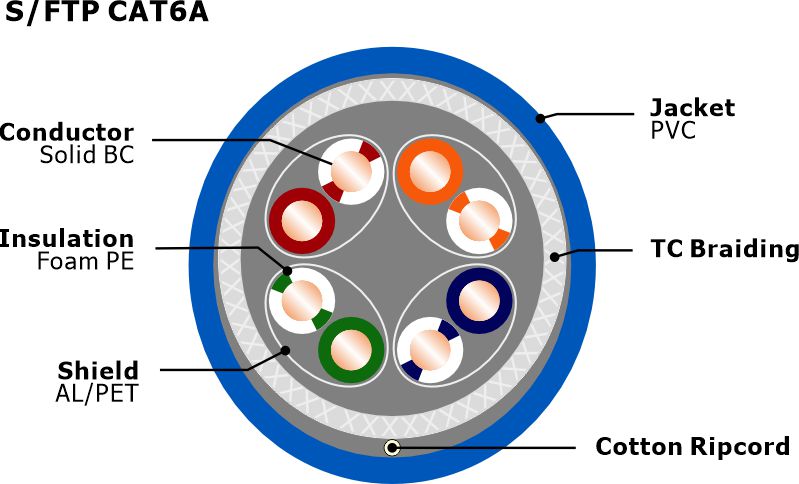

4 shielded twisted pairs (S/FTP) with individual AL/Mylar foil shielding
23AWG solid bare copper conductors for superior signal integrity
Double-shielded design (foil + tinned copper braid) provides excellent EMI/RFI protection
PVC jacket with VW-1 flame resistance rating
500MHz bandwidth supports 10GBASE-T up to 100 meters
RoHS compliant and meets IEC 61156-5 standards
Conductor: 7×0.23mm stranded bare copper (23AWG)
Insulation: Foam-PE
Insulation OD: 1.55±0.05mm
Pair colors:
Pair 1: White/Blue
Pair 2: White/Orange
Pair 3: White/Green
Pair 4: White/Brown
Individual pair shield: AL/Mylar
Overall shield: Tinned copper braid (≥85% coverage)
Jacket: PVC
Jacket color: Green (similar to RAL6018)
Jacket thickness: Approx. 0.65mm
Cable OD: 8.70±0.30mm
Characteristic | Specification |
Conductor resistance | ≤93.8Ω/km |
Resistance unbalance | ≤2.0% (within pair)<br>≤5.0% (between pairs) |
Dielectric strength | DC 1.0kV for 1 min |
Insulation resistance | ≥5000MΩ·km |
Capacitance unbalance | ≤1600pF/km at 800Hz or 1000Hz |
Transfer impedance | Grade 1 (IEC 61156-5) |
Coupling attenuation | Type lb (IEC 61156-5) |
Frequency (MHz) | Attenuation (dB/100m) Max | Return Loss (dB) Min | NEXT (dB) Min | PS NEXT (dB) Min | ACR-F (dB) Min | PS ACR-F (dB) Min |
1 | 2.1 | 20 | 75 | 72.3 | 68 | 65 |
4 | 3.8 | 23 | 66.3 | 63.3 | 56 | 53 |
8 | 5.3 | 24.5 | 61.8 | 58.8 | 49.9 | 46.9 |
10 | 5.9 | 25 | 60.3 | 57.3 | 48 | 45 |
16 | 7.5 | 25 | 57.2 | 54.2 | 43.9 | 40.9 |
20 | 8.4 | 25 | 55.8 | 52.8 | 42 | 39 |
25 | 9.4 | 24.3 | 54.3 | 51.3 | 40 | 37 |
31.25 | 10.5 | 23.6 | 52.9 | 49.9 | 38.1 | 35.1 |
62.5 | 15 | 21.5 | 48.4 | 45.4 | 32.1 | 29.1 |
100 | 19.1 | 20.1 | 45.3 | 42.3 | 28 | 25 |
200 | 27.6 | 18 | 40.8 | 37.8 | 22 | 19 |
250 | 31.1 | 17.3 | 39.3 | 36.3 | 20 | 17 |
300 | 34.3 | 17.3 | 38.1 | 35.1 | 18.5 | 15.5 |
400 | 40.1 | 17.3 | 36.3 | 33.3 | 16 | 13 |
500 | 45.3 | 17.3 | 34.8 | 31.8 | 14 | 11 |
Characteristic | Specification |
Operating temperature | -40 to +80°C (fixed installation) |
Installation temperature | -20 to +60°C |
Minimum bending radius | 5×OD (fixed installation) |
Rated voltage | 30V |
Oil resistance | IRM 902, 70°C×4h (EN 50290-2-22) |
Flame resistance | VW-1 |
Environmental compliance | Meets RoHS requirements |
