F/UTP 23 AWG UTP CAT 6 with 0.52-0.58mm Copper or CCA 4 pairs conductor network ethernet Category 6 cable 305m/Pull Box

Share to:

F/UTP 23 AWG UTP CAT 6 with 0.52-0.58mm Copper or CCA 4 pairs conductor network ethernet Category 6 cable 305m/Pull Box

Model:
CAT6
Brand:
N/M
Code:
N/M
Categories:
LAN CABLE
Impedance:
23AWG Conductor
Certificates:
ISO9001
Length:
305m/Pull Box
Packing:
Pull Spool ，37*37*30CM
MOQ:
30.5km
Delivery time:
5-25 Days
Port of Loading:
NINGBO CHINA
Term of payment:
30%TT as deposit,70%Balance before shipping.

Availability:



Inquire Add to Basket

Product Description

Description

A Cat 6 cable is used mainly for computer networks reaching a Gb, 1000 Mbps or one Gbps of data transfer speed (DTR) or higher. Characteristics are as follows:

Consists of four pairs of copper wires, which are all utilized for data transfer
Provides bandwidth of 250 MHz, speed up to 10 Gbps and may be stretched to 100 meters in length
Provides more enhanced crosstalk and attenuation protection than its previous twisted pair cable versions.

The Cat 6 cable is supported by Ethernet networks, including 10BaseT, 100Base-TX, 1000 Base-T and 10 GBase-T.

Maximum length

When used for 10/100/1000BASE-T, the maximum allowed length of a Cat 6 cable is up to 100 meters (328 ft). This consists of 90 meters (295 ft) of solid "horizontal" cabling between the patch panel and the wall jack, plus 5 meters (16 ft) of stranded patch cable between each jack and the attached device. For 10GBASE-T, an unshielded Cat 6 cable should not exceed 55 meters.

Category 6 cable, commonly called Cat 6, is a standardized twisted pair cable for Ethernet and other network physical layers that is backward compatible with the Category 5/5e and Category 3 cable standards.

Compared with Cat 5 and Cat 5e, Cat 6 features more stringent specifications for crosstalk and system noise. The cable standard also specifies performance of up to 250 MHz compared to 100 MHz for Cat 5 and Cat 5e.

Whereas Category 6 cable has a reduced maximum length of 55 meters when used for 10GBASE-T, Category 6A cable (or Augmented Category 6) is characterized to 500 MHz. It has improved alien crosstalk characteristics, allowing 10GBASE-T to be run for the same 100-meter maximum distance as previous Ethernet variants.

Conductor Material

BC: Bare Copper
CCA: Copper Clad Aluminum

Jacket Material

PVC/LSZH/PE

CAT 6 TEST REPORTS 250MHz

Frequency MHz	RL ≥dB	Attenuation ≤dB/100m	Next ≥dB/100m	Phase Delay ns/100m	PS Next ≥dB/100m	Elfext ≥dB/100m	PS Elfext ≥dB/100m
1	20	2.03	74.3	570	72.3	67.8	64.8
4	23	3.78	65.3	552	63.3	55.8	52.8
8	24.5	5.32	60.8	546.73	58.8	49.7	46.7
10	25	5.95	59.3	545.38	57.3	47.8	44.8
16	25	7.55	56.2	543	54.2	43.7	40.7
20	25	8.47	54.8	542	52.8	41.8	38.8
25	24.3	9.51	53.3	541.2	51.3	39.8	36.8
31.25	23.6	10.67	51.9	540.44	49.9	37.9	34.9
62.5	21.5	15.38	47.7	538.55	45.4	31.9	28.9
100	20.1	19.8	44.3	537.6	42.3	27.8	24.8
200	18	28.98	39.8	536.54	37.8	21.8	18.8
250	17.3	32.85	38.3	536.27	36.3	19.8	16.8
*350	16.3	39.8	36.1	535.92	34.1	16.4	13.9
*400	15.9	43	35.3	535.8	33.7	15.7	12.7
*450	15.5	46.3	34.5	535.7	32.5	14.7	11.7
*500	15.2	48.9	33.8	535.6	31.8	13.5	10.8
*550	14.9	51.8	33.2	535.54	31.2	12.9	9.9

UTP CAT6

U/UTP CAT6 4PR 23AWG ethernet cable

Conductor:			23 AWG Solid Bare Copper
Pairs:			4 Pairs
Insulation:			1.02 mm HDPE
Insulation Colors:			Blue-White/Blue,Orange-White/Orange
			Green-White/Green,Brown-White/Brown
Filler:			Cross Filler
Rip Cord:			Cotton
Out Jacket:			6.4±0.2 mm PVC/LSZH/PE

FTP CAT6

F/UTP CAT6 4PR 23AWG ethernet cable

Conductor:			23 AWG Solid Bare Copper
Pairs:			4 Pairs
Insulation:			1.14 mm HDPE
Insulation Colors:			Blue-White/Blue,Orange-White/Orange
			Green-White/Green,Brown-White/Brown
Filler:			Cross Filler
Shield:			PET
Drain Wire:			0.40±0.005mm TC
Overall Shield:			Al/PET Foil,Foil face out
Rip Cord:			Cotton
Out Jacket:			7.6±0.2 mm PVC/LSZH/PE

Factory Common production specifications:（PAST 90m Fluke TEST）

Conductor: 0.52mm|0.54mm|0.56mm|0.57mm|0.574mm|0.58mm

Insulation:0.98mm|1.02mm|1.02mm|1.12mm

Diameter:

6.3mm(U/UTP)

6.7mm(F/UTP)|7.0mm|7.4mm

7.5mm(SF/UTP)|7.8mm

6.2*13mm(U/UTP Duplex)

7.0*14.5mm(F/UTPDuplex)

6.3*2.5mm(U/UTP Self Support)

AWG wire diameter current comparison table

American standard	Metric Units	Imperial Units	Cross-sectional	Resistance	Normal current	Maximum urrent
AWG	mm	inch	mm²	W/km	A	A
4/0	11.68	0.46	107.22	0.17	423.2	482.566
3/0	10.4	0.4096	85.01	0.21	335.544	382.614
2/0	9.27	0.3648	67.43	0.26	266.158	303.495
1/0	8.25	0.3249	53.49	0.33	211.12	240.736
1	7.35	0.2893	42.41	0.42	167.389	190.87
2	6.54	0.2576	33.62	0.53	132.716	151.333
3	5.83	0.2294	26.67	0.66	105.249	120.013
4	5.19	0.2043	21.15	0.84	83.477	95.187
5	4.62	0.1819	16.77	1.06	66.175	75.458
6	4.11	0.162	13.3	1.33	52.488	59.851
7	3.67	0.1443	10.55	1.68	41.645	47.487
8	3.26	0.1285	8.37	2.11	33.025	37.657
9	2.91	0.1144	6.63	2.67	26.175	29.846
10	2.59	0.1019	5.26	3.36	20.767	23.68
11	2.3	0.0907	4.17	4.24	16.453	18.761
12	2.05	0.0808	3.332	5.31	13.057	14.889
13	1.82	0.072	2.627	6.69	10.368	11.822
14	1.63	0.0641	2.075	8.45	8.218	9.37
15	1.45	0.0571	1.646	10.6	6.521	7.436
16	1.29	0.0508	1.318	13.5	5.161	5.885
17	1.15	0.0453	1.026	16.3	4.104	4.68
18	1.02	0.0403	0.8107	21.4	3.248	3.704
19	0.912	0.0359	0.5667	26.9	2.578	2.939
20	0.813	0.032	0.5189	33.9	2.048	2.335
21	0.724	0.0285	0.4116	42.7	16.26	1.852

American standard	Metric Units	Imperial Units	Cross-sectional	Resistance	Normal current	Maximum urrent
AWG	mm	inch	mm²	W/km	A	A
22	0.643	0.0253	0.3247	54.3	1.28	1.46
23	0.574	0.0226	0.2588	48.5	1.022	1.165
24	0.511	0.0201	0.2047	89.4	0.808	0.921
25	0.44	0.0179	0.1624	79.6	0.641	0.731
26	0.404	0.0159	0.1281	143	0.506	0.577
27	0.361	0.0142	0.1021	128	0.403	0.46
28	0.32	0.0126	0.0804	227	0.318	0.362
29	0.287	0.0113	0.0647	289	0.255	0.291
30	0.254	0.01	0.0507	361	0.2	0.228
31	0.226	0.0089	0.0401	321	0.158	0.181
32	0.203	0.008	0.0316	583	0.128	0.146
33	0.18	0.0071	0.0255	944	0.101	0.115
34	0.16	0.0063	0.0201	956	0.079	0.091
35	0.142	0.0056	0.0169	1200	0.063	0.072
36	0.127	0.005	0.0127	1530	0.05	0.057
37	0.114	0.0045	0.0098	1377	0.041	0.046
38	0.102	0.004	0.0081	2400	0.032	0.036
39	0.089	0.0035	0.0062	2100	0.025	0.028
40	0.079	0.0031	0.0049	3685	0.019	0.022
41	0.071	0.0028	0.004	4080	0.016	0.018
42	0.064	0.0025	0.0032	6300	0.013	0.014
43	0.056	0.0022	0.0025	5544	0.01	0.011
44	0.051	0.002	0.002	10200	0.008	0.009
45	0.046	0.0018	0.0016	9180	0.006	0.007
46	0.041	0.0016	0.0013	16300	0.005	0.006

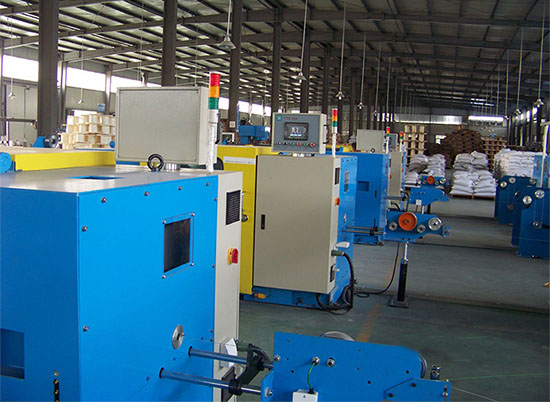

Network Cable Production Equipment

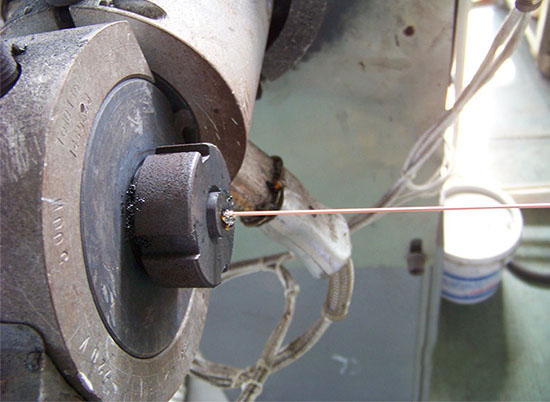

Core Extrusion Equipment

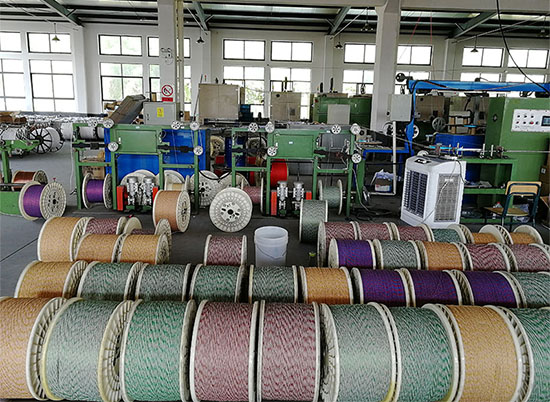

Core wire of Various Specifications

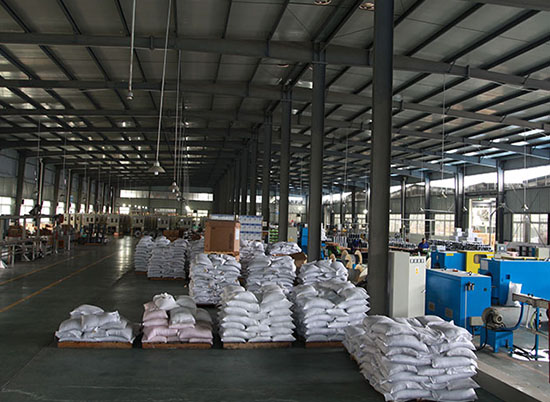

Raw Material Stacking Area

Network Cable Ready to Ship Area

Photos of Delivery

Production Process

Network cable production flow chart

Conductor Drawing → Insulation → Twisting → Cable Twisting → Jacket Line

5 steps to know ethernet cable production process

Test Standards

ISO/IEC11801, ANSI/TIA-568-C.2

Ethernet Cable Physical performance test

Q&A

FAQs

1. HOW CAN I GET CUSTOMIZED PRODUCTS?

Customizing products is one of ZION Communication’s top strengths. We are happy to develop the desired products that fit your needs exactly. Just contact our sales team and give as much detail as possible about your specific requirements and we will find a solution that works for you.
2. HOW YOUR PRODUCTS ARE PACKAGED?

We always strive to deliver all products to the client in new condition. Most of our products are packed in double carton boxes. For larger items such as cabinets, we can deliver using a combination of cartons and pallets. Depending on the model, up to a certain number, your label and the printing of the carton are customizable.
3. HOW LONG WILL IT TAKE FOR ME TO RECEIVE MY ORDER?

Delivery time varies depending on the order. Most of our orders (90%) will be shipped within four weeks of receiving the deposit, only a few orders may take six weeks or longer. Delivery times for specific orders need to be confirmed by you and our sales staff.
4. WHAT ARE ZION COMMUNICATION’S PAYMENT TERM?

For new customers, usually do 30% downpayment by T/T and balance T/T before shipping or L/C at sight.Zion Communication may be able to agree to more flexible terms with regular customers or customers with special large orders or products. If you have any questions or concerns pertaining to payment,please contact us and our sales manager who service you.
5. HOW DO I PLACE AN OEM OR CUSTOMIZED ORDER?
- 1) Send your purchase intention to us.
- 2) Our sales team will contact you to confirm the product specifications, packaging, printing, quantity and other specific information.
- 3) Sign the contract or Proforma Invoice.
- 4) After receiving your deposit, we will start to arrange production.
- 5) 2 weeks before the completion of production, we will notify you to start contacting shipping.
6, HOW DO I BECOME A DISTRIBUTOR?

If you are in the telecom industry and have a proven track record of success in your local market, you can apply to become a distributor in your area. If you want to become a distributor for our brand “HELLOSIGNAL” please contact us via email with your company information and a next 3-year business plan.
