Specification
Li-YCY Data Transmission Cables
| Application: | |||||
| These cables are used for data transmission and controlling uses with efficient screening of tinned copper braided wires. The screening protects the cable especially against external electrical fields. | |||||
| Description: | |||||
| Bare copper conductor 0.14, 0.25, 0.5, 0.75 or 1.0 mm in diameter. PVC (polyvinylcliride) insulation. Stranding in pairs. Shielded of braided copper wire. PVC sheath. | |||||
| Electrical Data (at20°C) | |||||
| Temperature Range Static | Peak Working voltage | Test voltage | Capacitance (1KHz) | Mutual Capacitance | Insulation resistance |
| ℃ | V | V | nF/100m | nF/km | MΩxKM |
| -30 to +70 | 250 | 1200 | 300 | 120 | 20 |

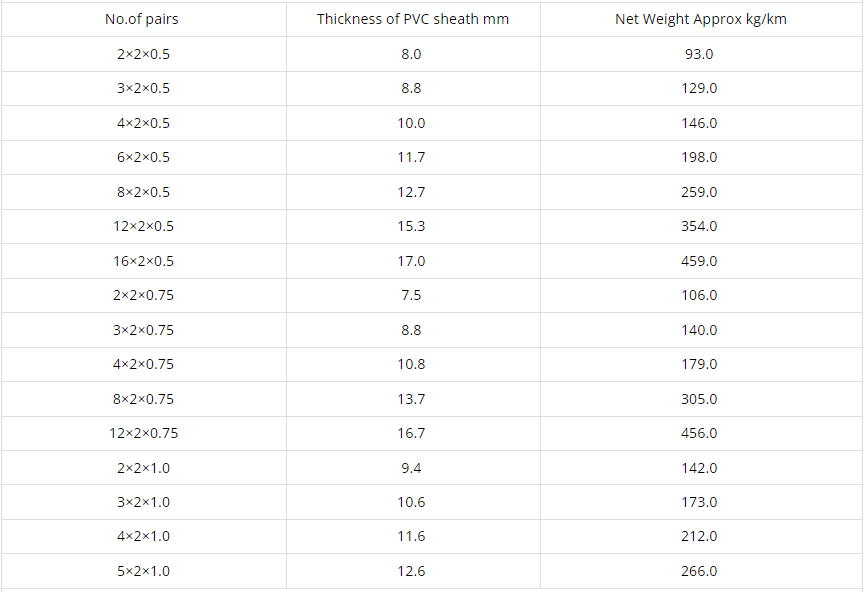

| Types and Mechanical Data | |||||
| No.of pairs | Thickness of PVC sheath mm | Net Weight Approx kg/km | |||
| 2×2×0.5 | 8.0 | 93.0 | |||
| 3×2×0.5 | 8.8 | 129.0 | |||
| 4×2×0.5 | 10.0 | 146.0 | |||
| 6×2×0.5 | 11.7 | 198.0 | |||
| 8×2×0.5 | 12.7 | 259.0 | |||
| 12×2×0.5 | 15.3 | 354.0 | |||
| 16×2×0.5 | 17.0 | 459.0 | |||
| 2×2×0.75 | 7.5 | 106.0 | |||
| 3×2×0.75 | 8.8 | 140.0 | |||
| 4×2×0.75 | 10.8 | 179.0 | |||
| 8×2×0.75 | 13.7 | 305.0 | |||
| 12×2×0.75 | 16.7 | 456.0 | |||
| 2×2×1.0 | 9.4 | 142.0 | |||
| 3×2×1.0 | 10.6 | 173.0 | |||
| 4×2×1.0 | 11.6 | 212.0 | |||
| 5×2×1.0 | 12.6 | 266.0 | |||
| Order Informations: | |||||
| Marking | HELLOSIGNAL Li-YCY CABLES XXX M/FT (or Per customer's request) | ||||
| Inner Package | 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request) | ||||
| Outer Package | Carton, Color Box, Pallet (or Per customer's request) | ||||
| Delivery time | Normally 15 days after received the deposit. | ||||
| Brand | HELLOSIGNAL® OR OEM | ||||
