U/UTP CAT 5E Twisted Pair Steel Messenger Cable
| Construction | ||||||||

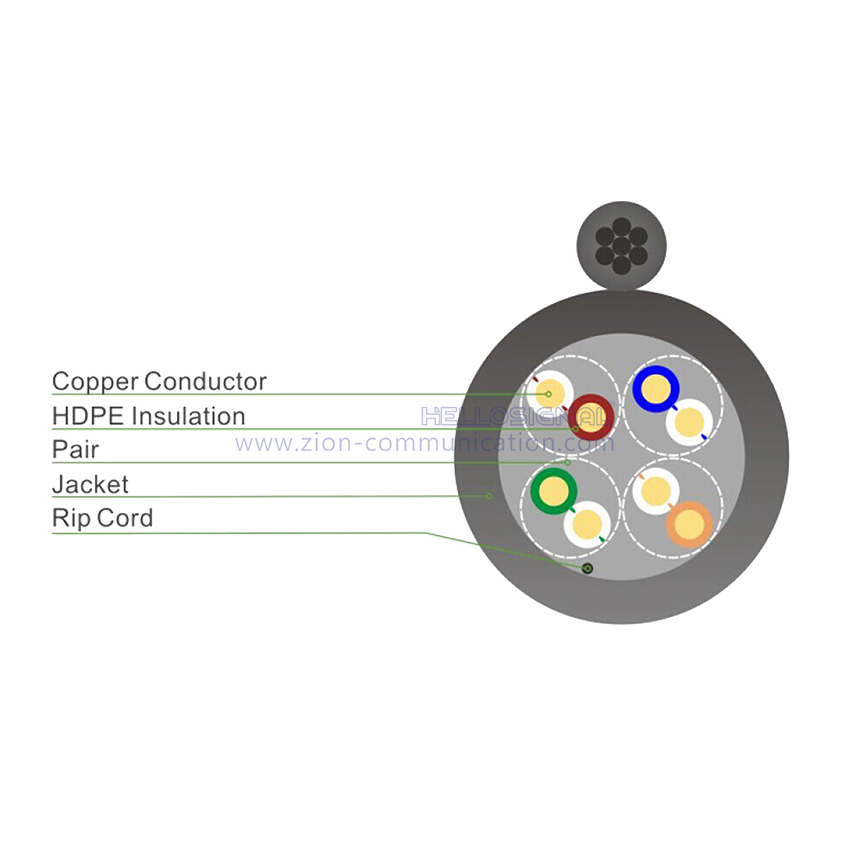

| Conductor: | 24 AWG Solid Bare Copper | |||||||
| Pairs: | 4 Pairs | |||||||
| Insulation: | HDPE | |||||||
| Insulation Colors: | Blue,White/Blue ; Orange,White/Orange | |||||||
| Green,White/Green; Brown,White/Brown | ||||||||
| Rip Cord: | Cotton | |||||||
| Out Jacket: | 5.1±0.2 mm | |||||||
| Messenger | Stranged Steel | |||||||
| Application | Electrical Characteristics | |||||||
| Suitable for structured premises cabling; | Impedance | 1 - 250MHz 100±15 Ohms | ||||||
| Transmission of digigal & analogue voice & data signals; | Insulation Resistance | ＞5000MΩ*KM | ||||||
| Especially suitable for all Class FA applications; | Dielectric strength | DC 2500V 2S | ||||||
| ISDN, Ethernet 10 Base-T,Fast Ethernet 100Base-T, | Max.Conductor DC Resistance 20℃ | 9.5 Ohms/100m | ||||||
| Gigabit Ethernet 1000Base-T,10G Base-T.(IEEE 802.3); | ||||||||
| Token Ring 4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, | Res. unbalance (%) | Max. 2.5 | ||||||
| ATM 155Mbits/s.(IEEE 802.5). | Pair to Ground Capacitance Unbalance | 330 pF/100m | ||||||
| Standard | ||||||||
| IEC / ISO 61156-5 ; ISO / IEC 11801; ANSI / TIA568C.2 | Transfer Impendance | Max 10 mOhms/m @100Mhz | ||||||
| Order Information | Installation temp. | 0 - 50℃ | ||||||
| PVC / CMX / CM / CMR / CMP / LSZH / LDPE | Operation temp. | -20 - 75℃ | ||||||
| Performance Characteristics | ||||||||
| Frequency | RL (Min.) | Insertion Loss (Max.) | Propagation Delay (Max.) | Delay Skew(Max.) | NEXT (Min.) | PSNEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) |
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
| 1 | 20.0 | 2.2 | 570.0 | 45.0 | 65.0 | 62.0 | 61.0 | 61.0 |
| 4 | 23.0 | 4.2 | 552.0 | 45.0 | 56.0 | 53.0 | 48.0 | 48.0 |
| 10 | 25.0 | 6.5 | 545.0 | 45.0 | 50.0 | 47.0 | 41.0 | 41.0 |
| 16 | 25.0 | 8.4 | 543.0 | 45.0 | 47.0 | 44.0 | 36.0 | 36.0 |
| 20 | 25.0 | 9.3 | 542.0 | 45.0 | 45.0 | 42.0 | 34.0 | 34.0 |
| 31.25 | 23.6 | 11.6 | 540.0 | 45.0 | 42.0 | 39.0 | 31.0 | 31.0 |
| 62.5 | 21.5 | 17.0 | 539.0 | 45.0 | 38.0 | 35.0 | 25.0 | 25.0 |
| 100 | 20.1 | 22.0 | 538.0 | 45.0 | 35.0 | 32.0 | 21.0 | 21.0 |
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL U/UTP CAT 5e With Messenger XXX (or Per customer's request) | |||||||
| Inner Package | 305m/Spool,305m/Reel (or Per customer's request) | |||||||
| Outer Package | Color Box, Pallet (or Per customer's request) | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
