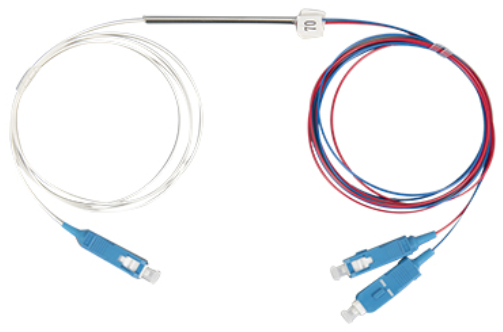

SC/APC Mini Tube FBT Splitter

SC/APC Mini Tube FBT Splitter

SC/APC Mini Tube FBT Splitter

Structure information

Parameter

1x2

1x4

1x8

1x16

1x32

1x64

2x4

2x8

2x16

2x32

2x64

Operation Wavelength

1260nm~1650nm

L max(dB)

≤3.8

≤7.5

≤10.5

≤13.6

≤17.0

≤20.2

≤4.4

≤11.0

≤14.3

≤17.5

≤21.2

IL Uniformity(dB)

≤0.6

≤0.6

≤1.0

≤1.0

≤1.3

≤1.8

≤0.8

≤1.0

≤1.5

≤1.8

≤3.0

PDL(dB) .

≤0.2

≤0.2

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.4

Return Loss[dB)

≥55

Directivit(dB)

≥55

Storage
Temperature(℃)

-40~85

Operation
Temperature(℃)

-40~85

Technical Specifcation

Code

Splitter

Configuration

0102

0104

0108

0116

0132

0164

0204

0208

0216

0232

0264

1x2

1x4

1x8

1x16

1x32

1x64

2x4

2x8

2x16

2x32

2x64

Connector Type

SC

LC

FC

ST

Ferrule Type

UPC

APC

Fiber Type

SM

OM1

OM2

OM3

OM4

Splitter Type

T

C

M

TubeType

Cassette Type

Module Type

Jacket

Material

PVC

LSZH

Color

Yellow

Blue

Black

Orange

Aqua

Purple

Customized

Diameter (mm)

0.9

2.0

3.0

····

Cable
Length(cm)

Input

50

70

100

150

····

Output

50

70

100

150

····
