FC Adapter
HELLOSIGNAL
FC Adapter
Fiber System Equipment
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Product Description
Fiber Optical Adapter— FC Adapters | ||||
|
|
| ||

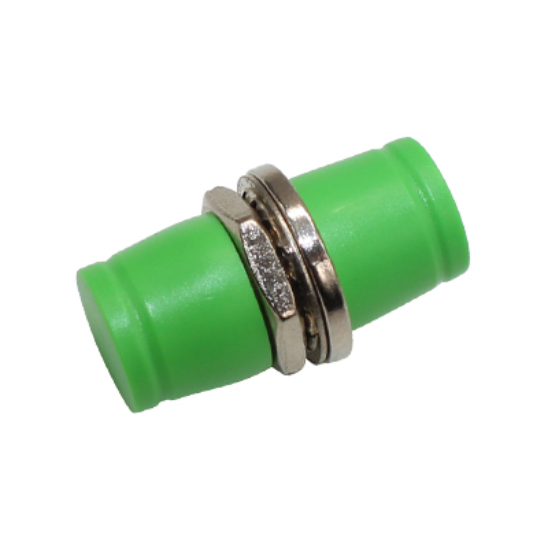

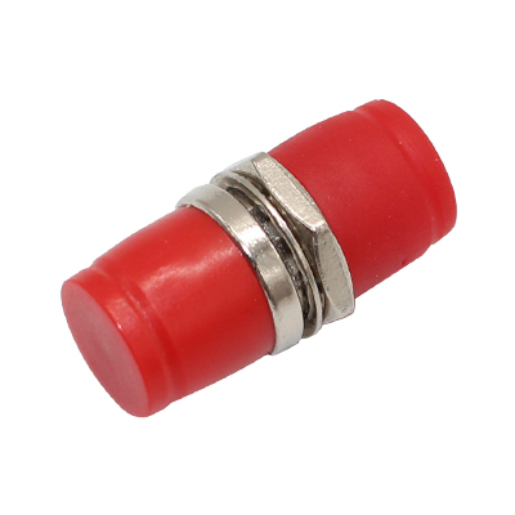

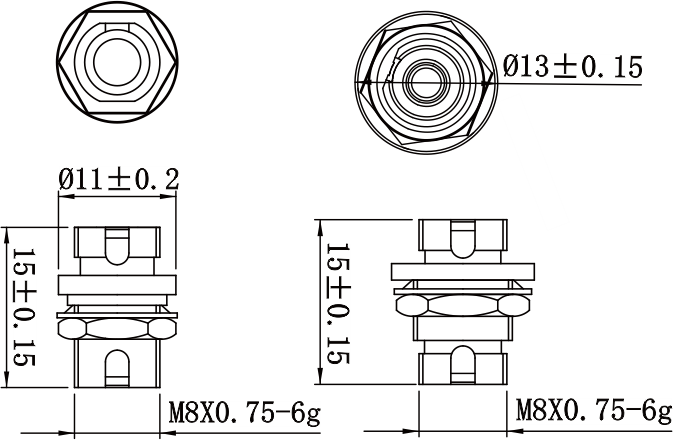

FC SX big D-Type Adapter | ||||
|
|
| ||

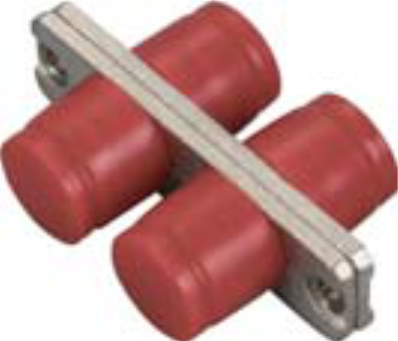

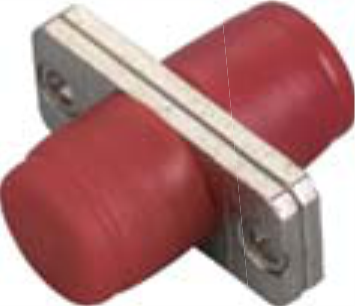

FC SX Adapter With Rectangle Flange | ||||
|
|
| ||

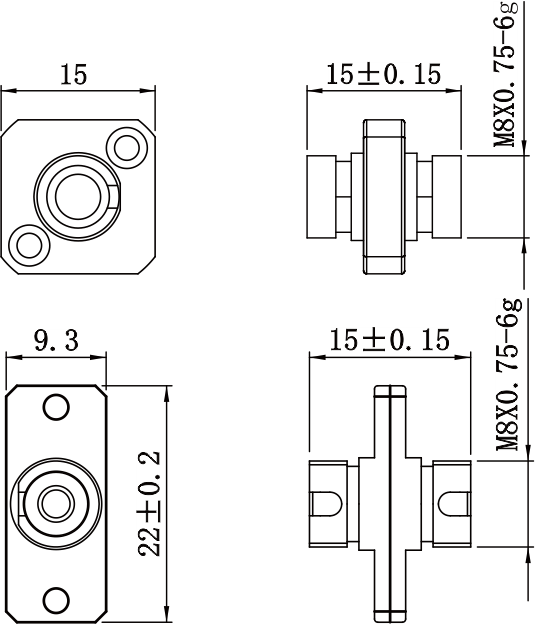

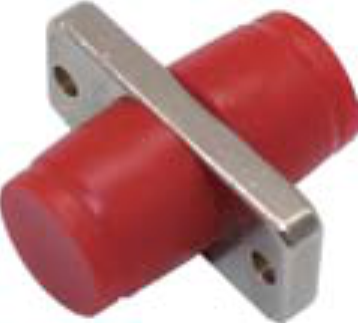

FC Adapter With Square Flange | ||||
Optical Adapter/Performance Parameter Table | ||||
Parameter | SM | MM | ||
PC | UPC | APC | PC | |
lnsertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
Alternating loss | ≤0.2dB | |||
Repeatability | ≤0.2dB | |||
Durability | The change of 500 interpolation times is less than 0.20dB | |||
Working temperature | -40℃~+85℃ | |||
Storage temperature | -40℃~+85℃ | |||
