FDC Central Tube 3.0*6.0 LSZH Flat Drop Cable

FDC FTTH Drop Fiber Optic Cables Flat Drop Cable Central Tube 3.0*6.0 LSZH

■ Introduction:

The typical Flat Drop Optical cable Includes Central Tubes with optical fibre(s), Glass FRP as the strength members, a LSZH Sheath is extruded outside.

■ Features:

Lighting resistance
Non-metallic structure

Duct installation and aerial installation together with tension strandwire
Suitable for FTTH application as drop cable

■ Product Series:

GJXFH

• Strength Member: FRP

• Sheath Material: LSZH

• Dimensions: 2.0 x 3.0 mm



GJXH

• Strength Member: Steel Wire

• Sheath Material: LSZH

• Dimensions: 2.0 x 3.0 mm



GJXH-Small Diameter

• Strength Member: Steel Wire

• Sheath Material: LSZH

• Dimensions: 1.6 x 2.0 mm



GJX(F)DH

• Type: Ribbon Fibers

• Sheath Material: LSZH

• Dimensions: 2.0 x 4.0 mm



GJYX(F)CH

• Strength Member: Self-Supporting Wires

• Sheath Material: LSZH

• Dimensions: 2.0 x 5.2 mm



GJYX(F)CH-Small

• Strength Member: Self-Supporting Wires

• Sheath Material: LSZH

• Dimensions: 1.7 x 3.8 mm



GJYXFDCH (GJYXDCH)

• Strength Member: Self-Supporting Wires + Ribbon Fibers

• Sheath Material: LSZH

• Dimensions: 1.7 x 3.8 mm



GYFJU

• Strength Member: Aramid Yarn

• Sheath Material: LSZH

• Dimensions: Round Sheath



GYGXY

• Strength Member: Central Tube Glass Yarns Armor

• Sheath Material: HDPE

• Dimensions: Round Sheath



FDC

• Type: Flat Drop Cable

• Core: Central Tube

• Sheath Material: LSZH

• Dimensions: 3.0 x 6.0 mm



ASU

• Strength Member: Self-Supporting FRP Strength

• Sheath Material: HDPE

• Dimensions: 7.0/8.0 mm



GYXY-8S

• Type: Figure-8 Self-supporting

• Strength Member: Aramid Yarns + Tubes

• Sheath Material: HDPE

• Dimensions: 4.6 x 8.8 mm



GYFXBY

• Type: Flat Drop Cable

• Core: Central Tube

• Sheath Material: LSZH

• Dimensions: 4.6 x 8.1 mm

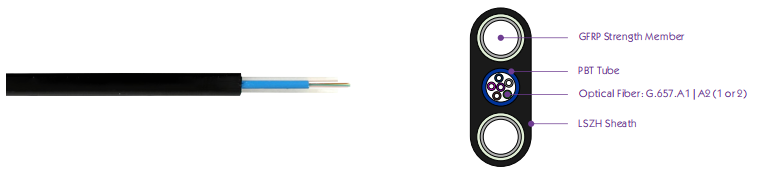

■ Cross Section:

■ Technical Characteristics:

FDC-4-6F

Type:

o 4 fibers

Diameter:

o 3.0 x 6.0 mm (1.5 Tube)

Weight:

o 25 kg/km

Tensile Strength (Long/Short term):

o 300 N / 600 N

Crush Resistance (Long/Short term):

o 300 N / 600 N per 100 mm

Bending Radius (Static/Dynamic):

o 15 mm (Static)

o 30 mm (Dynamic)

FDC-12-24F

Type:

o 12-24 fibers

Diameter:

o 4.0 x 7.0 mm (2.5 Tube)

Weight:

o 36 kg/km

Tensile Strength (Long/Short term):

o 300 N / 600 N

Crush Resistance (Long/Short term):

o 300 N / 600 N per 100 mm

Bending Radius (Static/Dynamic):

o 15 mm (Static)

o 30 mm (Dynamic)



■ Environmental Characteristics:

Transport/storage temperature: -20℃~70℃

■ Delivery Length:

 Standard length:1000m;Other length availabe
