FTTX ADSS Suspension Clamp
hellosignal
7238081,ZCTGC-01
Optical Fiber cable Hardware
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
ZCTGC-01
3.8 KN
Φ5-8mm
P/N: ZCTGC-01
Product Material: Thermo-Plastic-Rubbermaterial+ Galvanized steel
(TP-RL+GS)

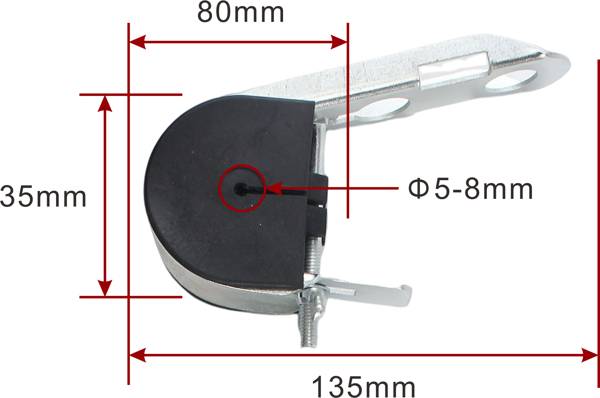

Product Size: 135*80*35mm
Bearing Tensile: 3.8 KN
Per Weight: 161g
Applicable Wire Diameter: Φ5-8mm
Packing Specifications: Carton Size：40*30*30cm Weight：25KG
Single Box Quantity: 150pcs/Carton
Application: Fiber optical systems
Brand: HELLOSIGNAL® OR OEM
MOQ: 150pcs
Widely applied in cable connecting fittings,to support wire,conductor,cable in transmission line fittings.
Local Area Networks.
Suit for ADSS Fiber Optic Round Cable.
Telecommunication Networks.
Fiber to the Home (FTTH).
Other applications in Fiber optical systems
High tensile strength and stability.
Special fixing method of soft rubber TPR.
Self-adjustable wedge.
Suitable for a full range of cable diameters from 3-20mm.
Strong corrosion resistance, acid resistance and alkalinity in the field.
Simple, fast installation, no require other tools.
Small diameter optical cable can clamp N roots.
High quality with Competitive price.
Perfect environment stability.
Effective cable clamping due to the conical wedging system.
Easy to install, as long as only stainless steel strips or pigtail hooks or brackets can be installed to the rod or wall.
Wide grip and mechanical resistance.
This Suspension clamp is composed of a TPR plastic insert and galvanized steel shell.The special wire clamping method of soft glue makes the cable stable and safe.designed to suspend ADSS round optical fiber cable during the construction of the transmission line. which clamps the optical cable without damage. A wide range of gripping capacities and mechanical.

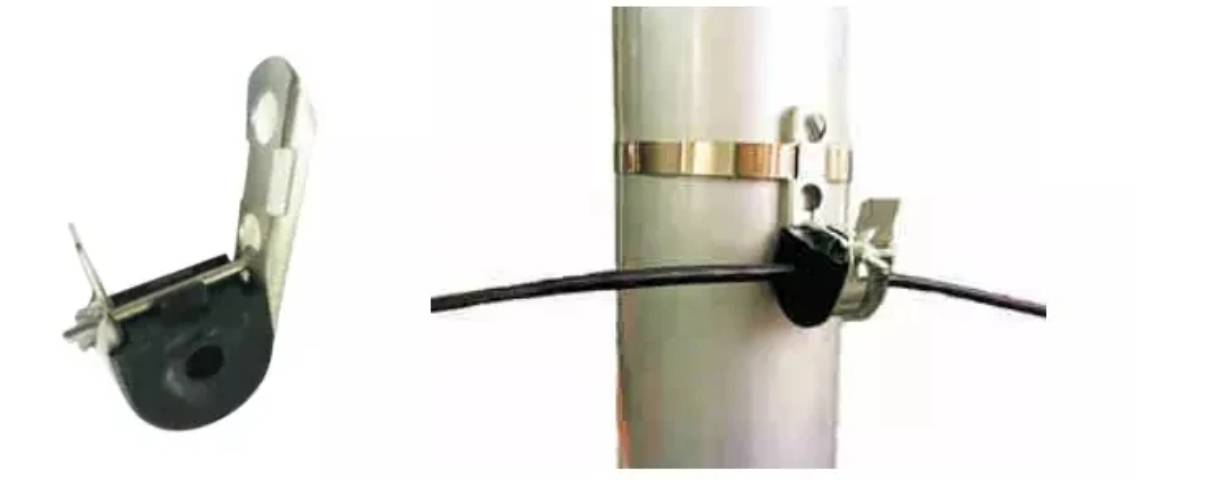

resistance archived by a wide product range, with different sizes of neoprene inserts.The metal hook of the suspension clamp allows installation on the pole by using a stainless steel band and pigtail hook or brackets.The hook of the ADSS clamp can be produced from stainless steel materials according to your request.
Self-supporting optical cable suspension clamp is a kind of optical cable hardware equipment. It is mainly used for suspending ADSS optical cable or self-supporting circular optical cable during the construction of optical cable.
Suspension clamps HC designed to suspend ADSS round optical fiber cable during construction of transmission line. The clamp consists of a plastic insert, which clamps the optical cable without damaging it. A wide range of gripping capacities and mechanical resistance archived by a wide product range, with different sizes of neoprene inserts.
The ADSS suspension clamp is used for the direct suspension of round fiber optic ADSS cables with Ø6 to 15mm on short spans (max 150m) at intermediate poles on straight routes. Choose the type according to the diameter of the ADSS cable.
The clamps PS-ADSS can be installing on a hook bracket, and also can be used with stainless steel straps.
Wide range of clamping capacity and mechanical resistance archives for a wide range of products, with different sizes of rubber inserts.
The cable clamp consists of a J-hook and plastic insert, which clamps circular optical fibers without damage.
These clamps passed the tensile tests and operation experience with temperatures ranging from 40 degrees up to 60 degrees test. Temperature cycling test,aging test , Corrosion resistant test.
