FTTX ADSS Suspension Clamp J Hook Suspension Clamp for ADSS Fiber Optic Round Cable ZCTGC-03

Specification：

P/N

ZCTGC-03

Product Material

Thermo-Plastic-Rubbermaterial+ Galvanized steel
(TP-RL+GS)

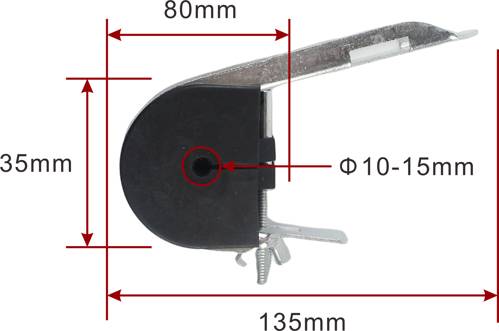

Product Size

135*80*35mm

Bearing Tensile

3.8 KN

Per Weight

158g

Applicable Wire Diameter

Φ10-15mm

Packing Specifications

Carton Size：40*30*30cm Weight：24.7KG

Single Box Quantity

150pcs/Carton

Application

Fiber optical systems

Brand

HELLOSIGNAL® OR OEM

MOQ

150pcs

Application:

● Widely applied in cable connecting fittings,to support wire,conductor,cable in transmission line fittings.
● Local Area Networks.
● Suit for ADSS Fiber Optic Round Cable.
● Telecommunication Networks.
● Fiber to the Home (FTTH).
● Other applications in Fiber optical systems

 Features:

● High tensile strength and stability.
● Special fixing method of soft rubber TPR.
● Self-adjustable wedge.
● Suitable for a full range of cable diameters from 3-20mm.
● Strong corrosion resistance, acid resistance and alkalinity in the field.
● Simple, fast installation, no require other tools.
● Small diameter optical cable can clamp N roots.
● High quality with Competitive price.
● Perfect environment stability.
● Effective cable clamping due to the conical wedging system.
● Easy to install, as long as only stainless steel strips or pigtail hooks or brackets can be installed to the rod or wall.
● Wide grip and mechanical resistance.

Description：

● This Suspension clamps is compose of TPR plastic insert and galvanized steel shell.The special wire clamping method of soft glue makes the cable stable and safe.designed to suspend ADSS round optical fiber cable during construction of transmission line. which clamp the optical cable without damaging. A wide range of gripping capacities and mechanical.
● resistance archived by wide product range, with different sizes of neoprene inserts.The metal hook of suspension clamp allows installation on the pole by using stainless steel band and pigtail hook or brackets.The hook of ADSS clamp can be produced form stainless steel materials according to you request.
● Self-supporting optical cable suspension clamp is a kind of optical cable hardware equipment. It is mainly used for suspending ADSS optical cable or self-supporting circular optical cable during the construction of optical cable.
● Suspension clamps HC designed to suspend ADSS round optical fiber cable during construction of transmission line. The clamp consists of plastic insert, which clamp the optical cable without damaging. A wide range of gripping capacities and mechanical resistance archived by wide product range, with different sizes of neoprene inserts.
● The ADSS suspension clamp is used for the direct suspension of round fiber optic ADSS cables with Ø6 to 15mm on short spans (max 150m) at intermediate poles on straight routes.choose the type according to the diameter of ADSS cable.
● The clamps PS-ADSS can be installing on hook bracket, also can be use with stainless steel straps.
● Wide range of clamping capacity and mechanical resistance archives for a wide range of products, with different sizes of rubber inserts.
● The cable clamp consists of J-hook and plastic insert, which clamps circular optical fibers without damage.
● This clamps passed the tensile tests,Operation experience with temperatures ranging form-40degree up to 60 degree test. Temperature cycling test,aging test , Corrosin resistant test.
