GJXFDH / GJXDH Ribbon Fibers 2.0*4.0 LSZH Drop Cable

GJXFDH FTTH Drop Fiber Optic Cables Ribbon Fibers 2.0*4.0LSZH

■ Introduction:

The typical GJXFDH bow-type drop optical cable
includes central optical fibre(s) with two parallel FRP/Steel wires as the strength members placed on both sides
an LSZH sheath is extruded outside.

■ Features:

Simple structure, lightweight, high tensile strength, and metal-free
Novel groove design, easily strip and splice, simplified installation and maintenance
Low smoke, zero halogen, and flame retardant sheath, environment-friendly, good safety

■ Product Series:

·  GJXFH

· Strength Member: FRP

· Sheath Material: LSZH

· Dimensions: 2.0 x 3.0 mm

·  GJXH

· Strength Member: Steel Wire

· Sheath Material: LSZH

· Dimensions: 2.0 x 3.0 mm

·  GJXH-Small Diameter

· Strength Member: Steel Wire

· Sheath Material: LSZH

· Dimensions: 1.6 x 2.0 mm

·  GJX(F)DH

· Type: Ribbon Fibers

· Sheath Material: LSZH

· Dimensions: 2.0 x 4.0 mm

·  GJYX(F)CH

· Strength Member: Self-Supporting Wires

· Sheath Material: LSZH

· Dimensions: 2.0 x 5.2 mm

·  GJYX(F)CH-Small

· Strength Member: Self-Supporting Wires

· Sheath Material: LSZH

· Dimensions: 1.7 x 3.8 mm

·  GJYXFDCH (GJYXDCH)

· Strength Member: Self-Supporting Wires + Ribbon Fibers

· Sheath Material: LSZH

· Dimensions: 1.7 x 3.8 mm

·  GYFJU

· Strength Member: Aramid Yarn

· Sheath Material: LSZH

· Dimensions: Round Sheath

·  GYGXY

· Strength Member: Central Tube Glass Yarns Armor

· Sheath Material: HDPE

· Dimensions: Round Sheath

·  FDC

· Type: Flat Drop Cable

· Core: Central Tube

· Sheath Material: LSZH

· Dimensions: 3.0 x 6.0 mm

·  ASU

· Strength Member: Self-Supporting FRP Strength

· Sheath Material: HDPE

· Dimensions: 7.0/8.0 mm

·  GYXY-8S

· Type: Figure-8 Self-supporting

· Strength Member: Aramid Yarns + Tubes

· Sheath Material: HDPE

· Dimensions: 4.6 x 8.8 mm

·  GYFXBY

· Type: Flat Drop Cable

· Core: Central Tube

· Sheath Material: LSZH

· Dimensions: 4.6 x 8.1 mm

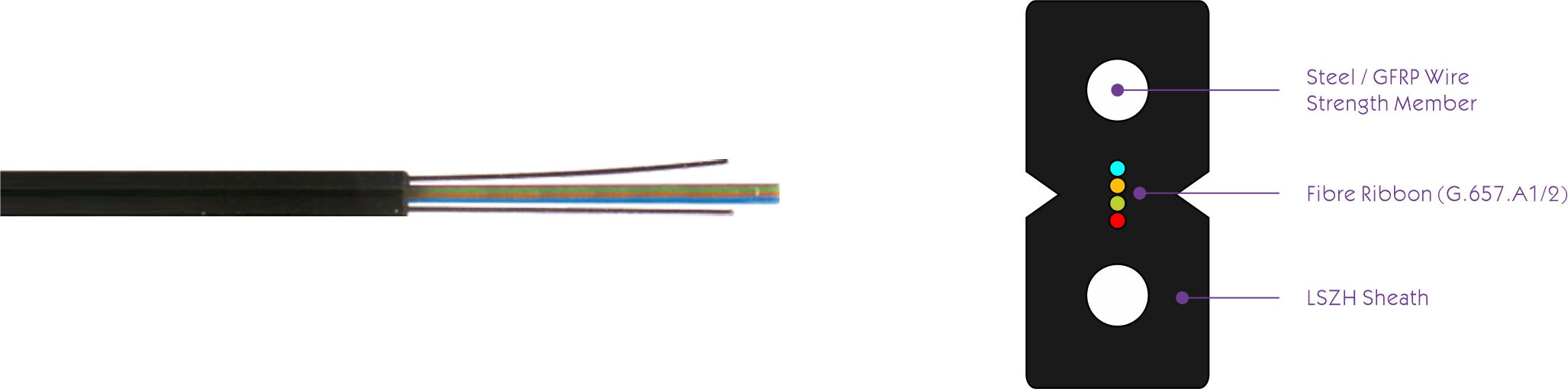

■ Cross Section:

■ Technical Characteristics:

·  GJXFDH-4:

· Diameter: 2.0 mm x 4.0 mm

· Weight: 11.8 kg/km

· Tensile Strength: Long-term 40 N, Short-term 80 N

· Crush Resistance: Long-term 500 N/100mm, Short-term 1000 N/100mm

· Bending Radius: Static 15 mm, Dynamic 30 mm

·  GJXDH-4:

· Diameter: 2.0 mm x 4.0 mm

· Weight: 15 kg/km

· Tensile Strength: Long-term 100 N, Short-term 200 N

· Crush Resistance: Long-term 1000 N/100mm, Short-term 2200 N/100mm

· Bending Radius: Static 15 mm, Dynamic 30 mm

Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

■ Environmental Characteristics:

Transport/storage temperature: -20℃~70℃

■ Delivery Length:

 Standard length:1000m;Other length availabe
