Slotted-core Tight Buffered Fibers APL Armored with CSM
Networks in Rural Areas
ISO9001
1km/Spool
Wooden Spool ，Φ280*280mm
100km
Normally 15 working days
NINGBO CHINA
30%TT as deposit,70%Balance before shipping.
GTJGA Slotted-core Tight Buffered Fibers APL Armored with CSM Fiber Optic Cable for Networks in Rural Areas Vast Countryside
Tight buffered fibers are housed in slots in different numbers as needed. A phosphated steel wire is used as the central strength member. The slotted core is wrapped with water-blocking tape, and a rip cord is placed outside the tape. The core is then armored with laminated aluminum tape and protected by an extruded PE sheath.
In the distribution segment of optical networks in rural areas, the cable can be used as drop cables for non-self-supporting aerial installation to connect branching points with subscriber access points.
All-dry design, improving efficiency of construction and splicing.
Easy for branching of a single fiber.
Good mechanical and temperature performances.
Applicable to outdoor duct or aerial installations, and vertical installation.
Feeder Segment:
GYTA/GYTS: Stranded Loose Tube.
Distribution Segment:
GYAXZY: Uni-tube Aramid LSZH Sheath.
GYGXZY: Uni-tube Glass Yarn PE Sheath.
GTJGA: Slotted TBF APL CSM.
GYFXBY: Flat-shape & Self-supporting Uni-tube.
GYAXTC8Y: Figure-8 Self-supporting Uni-tube Aramid.
GYFC8A-3U: 3-Unit FRP APL Figure-8 Self-supporting.
Drop Segment:
GJXH: Bow-type drop cable.

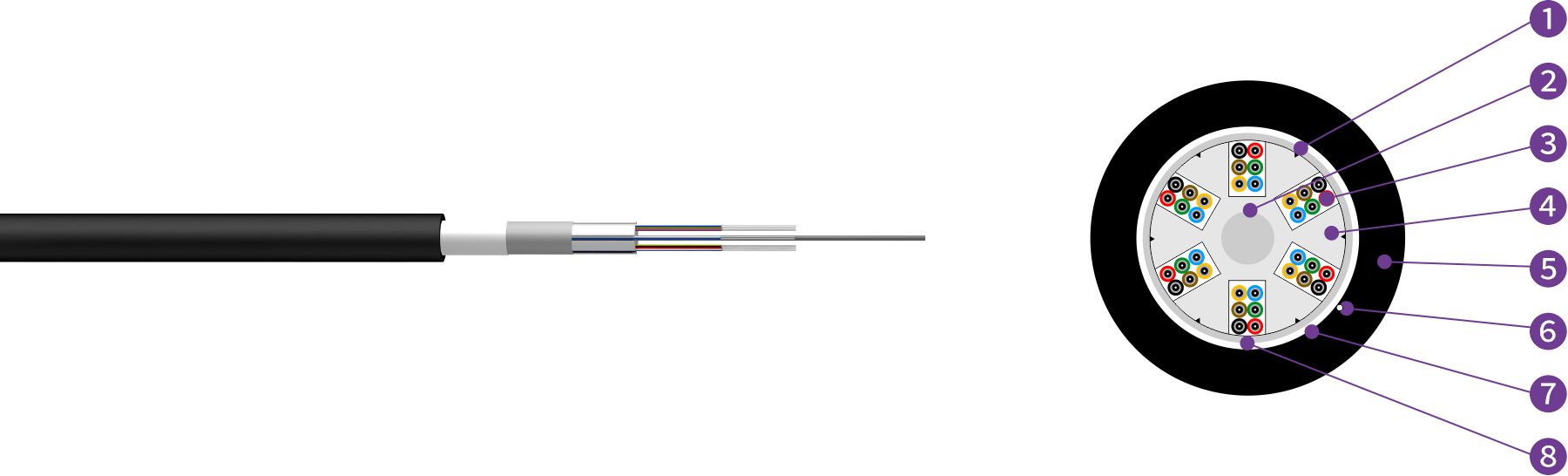

1. Rib Mark 2. Strength Member 3. Tight Buffered Fiber 4. Slot 5. Sheath 6. Ripcord 7. APL 8. Water Blocking Tape
Type: GTJGA-24Xn
Diameter: 11.5 mm (1.2 Thickness)
Weight: 125 kg/km
Slot No.: 6
Fiber Count per Slot: 4
Fiber Diameter: 0.55 mm
Type: GTJGA-48Xn
Diameter: 12.8 mm (1.2 Thickness)
Weight: 140 kg/km
Slot No.: 6
Fiber Count per Slot: 8
Fiber Diameter: 0.55 mm
Note: This specification provides a normative reference. The outer diameter can be adjusted to suit your budget. Contact us ASAP.
Transport/Storage Temperature: -40℃ to 70℃.
Standard Length: 2000 meters.
Other lengths are available upon request.
