GYAXZY Uni-tube Non-metallic Aramid Armored LSZH Fire Resistant Sheath Fiber Optic Cable

GYAXZY                                                                                              Uni-tube Non-metallic Aramid Armored LSZH Fire Resistant Sheath Fiber Optic Cable for Networks in Rural Areas Vast Countryside

Introduction:

Optical fibres are housed in a loose tube that is made of high-modulus plastic and filled with tube fulling compound. The tube is armored with a layer of aramid yarns as the strength member. Then a LSZH sheath is extruded.
In the distribution segment of optical cable networks in rural areas, the cable can be used as drop cables for self-supporting aerial installation to connect branching points with access points for subscribers.

Features:

Good mechanical and temperature performances
All-dielectric design, applicable to lightning-prone areas
Aramid yarns ensuring tensile strength of optical cable
Small size and light weight, easy for installation
Different tensile strength can be designed on request for short-distance self-supporting aerial and duct installations

Product Series:

1

Feeder segment

GYTA/GYTS

Stranded Loose Tube

2

Distribution segment

GYAXZY

Uni-tube Aramid LSZH Sheath

GYGXZY

Uni-tube Glass Yarn PE Sheath

GTJGA

Slotted TBF APL CSM

GYFXBY

Flat-shape & Self-supporting Uni-tube

GYAXTC8Y

Figure-8 Self-supporting Uni-tube Aramid

GYFC8A-3U

 3-Unit FRP APL Figure-8 Self-supporting

3

Drop segment

GJXH

Bow-type drop cable

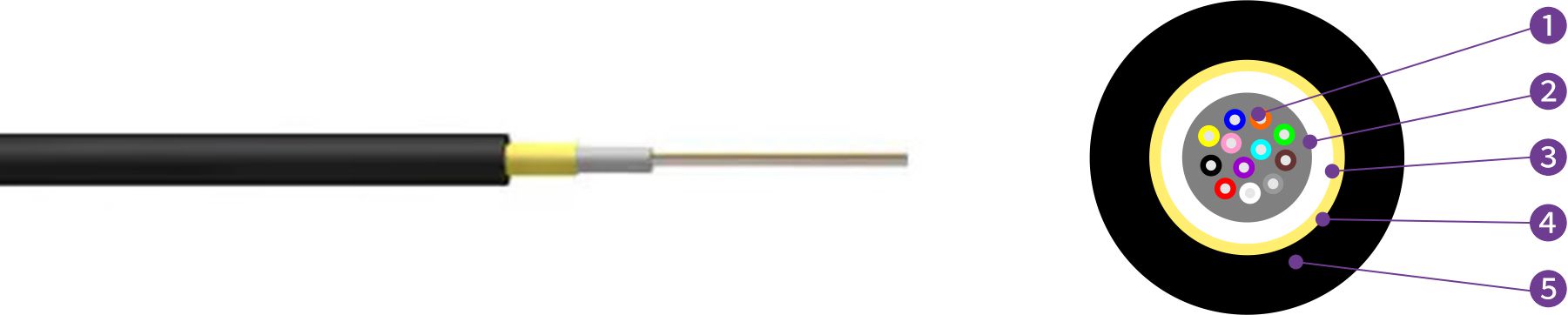

Cross Section:

1,Fibre  2,Tube Filling Compound  3,Loose Tube  4,Aramid Yain  5,LSZH Sheath

Technical Characteristics:

Type

Diameter
mm

Weight
(kg/km)

Tension(N)
Long/short

Crush Resistance
Long/short
(N/100mm)

Bending Radius
Dynamic/static

GYAXZY-02-12Xn

6.0(3.0optical unit)

42

600/1500

300/1000

20D/10D

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

Environmental Characteristics:

  Transport/storage temperature: -40℃~70℃

Delivery Length:

 Standard length:2000m;Other length availabe
