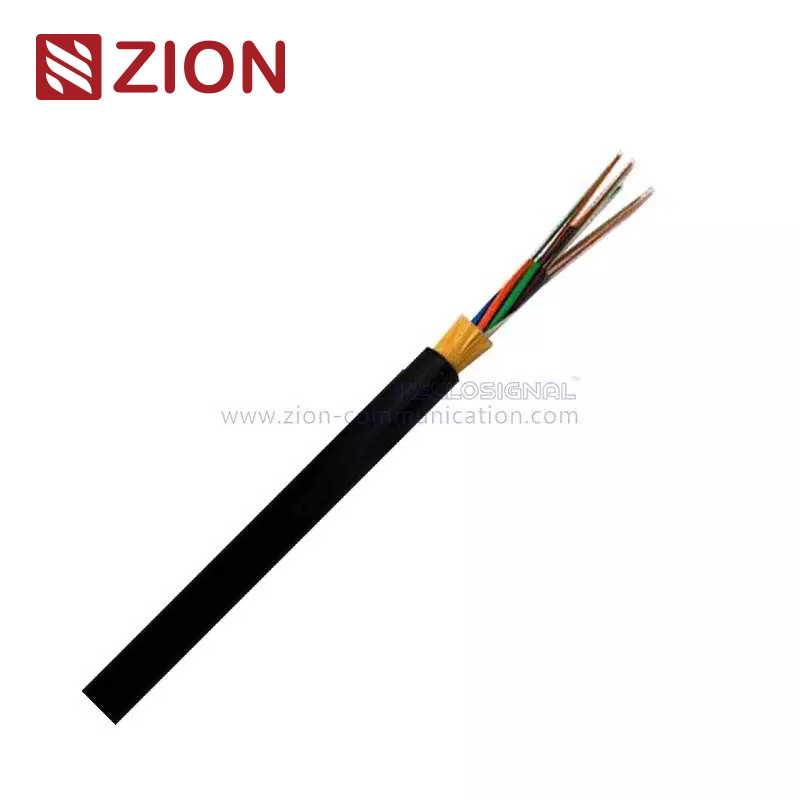

GYFTY 4 Cores G.652D

  • GYFTY

  • hellosignal

  • 7120307

Availability:

GYFTY 4 Cores G.652D
No.7120307


PDF download


 Technical Parameters


Cable Code: GYFTY

Fiber Count: 4

Cable Diameter: 10.6 (mm)

Cable Weight: 88(kg/km)

Tensile Strength Long/Short term: 400/1000(N)

Crush Resistance Long/Short term: 300/1000(N/100mm)

Bending Radius Static/Dynamic: 10D/20D(mm)


Storage/Operating Temperature:-40℃to+70℃

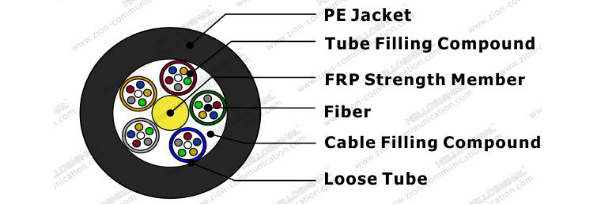

 Cross Section:








 Description:

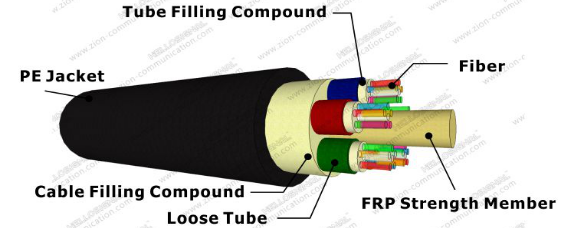

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non- metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.



 Characteristics:

Good mechanical and temperature performance;
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection fiber;
Crush resistance and flexibility;
The following measures are taken to ensure the cable watertight:
(1)Single Fiber Reinforced Plastic as the central strength member;
(2)Loose tube filling compound;
(3)100% cable core filling;



 Standards:

GYFTY cable complies with Standard YD/T 901-2001as well as IEC 60794-1



 Order Informations:

Marking: HELLOSIGNAL GJYXFCH xxxxM (or Per customer's request)

Inner Package: 2000m/Spool (or Per customer's request)

Outer Package: Pallet (or Per customer's request)

Delivery time: Normally 25 days after received the deposit.

Brand: HELLOSIGNAL® OR OEM
