KX
hellosignal
7100432
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Specification
75 Ohm CATV coaxial Cable NO.7100432 | |||
Construction Parameters: | |||
Inner Conductor | 7×0.008"/7×0.2mm/7×32 AWG Cu | ||
Dielectric | 0.15"/3.7mm Solid PE | ||
Shield | Copper (90%) | ||
Jacket | 6.10±0.10mm PVC | ||
Application | For Use in Longer CATV Run Lengths | ||
Electrical Characteristics: | |||
Inner Conductor Resistance | 87.5Ω/KM at 20℃ | ||
Capacitance | 67 ±3 pF/m | ||
Impedance | 75 ± 3 Ω | ||
Return loss | between 5 and 1000MHz: > 22dB | ||
Velocity of Propagation | 0.85 | ||
Sparker Test (VAC) | 4 | ||
Mechanical and Envrionmental Properties | |||
Cable bend radius | 10 times the cable diameter | ||
Operating Temp Range | -20 ℃ to 70℃ | ||
Cable diamensions | 6.6±0.15mm PVC | ||

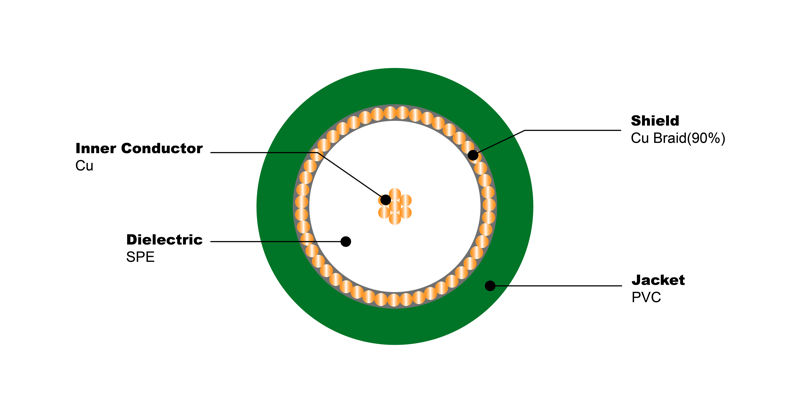

Cross Section | |||
| |||
Attenuation(20℃): | |||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |
10 | 5.00 | ||
50 | 8.10 | ||
100 | 13.00 | ||
200 | 18.50 | ||
400 | 22.50 | ||
850 | 34.50 | ||
950 | 37.50 | ||
1000 | 45.00 | ||
Order Informations: | |||
Marking | HELLOSIGNAL KX 6 Cu 90% Cu PVC CATV COAXIAL CABLE 7100432 ×××M/FT | ||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
Delivery time | Normally 25 days after received the deposit. | ||
Brand | HELLOSIGNAL® OR OEM | ||
KX 6 Cu 90% Cu PVC
