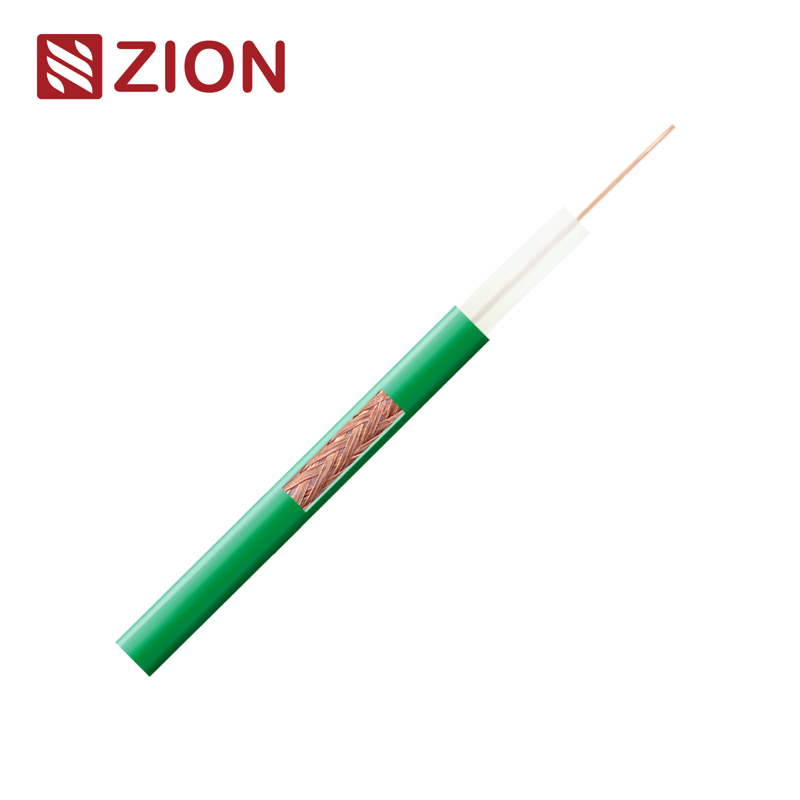

KX 8 Cu 90% CCA PVC 75 Ohm CATV coaxial Cable

Construction Parameters:

Inner Conductor

7×0.016"/7×0.4mm/7×26 AWG Cu

Dielectric

0.30"/7.25mm Solid PE

Shield

Copper Clad Aluminum(90%)

Jacket

10.2±0.10mm PVC

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

22.2Ω/KM at 20℃

Capacitance

67 ±3 pF/m

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 70℃

Cable diamensions

6.6±0.15mm PVC

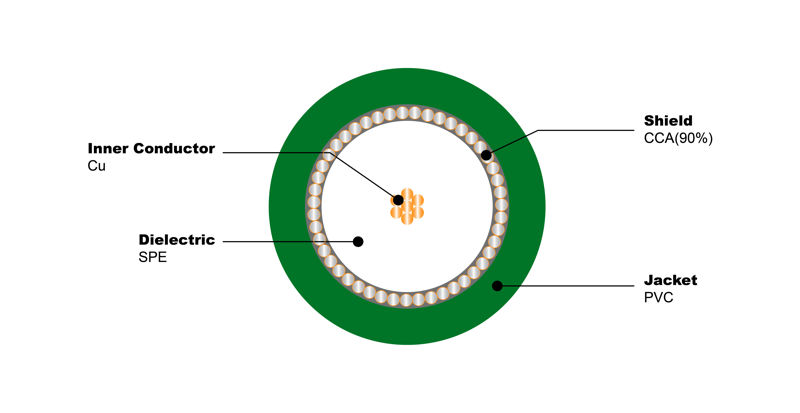

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

10

2.90

50

4.50

100

6.60

200

10.90

400

13.80

850

23.60

950

26.80

1000

27.50

Order Informations:

Marking

HELLOSIGNAL KX 8 Cu 90% CCA PVC

CATV COAXIAL CABLE 7100433 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
