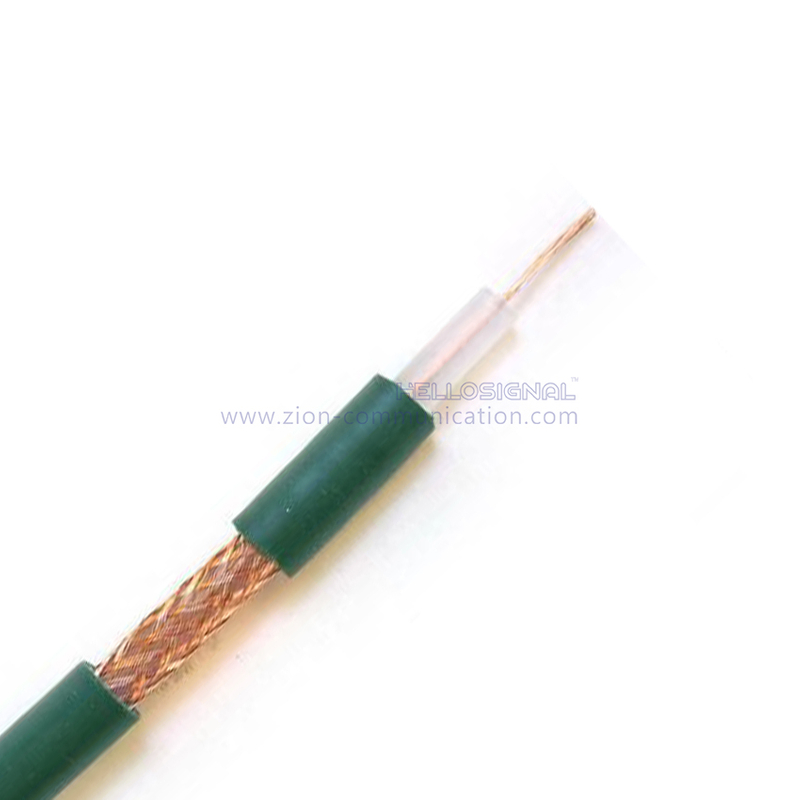

KX8 COAXIAL CABLE

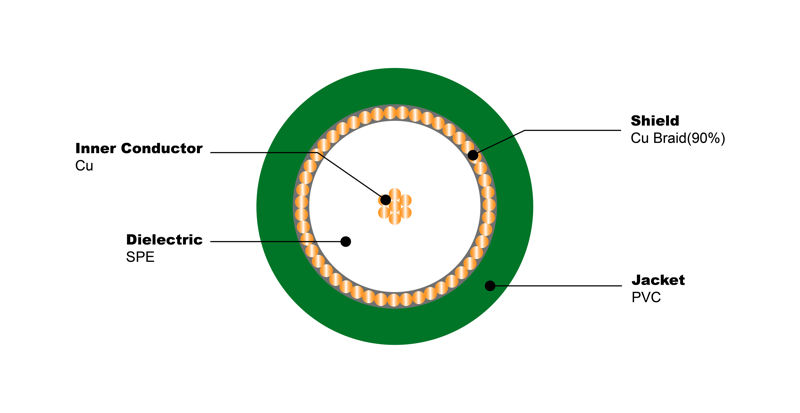

| Construction Parameters: | ||
| Inner Conductor | 7×0.4mm Copper | |
| Dielectric | 7.25mm±0.10 Solid PE | |
| Shield | Copper/CCA braid wire 90% coverage | |
| Outer sheath | 10.2±0.10mm PVC | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance | 22.2Ω/KM | |
| Capacitance | 67 ±3 pF/m | |
| Impedance | 75 ± 3 Ω | |
| Return loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.85 | |
| Sparker Test (VAC) | 4 | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation (dB/100m) | |
| 10 | 2.90 | |
| 50 | 4.50 | |
| 100 | 6.60 | |
| 200 | 10.90 | |
| 400 | 13.80 | |
| 850 | 23.60 | |
| 950 | 26.80 | |
| 1000 | 27.50 | |
| Mechanical and Envrionmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 ℃ to 75℃ | |
| Cable diamensions | 6.6±0.15mm PVC | |
| Order Informations: | ||
| Marking | HELLOSIGNAL KX8 COAXIAL CABLE ×××M | |
| Package | 100M/Reel (Per customers inquire) | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
