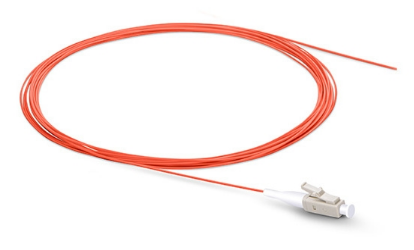

LC APC Simplex OM1 Multimode PVC 0.9mm -2m(6ft) FOPT

LC APC  Simplex
OM1 Multimode PVC 0.9mm -2m(6ft) FOPT
12F1411-2

■ Fiber Optic Cable Specifications:

• Fiber Type:

Single-mode (SM): OS2 (G.652.D / G.657.A1 / G.657.A2)

Multi-mode (MM): OM1 (62.5/125); OM2 (50/125); OM3, OM4 (50/125, Laser Optimized)

• 900µm / 0.9mm Buffer Color:

Yellow: SM OS2 (G.652.D / G.657.A1 / G.657.A2)

Orange: OM1, OM2

Aqua: OM3, OM4

Customized Colors: Green, Brown, White, Red, Black, Purple, Rose, Slate

• 900µm / 0.9mm Fiber Types:

Single Typical: 1 Fiber

Bunch Typical: 12 Fibers

Customized: 4-48 Fibers

• Aramid Yarn (2.0mm / 3.0mm):

Aramid yarn is used as a peripheral strength member over the cable core.

• Cable Jacket:

Material Options: PVC / LSZH / Plenum (OFNP)

Outer Diameter (OD):

Simplex: 0.9mm / 2.0mm / 3.0mm

Duplex: 0.9mm / 2.0mm / 3.0mm

• Jacket Color:

Yellow: SM OS2 (G.652.D / G.657.A1 / G.657.A2)

Orange: OM1, OM2

Aqua: OM3, OM4

• Cable Length:

Standard: 1m, 2m, 3m

Other lengths available on request

■ Product Specification:

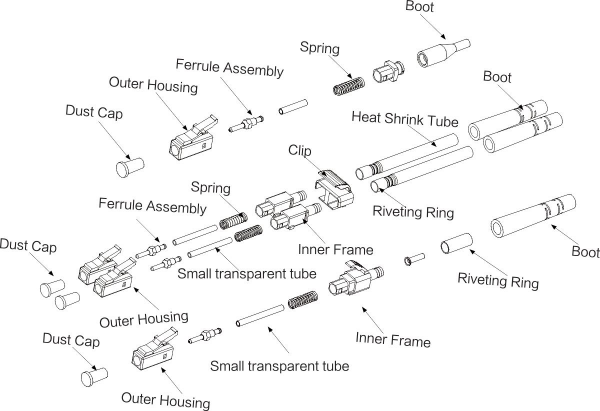

Connector Type: LC, SC, FC, ST, MU, MTRJ, LSH, E-2000

LC ( Lucent Connector/Little Connector/Local Connector)
Typical Application: High density connections, SFP and SFP+ transceivers, XFP transceivers

■ Fiber Optic Connector Parameters:

Connector Type: LC APC

Fiber Type: OM1 (G.652.D / G.657.A1 / G.657.A2)

Operating Wavelength: 850-1300 nm

Insertion Loss: ≤ 0.3 dB

Return Loss: ≥ 35 dB

Repeatability: ≤ 0.1 dB

Interchangeability: ≤ 0.2 dB

Tensile Strength: ≥ 1000 N

Operating Temperature: -20℃ to +85℃

Storage Temperature: -40℃ to +85℃

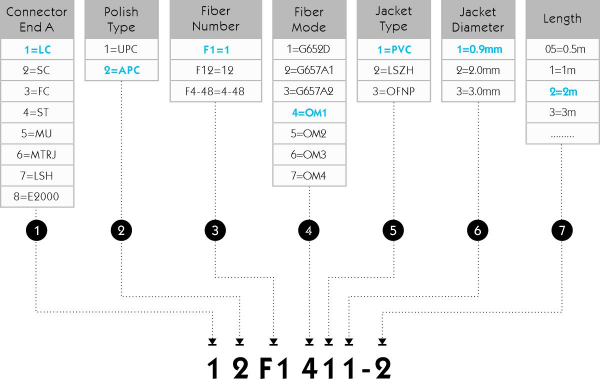

Zion Code: 12F1411-2

Description: LC APC  Simplex             OM1 Multimode PVC 0.9mm -2m(6ft) FOPT

■ OEM/ODM service for you:

ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.

• Customized Logo

• Printing on Cable

• Label/PE bag/Carton design

• Different Color & Different Lengths Available
