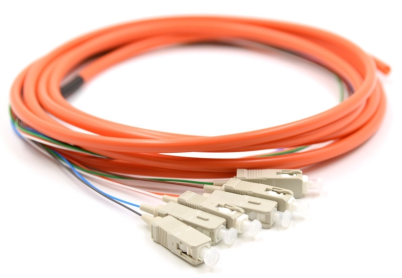

SC UPC 12 Fibers OM1 Multimode Bunch PVC 0.9mm with Jacket FOPT

SC UPC 12 Fibers OM1
Multimode Bunch PVC 0.9mm with Jacket FOPT
21F12411-2

Product Specification

Fiber Optic Cable

Fiber Type

Single-mode: OS2 ( G.652.D /  G.657.A1 / G.657.A2)

Multi-mode: OM1(62.5/125), OM2(50(125),
[(OM3, OM4) (50/125,Laser Optimization)]

900um/0.9mm Buffer Colour

Yellow:   SM: OS2 ( G.652.D /  G.657.A1 / G.657.A2)

Orange:  OM1, OM2

Aqua:     OM3, OM4

Customized : Green,Brown,White,Red,Black,Purple,Rose,Slate

900um/0.9mm Types

Single Typical: 1 Fiber

Bunch Typical: 12 Fibers

Customized: 4-48 Fibers

Aramid Yarn (2.0/3.0mm)

Aramid yarn is laid over the cable core
to serve as peripheral strength member.

Cable Jacket

Main material: PVC / LSZH / Plenum (OFNP)

OD: Simplex: 0.9/2.0/3.0mm    Duplex: 0.9/2.0/3.0mm

Jacket Color

Yellow:   SM: OS2 ( G.652.D /  G.657.A1 / G.657.A2)

Orange:  OM1, OM2

Aqua:     OM3, OM4

Cable Length

1m, 2m, 3m. other lengths on request

Product Specification

Connector

Connector Type

LC, SC, FC, ST, MU, MTRJ, LSH, E-2000

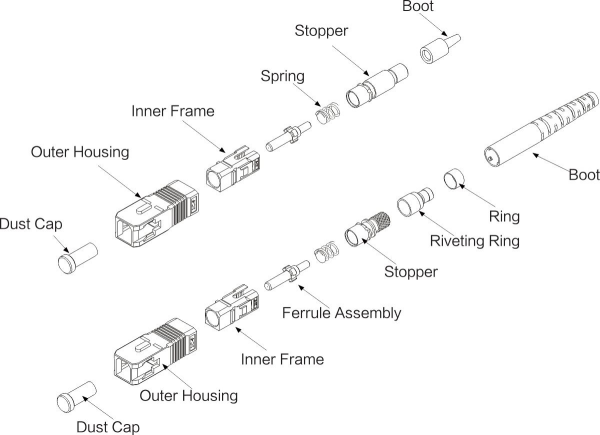

SC ( Subscriber Connector/Square Connector/Standard Connector)
Typical Application:
Telecom,GPON,EPON,GBIC

Product Specification

Parameter

SC UPC

OM1 G.652.D/G.657.A1/G.657.A2

Operating Wavelength(nm)

850-1300

Insertion Loss (dB)

≤ 0.3

Return Loss (dB)

≥ 35

Repeatability (dB)

≤ 0.1

Interchangeability (dB)

≤ 0.2

Tensil Strength (N)

≥ 1000

Operating Temperature (℃）

 -20 ~ +85

Storage Temperature (℃）

 -40 ~ +85

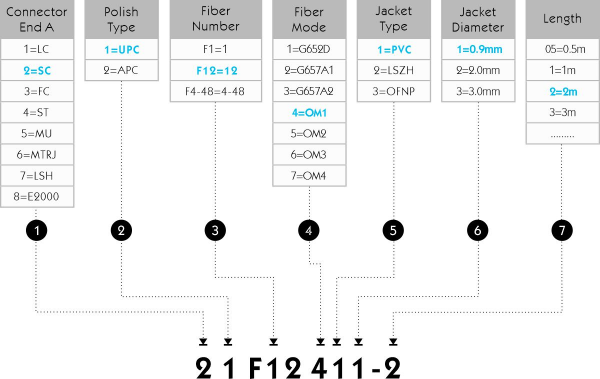

Zion Code

Description

21F12411-2

SC UPC 12 Fibers
OM1 Multimode Bunch PVC 0.9mm with Jacket FOPT

OEM/ODM service for you

ZION Communication has rich expiriences in
producing OEM/ODM cases becaused of Profession R & D team.

• Customized Logo

• Printing on Cable

• Label/PE bag/Carton design

• Different Color & Different Lengths Available
