Optical Fibre Pigtails
HELLOSIGNAL
50/125 (OM3)
Fiber System Equipment
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

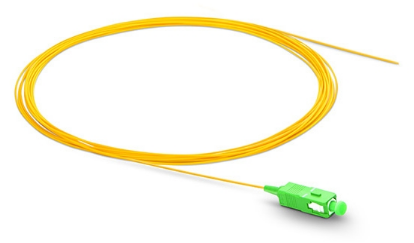

SC APC Simplex
G.652.D Single Mode PVC 0.9mm -2m(6ft) FOPT
22F1111-2
Fiber Optic Cable
Fiber Type：
Single-mode: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50(125),[(OM3, OM4) (50/125,Laser Optimization)]
900um/0.9mm Buffer Colour：
Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Customized : Green,Brown,White,Red,Black,Purple,Rose,Slate
900um/0.9mm Types：
Single Typical: 1 Fiber
Bunch Typical: 12 Fibers
Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm)：
Aramid yarn is laid over the cable core to serve as peripheral strength member.
Cable Jacket：
Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color：
Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Cable Length：
1m, 2m, 3m. other lengths on request

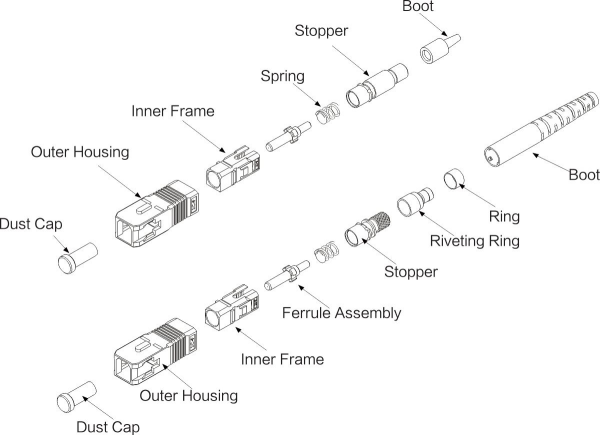

Connector Type: LC, SC, FC, ST, MU, MTRJ, LSH, E-2000
SC ( Subscriber Connector/Square Connector/Standard Connector)
Typical Application:
Telecom,GPON,EPON,GBIC
Fiber Type:
Single-Mode (SM) OS2
G.652.D / G.657.A1 / G.657.A2
Operating Wavelength:
1310 nm & 1550 nm
Optical Performance:
Insertion Loss: ≤ 0.3 dB (Low loss for high efficiency)
Return Loss: ≥ 55 dB (Excellent signal reflection control)
Repeatability: ≤ 0.1 dB (Stable performance over multiple connections)
Interchangeability: ≤ 0.2 dB (Consistent loss when switching connectors)
Mechanical Performance:
Tensile Strength: ≥ 1000N (High mechanical durability)
Environmental Conditions:
Operating Temperature: -20℃ to +85℃
Storage Temperature: -40℃ to +85℃
Zion Code: 21F12111U-2
Description: SC UPC 12 Fibers
G.652.D Single Mode Unjacketed Color-Coded FOPT
ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.
Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Color & Different Lengths Available
