Fiber Patch Cord
HELLOSIGNAL
LC Patch Cord
Fiber System Equipment
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Structure information | |||||||
Cord | Patch Cord & Pigtall | ||||||
A Side | Connector Type | SC / LC / ST / FC / D4 / E2000 / MU···· | |||||
Ferrule Type | UPC | APC | |||||
B Side | Connector Type | SC / LC / ST / FC / D4 / E2000 / MU···· | |||||
Ferrule Type | UPC | APC | |||||
Fiber Model | SM | G652D | G657A1 | G657A2 | G657B3 | G655 | ····· |
MM | OM1 | OM2 | OM3-150 | OM3-300 | OM4-550 | OM5 | |
Cable Diameter | Φ0.9mm | Φ2.0mm | Φ3.0mm | ····· | |||
Core Number | SX | DX | ····· | ||||
Jacket | Material | PVC | LSZH | OFNR | RE | TPU | ····· |
Color | Yellow | Blue | Green | Customized | |||
Cable Length | 1m | 2m | 3m | 5m | 10m | ····· | |
Technical Specifcation | |||||||
Connector Type | FC / SC / LC / ST / D4 / E2000 / MU | ||||||
Fiber Type | SM | MM | |||||
Insertion Loss(Typic) | ≤0.2 dB | ≤0.2 dB | |||||
Insertion Loss(Max) | ≤0.3 dB | ≤0.3 dB | |||||
Return Loss | APC | ≥60 dB | ≥35dB | ||||
UPC | ≥50 dB | ≥35dB | |||||
Mating Durability | ≤0.2 dB | ||||||
Durability | ≥1000 times | ||||||
Operating Temperature (℃） | -20~85 | ||||||
Operating Temperature (℃) | -40~85 | ||||||
| LC UPC to LC UPC Simplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable |

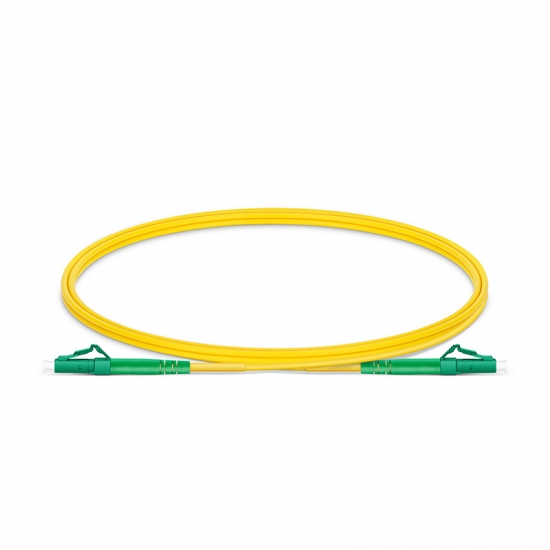

 | LC APC to LC APC Simplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |
 | LC UPC to LC APC Simplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable |

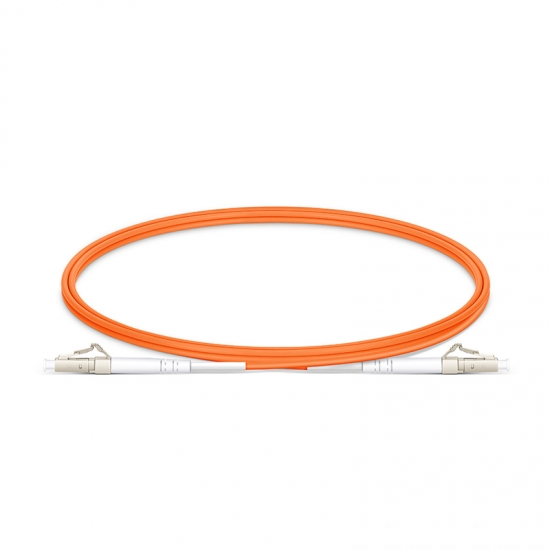

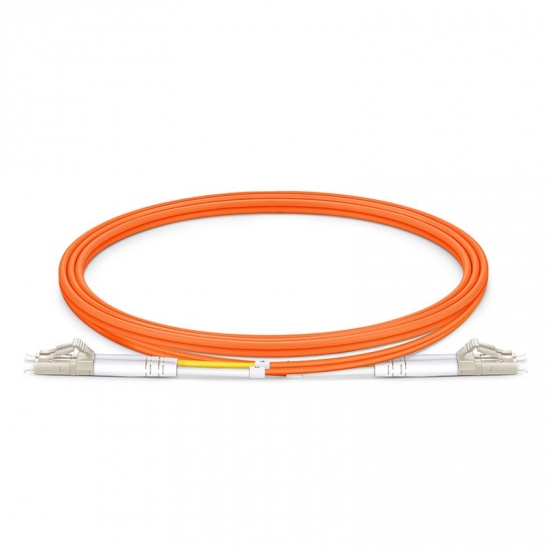

 | LC UPC to LC UPC Simplex OM1 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |

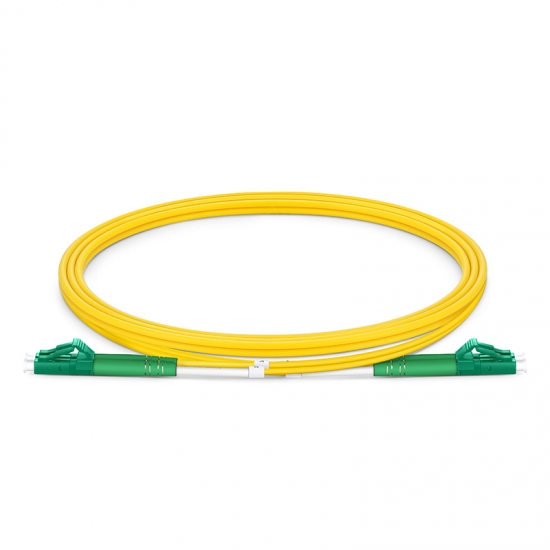

 | LC UPC to LC APC Duplex OS2 Single Mode PVC 2.0mm Fiber Optic Patch Cable |
 | LC APC to LC APC Duplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |
 | LC UPC to LC UPC Duplex OM1 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |
 | LC UPC to LC UPC Duplex OM2 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |
 | LC UPC to LC UPC Duplex OM3 Multimode PVC 2.0mm Fiber Optic Patch Cable |
 | LC UPC to LC UPC Duplex OM4 Multimode PVC 2.0mm Fiber Optic Patch Cable |

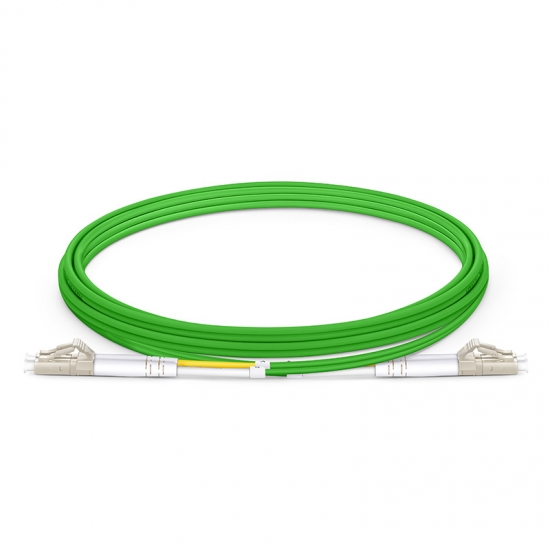

 | LC UPC to LC UPC Duplex OM5 Multimode Wideband PVC (OFNR) 2.0mm Fiber Optic Patch Cable |

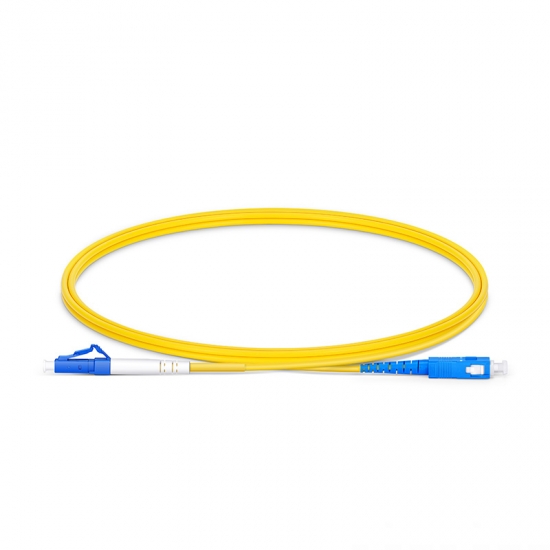

 | LC UPC to SC UPC Simplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |

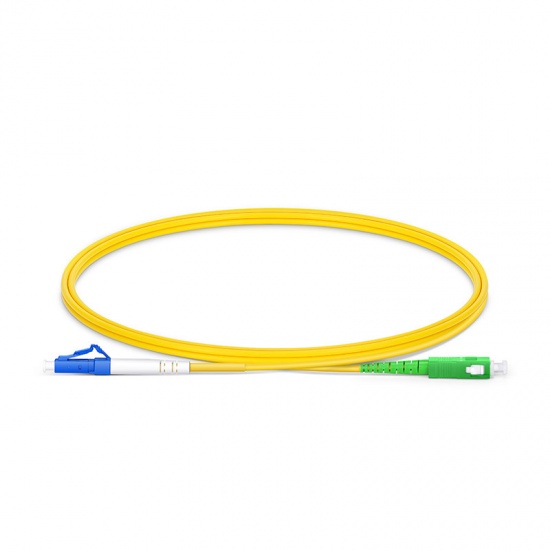

 | LC UPC to SC APC Simplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |

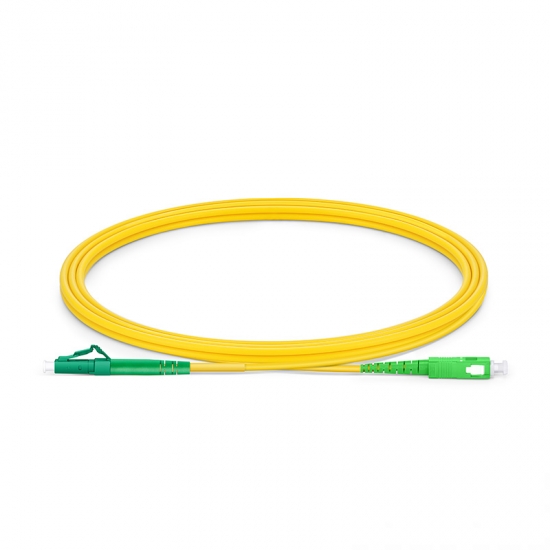

 | LC APC to SC APC Simplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |
 | LC UPC to SC UPC Duplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |
 | LC UPC to SC APC Duplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |

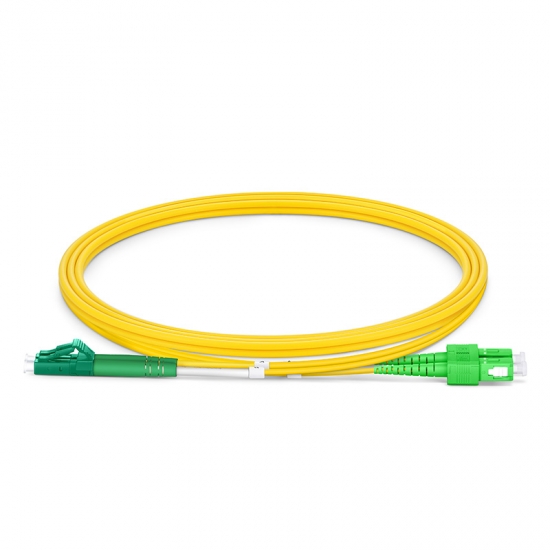

 | LC APC to SC APC Duplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |
 | LC UPC to SC UPC Duplex OM1 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |
 | LC UPC to SC UPC Duplex OM2 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |
 | LC UPC to SC UPC Duplex OM3 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |

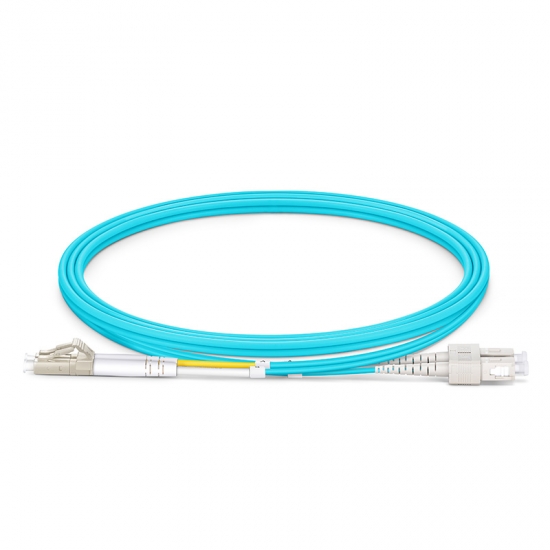

 | LC UPC to SC UPC Duplex OM4 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |

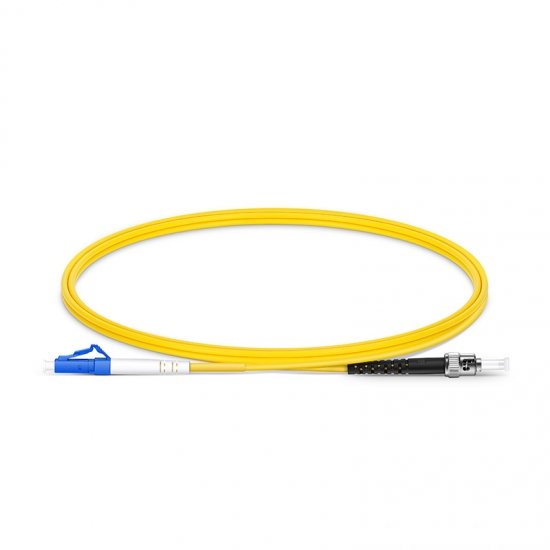

 | LC UPC to ST UPC Simplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |

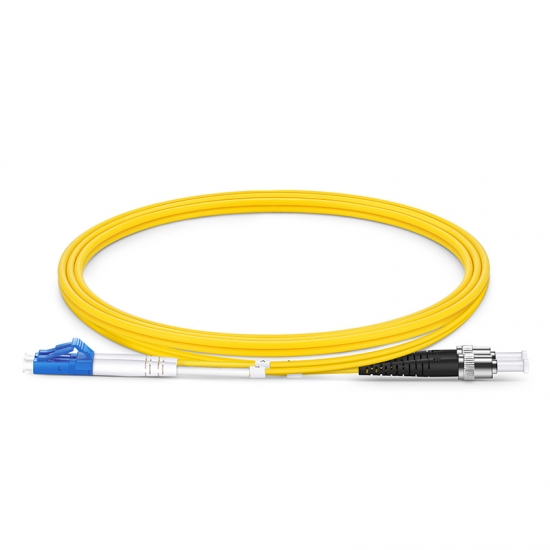

 | LC UPC to ST UPC Duplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |
 | LC UPC to ST UPC Duplex OM1 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |
 | LC UPC to ST UPC Duplex OM2 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |

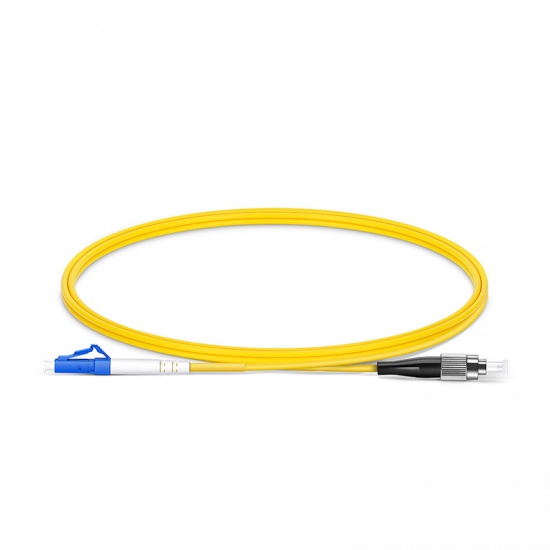

 | LC UPC to FC UPC Simplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable |

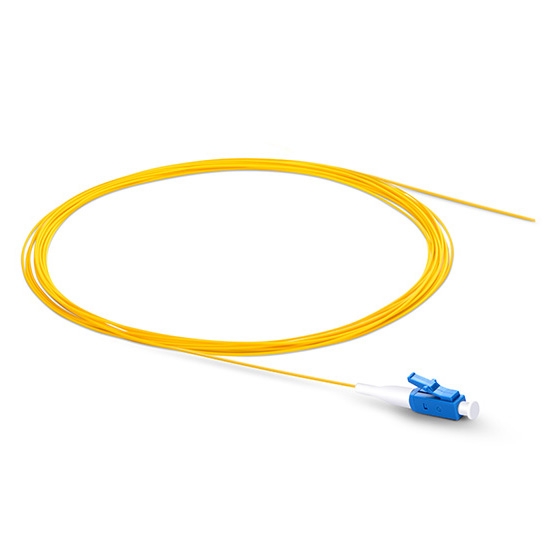

 | LC UPC Simplex OS2 Single Mode PVC 0.9mm Fiber Optic Pigtail |
 | LC APC Simplex OS2 Single Mode PVC 0.9mm Fiber Optic Pigtail |
 | LC UPC 12 Fibers OS2 Single Mode Bunch PVC 0.9mm Fiber Optic Pigtail |
 | LC UPC 12 Fibers OS2 Single Mode Unjacketed Color-Coded Fiber Optic Pigtail |

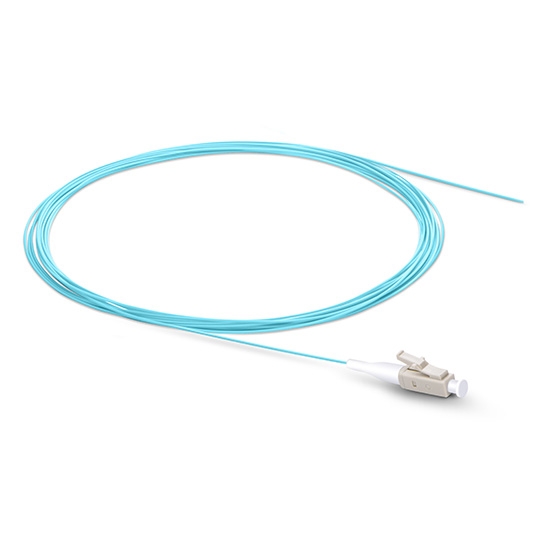

 | LC UPC Simplex OM3 Multimode PVC 0.9mm Fiber Optic Pigtail |

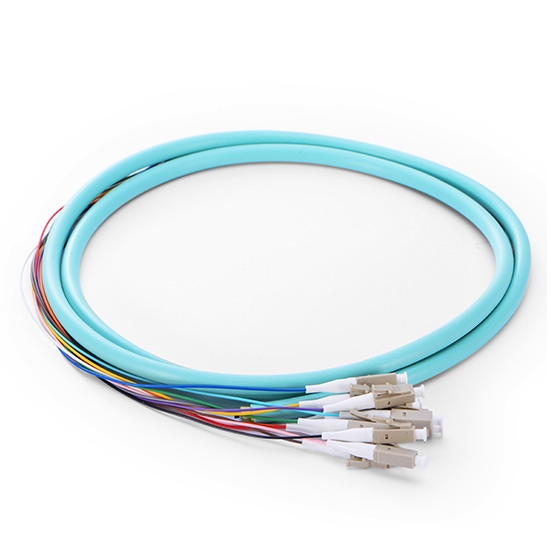

 | LC UPC 12 Fibers OM3 Multimode Bunch PVC 0.9mm Fiber Optic Pigtail |
