LC UPC 12 Fibers OM1 Multimode Bunch PVC 0.9mm with Jacket FOPT

  • Optical Fibre Pigtails

  • HELLOSIGNAL

  • 50/125 (OM3)

  • Fiber System Equipment

  • Normally 25 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Product Description


LC UPC 12 Fibers
OM1 Multimode Bunch PVC 0.9mm with Jacket FOPT
11F12411-2

1

Product Specification

Fiber Optic Cable

Fiber Type

Single-mode: OS2 ( G.652.D /  G.657.A1 / G.657.A2)

Multi-mode: OM1(62.5/125), OM2(50(125),
[(OM3, OM4) (50/125,Laser Optimization)]

900um/0.9mm Buffer Colour

Yellow:   SM: OS2 ( G.652.D /  G.657.A1 / G.657.A2)

Orange:  OM1, OM2

Aqua:     OM3, OM4

Customized : Green,Brown,White,Red,Black,Purple,Rose,Slate

900um/0.9mm Types

Single Typical: 1 Fiber

Bunch Typical: 12 Fibers

Customized: 4-48 Fibers

Aramid Yarn (2.0/3.0mm)

Aramid yarn is laid over the cable core
to serve as peripheral strength member.

Cable Jacket

Main material: PVC / LSZH / Plenum (OFNP)

OD: Simplex: 0.9/2.0/3.0mm    Duplex: 0.9/2.0/3.0mm

Jacket Color

Yellow:   SM: OS2 ( G.652.D /  G.657.A1 / G.657.A2)

Orange:  OM1, OM2

Aqua:     OM3, OM4

Cable Length

1m, 2m, 3m. other lengths on request










Product Specification

Connector

Connector Type

LC, SC, FC, ST, MU, MTRJ, LSH, E-2000



2

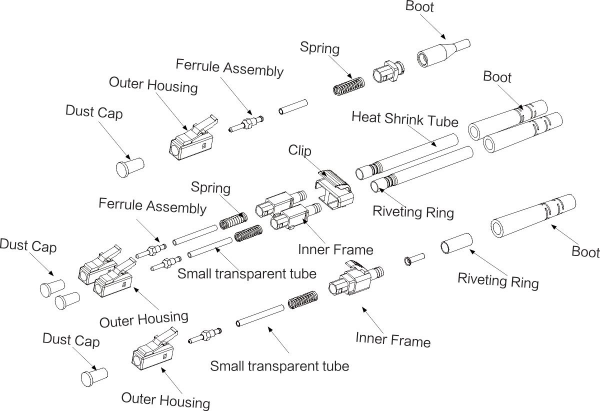

LC ( Lucent Connector/Little Connector/Local Connector)
Typical Application: High density connections,
SFP and SFP+ transceivers, XFP transceivers










3


Product Specification

Parameter

LC UPC

OM1 G.652.D/G.657.A1/G.657.A2

Operating Wavelength(nm)

850-1300

Insertion Loss (dB)

≤ 0.3

Return Loss (dB)

≥ 35

Repeatability (dB)

≤ 0.1

Interchangeability (dB)

≤ 0.2

Tensil Strength (N)

≥ 1000

Operating Temperature (℃)

 -20 ~ +85

Storage Temperature (℃)

 -40 ~ +85

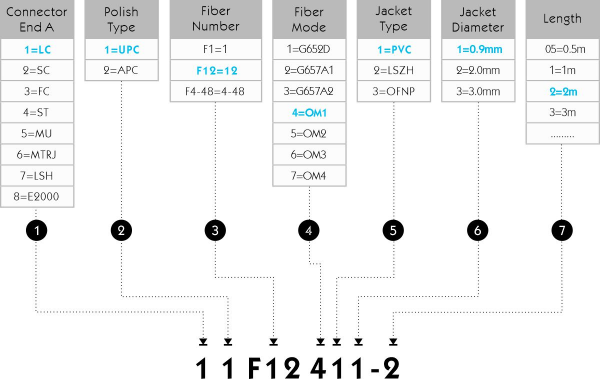

Zion Code

Description

11F12411-2

LC UPC 12 Fibers
OM1 Multimode Bunch PVC 0.9mm with Jacket FOPT


4


OEM/ODM service for you

ZION Communication has rich expiriences in
producing OEM/ODM cases becaused of Profession R & D team.

• Customized Logo

• Printing on Cable

• Label/PE bag/Carton design

• Different Color & Different Lengths Available
