Fiber Patch Cord
HELLOSIGNAL
7242110
Fiber System Equipment
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

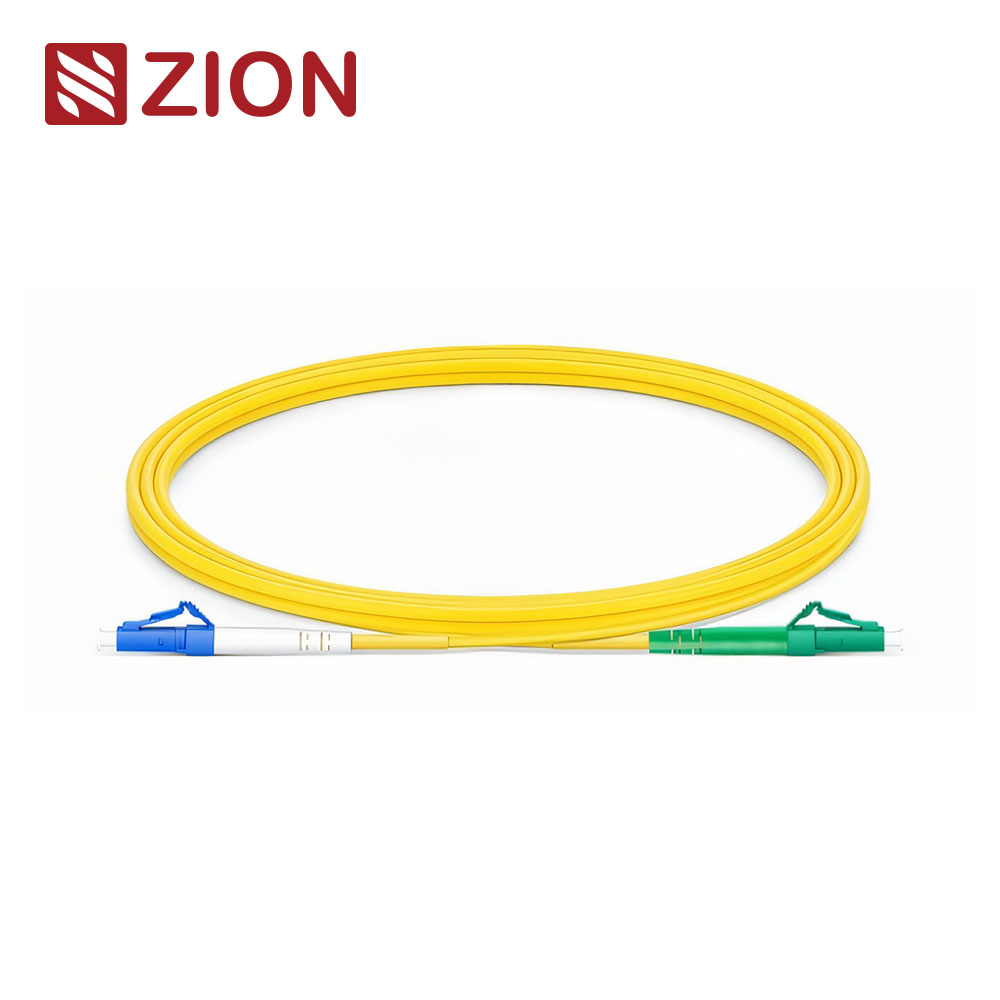

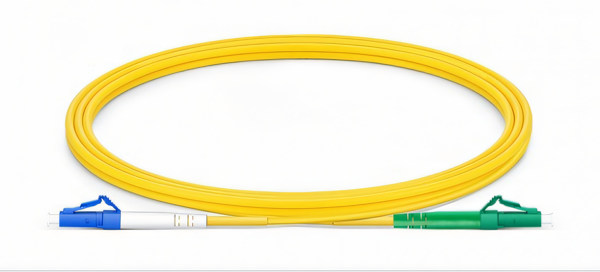

LC UPC to LC APC Simplex | |||||||||
 | |||||||||
Product Specification | |||||||||
Fiber Optic Cable | |||||||||
Fiber Type | Single-mode: OS2 ( G.652.D / G.657.B3 / G.657.A2) | ||||||||
Multi-mode: OM1(62.5/125), OM2(50(125), | |||||||||
Fiber Count | Simplex / Duplex | ||||||||
Cable Jacket | Main material: PVC / LSZH / Plenum (OFNP) | ||||||||
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm | |||||||||
Jacket Color | Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2) | ||||||||
Orange: OM1, OM2 | |||||||||
Aqua: OM3, OM4 | |||||||||
Cable Length | 6m. other lengths on request | ||||||||
Mechanical | Ferrule | Ceramic; (MTRJ: PS-Polyphenylene Sulphide) | |||||||
Apex Offset | ＜ 50um | ||||||||
Fiber Height | ± 100nm | ||||||||
Radius of Curvature | 7mm R ＜ 25mm (Excluding MTRJ) | ||||||||
Repeatability | ≤ 0.2dB 1,000 times mating cycles | ||||||||
Product Specification | |||||||||
Connector | |||||||||
Connector Type | LC, SC, FC, ST, MU, MTRJ, LSH, E-2000 | ||||||||
| LC ( Lucent Connector/Little Connector/Local Connector) | ||||||||
 | |||||||||

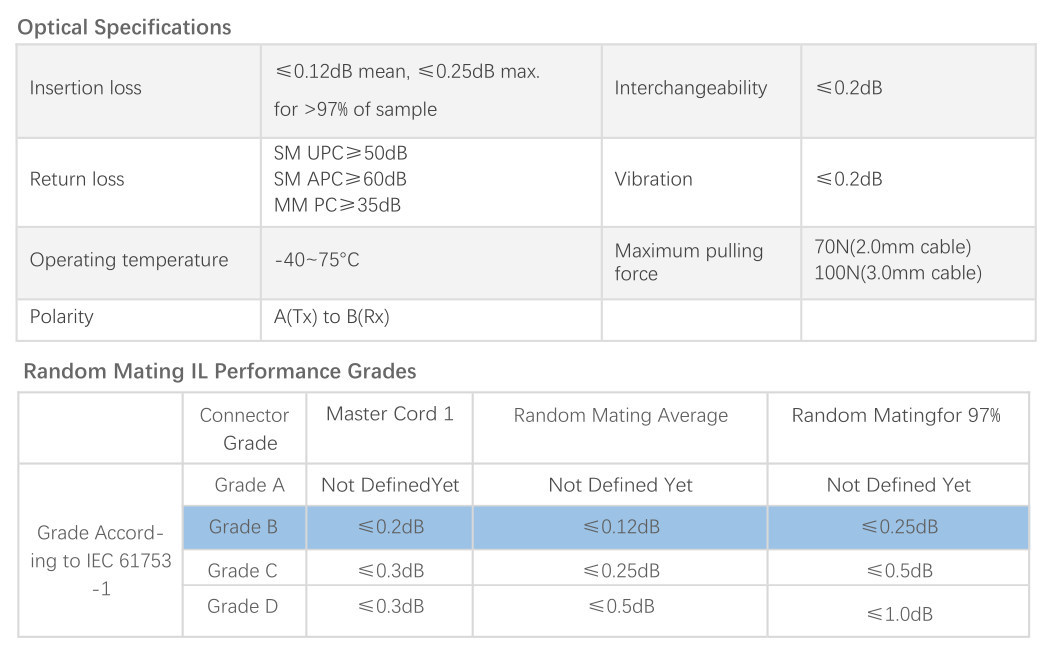

Product Specification | |||||||||
 | |||||||||
For Example | |||||||||

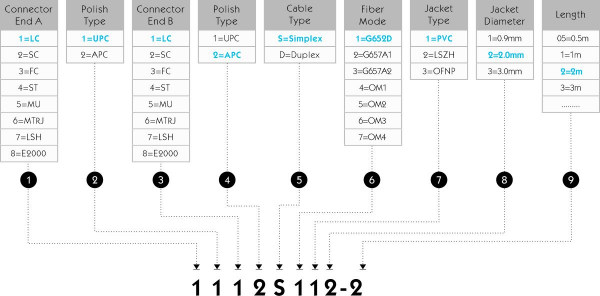

Zion Code | Description | ||||||||
1112S112-2(7242110) | LC UPC to LC APC Simplex | ||||||||
| |||||||||
OEM/ODM service for you | |||||||||
ZION Communication has rich expiriences in | |||||||||
• Customized Logo | |||||||||
• Printing on Cable | |||||||||
• Label/PE bag/Carton design | |||||||||
• Different Color & Different Lengths Available | |||||||||
| |||||||||
LC UPC to LC APC Simplex | |||||||||
| |||||||||
Product Specification | |||||||||
Fiber Optic Cable | |||||||||
Fiber Type | Single-mode: OS2 ( G.652.D / G.657.B3 / G.657.A2) | ||||||||
Multi-mode: OM1(62.5/125), OM2(50(125), | |||||||||
Fiber Count | Simplex / Duplex | ||||||||
Cable Jacket | Main material: PVC / LSZH / Plenum (OFNP) | ||||||||
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm | |||||||||
Jacket Color | Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2) | ||||||||
Orange: OM1, OM2 | |||||||||
Aqua: OM3, OM4 | |||||||||
Cable Length | 6m. other lengths on request | ||||||||
Mechanical | Ferrule | Ceramic; (MTRJ: PS-Polyphenylene Sulphide) | |||||||
Apex Offset | ＜ 50um | ||||||||
Fiber Height | ± 100nm | ||||||||
Radius of Curvature | 7mm R ＜ 25mm (Excluding MTRJ) | ||||||||
Repeatability | ≤ 0.2dB 1,000 times mating cycles | ||||||||
Product Specification | |||||||||
Connector | |||||||||
Connector Type | LC, SC, FC, ST, MU, MTRJ, LSH, E-2000 | ||||||||
| LC ( Lucent Connector/Little Connector/Local Connector) | ||||||||
| |||||||||
Product Specification | |||||||||
| |||||||||
For Example | |||||||||
Zion Code | Description | ||||||||
1112S112-2(7242110) | LC UPC to LC APC Simplex | ||||||||
| |||||||||
OEM/ODM service for you | |||||||||
ZION Communication has rich expiriences in | |||||||||
• Customized Logo | |||||||||
• Printing on Cable | |||||||||
• Label/PE bag/Carton design | |||||||||
• Different Color & Different Lengths Available | |||||||||
| |||||||||
