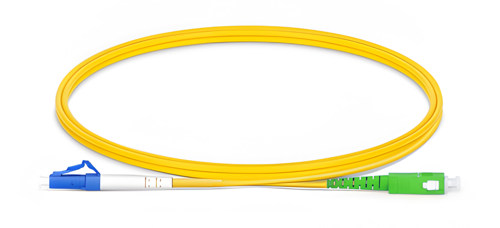

LC UPC to SC APC Simplex G.657.B3 Single Mode LSZH 3.0mm -6m 1122S223-6(7242127)

Product Specification

Fiber Optic Cable

Fiber Type

Single-mode: OS2 ( G.652.D /  G.657.B3 / G.657.A2)

Multi-mode: OM1(62.5/125), OM2(50(125),
[(OM3, OM4) (50/125,Laser Optimization)]

Fiber Count

Simplex / Duplex

Cable Jacket

Main material: PVC / LSZH / Plenum (OFNP)

OD: Simplex: 0.9/2.0/3.0mm    Duplex: 0.9/2.0/3.0mm

Jacket Color

Yellow:   SM: OS2 ( G.652.D /  G.657.A1 / G.657.A2)

Orange: OM1, OM2

Aqua:     OM3, OM4

Cable Length

6m. other lengths on request

Mechanical
Specification

Ferrule

Ceramic; (MTRJ: PS-Polyphenylene Sulphide)

Apex Offset

＜ 50um

Fiber Height

± 100nm

Radius of Curvature

7mm R ＜ 25mm (Excluding MTRJ)

Repeatability

≤ 0.2dB 1,000 times mating cycles

Product Specification

Connector

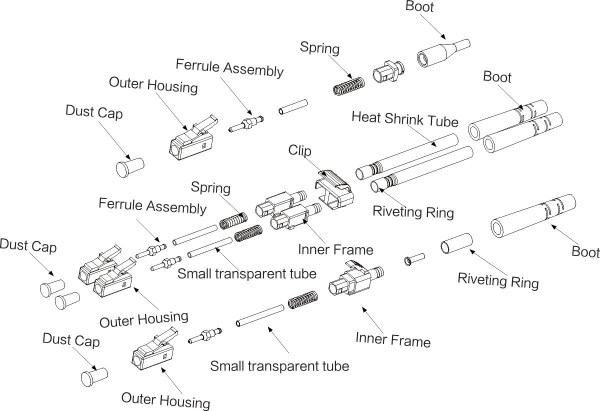

A Connector Type

LC, SC, FC, ST, MU, MTRJ, LSH, E-2000

LC ( Lucent Connector/Little Connector/Local Connector)
Typical Application: High density connections,
SFP and SFP+ transceivers, XFP transceivers

Connector

B Connector Type

LC, SC, FC, ST, MU, MTRJ, LSH, E-2000

SC ( Subscriber Connector/Square Connector/Standard Connector)
Typical Application:
Telecom,GPON,EPON,GBIC

Product Specification

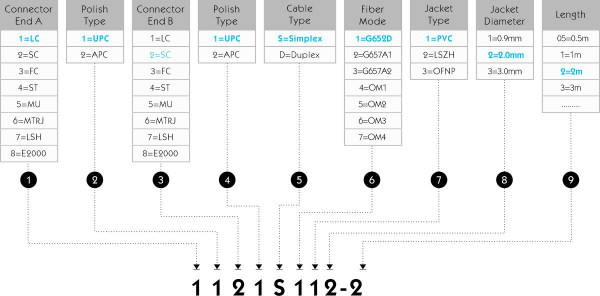

Zion Code

Description

1121S112-2（7242121）

LC UPC to SC UPC Simplex
G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

OEM/ODM service for you

ZION Communication has rich expiriences in
producing OEM/ODM cases becaused of Profession R & D team.

• Customized Logo

• Printing on Cable

• Label/PE bag/Carton design

• Different Color & Different Lengths Available
