Fiber Patch Cord
HELLOSIGNAL
LC Patch Cord
Fiber System Equipment
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

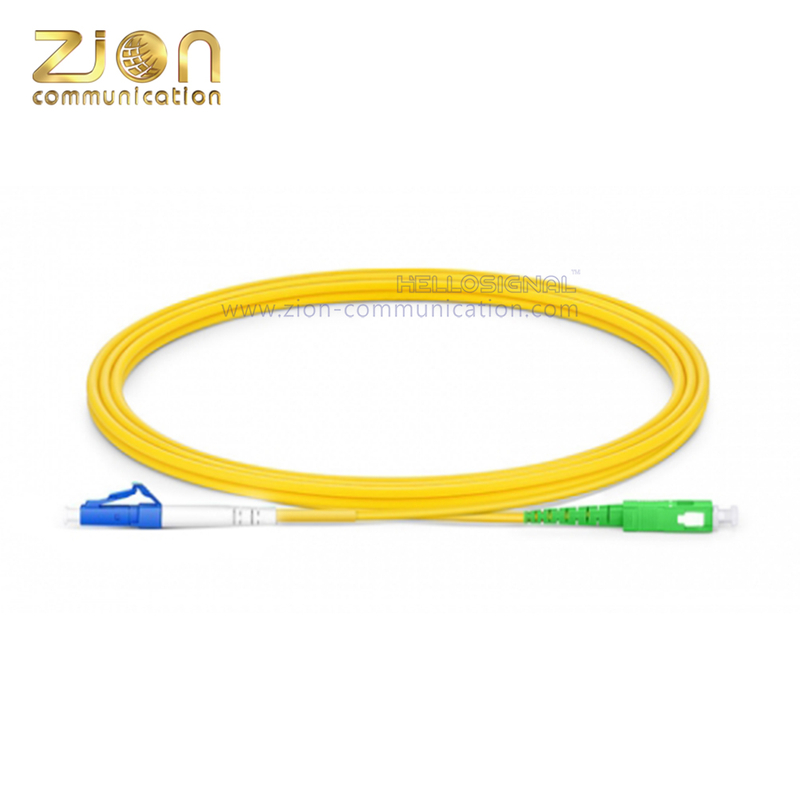

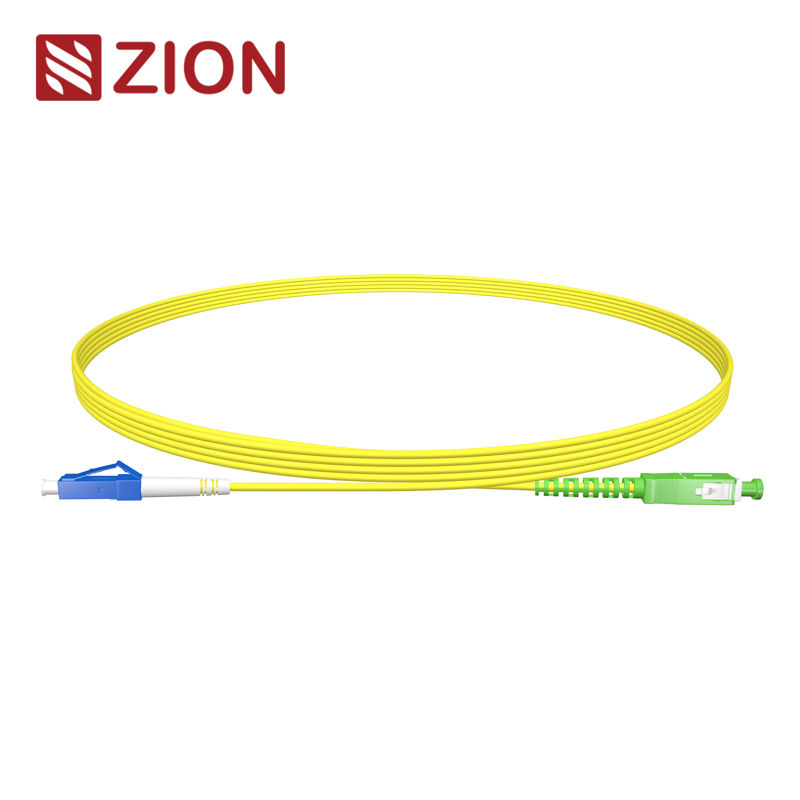

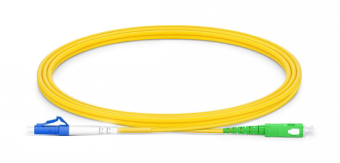

LC UPC to SC APC Simplex OS2 | ||||||||
| ||||||||
Product Specification | ||||||||
Connector Type | LC UPC to SC APC | |||||||
Fiber Count | Simplex | |||||||
Fiber Mode | OS2 9/125μm | |||||||
Fiber Grade | G.657.A1 (Compatible with G.652.D) | |||||||
Cable Jacket | PVC/LSZH/OFNP | |||||||
Cable Diameter | 0.9mm/2.0mm/3.0mm | |||||||
Cable Length | 0.5m/1m/2m/3m/.... | |||||||
Parameter | LC UPC | SC APC | ||||||
SM(OS2)G.652.D/G.657.A1/G.657.A2 | ||||||||
Operating Wavelength(nm) | 1310-1550 | |||||||
Insertion Loss (dB) | ≤ 0.3 | ≤ 0.3 | ||||||
Return Loss (dB) | ≥ 55 | ≥ 60 | ||||||
Repeatability (dB) | ≤ 0.1 | ≤ 0.1 | ||||||
Interchangeability (dB) | ≤ 0.2 | ≤ 0.2 | ||||||
Tensil Strength (N) | ≥ 1000 | ≥ 1000 | ||||||
Operating Temperature (℃） | -20 ~ +85 | -20 ~ +85 | ||||||
Storage Temperature (℃） | -40 ~ +85 | -40 ~ +85 | ||||||
LC UPC to FC APC Simplex OS2 | ||||||||
Connector | Polish | Connector | Polish | Cable | Fiber | Jacket | Jacket | Length |
1=LC | 1=UPC | 2=SC | 2=APC | S=Simplex | 1=G652D | 1=PVC | 1=0.9mm | 05=0.5m |
2=G657A1 | 2=LSZH | 2=2.0mm | 1=1m | |||||
3=G657A2 | 3=OFNP | 3=3.0mm | 2=2m | |||||
3=3m | ||||||||
....... | ||||||||
Example Part Number | ||||||||
1122S111-05 | ||||||||
Order Informations: | ||||||||
Marking | HELLOSIGNAL LC UPC to SC APC Simplex OS2 Patch Cable ×××M | |||||||
Package | PE bags and Customized cartons | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM | |||||||
