Start with the approved assembly definition

Request the purchase-order line, supplier part number, approved assembly drawing and current datasheet in one review package. Record the fiber category, populated fiber count, connector format, pin configuration, polish, length and tolerance. Specify any fan-out lengths, labeling positions and pulling protection. A catalog family description is not precise enough to identify a custom assembly.

MPO systems can use different fiber counts and arrangements. Do not infer the populated positions, lane assignment or mating compatibility from jacket color or the word MPO. Confirm the actual interfaces at both ends, including any adapters, cassettes or transceivers in the planned channel. ZION’s optical communication component range provides a starting point for identifying the component categories to include in the assembly schedule.

Freeze the package revision before reviewing test results. If the drawing changes after testing, identify whether a new test or label correction is needed. An approval for one assembly length or connector arrangement should not silently apply to every variant on the purchase order.

Request an insertion loss report with a clear test scope

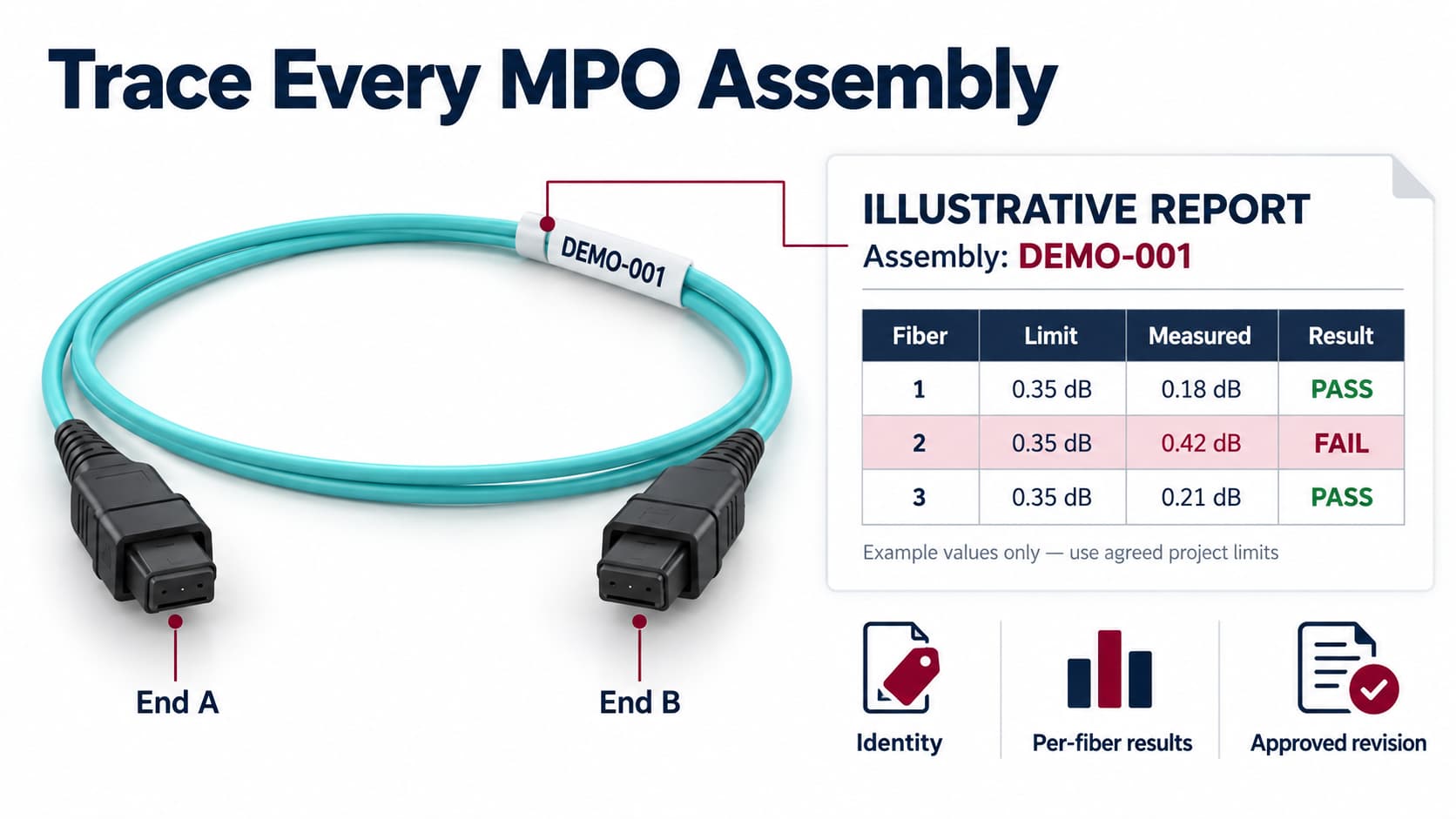

The MPO test report should identify the assembly and the fibers tested. Ask for per-fiber measured values, the applied acceptance limits, wavelength, test method, reference setup, test direction as specified, instrument identification and test date. Request calibration status according to the agreed quality requirements. An overall pass label is difficult to review when its underlying limits are missing.

State whether the report covers the assembly alone or an end-to-end channel that includes other components. A factory assembly result and an installed channel result have different boundaries. Use the approved application loss budget to define the channel requirement, and the agreed assembly specification to define the factory release requirement. Do not apply one universal loss limit to every MPO design.

If return loss is required, list it separately with its method and acceptance criterion. Insertion loss and return loss are different measurements; one does not establish the other. Where tests use different setups or wavelengths, avoid treating their numbers as directly interchangeable without reviewing the method.

Fluke Networks’ multi-fiber testing guidance explains the distinct roles of insertion-loss measurement, polarity verification and connector inspection. Use that distinction when designing the document request: an optical loss result alone does not establish that every connection is correctly routed or that the end faces meet the agreed inspection criteria.

Verify polarity across the intended channel

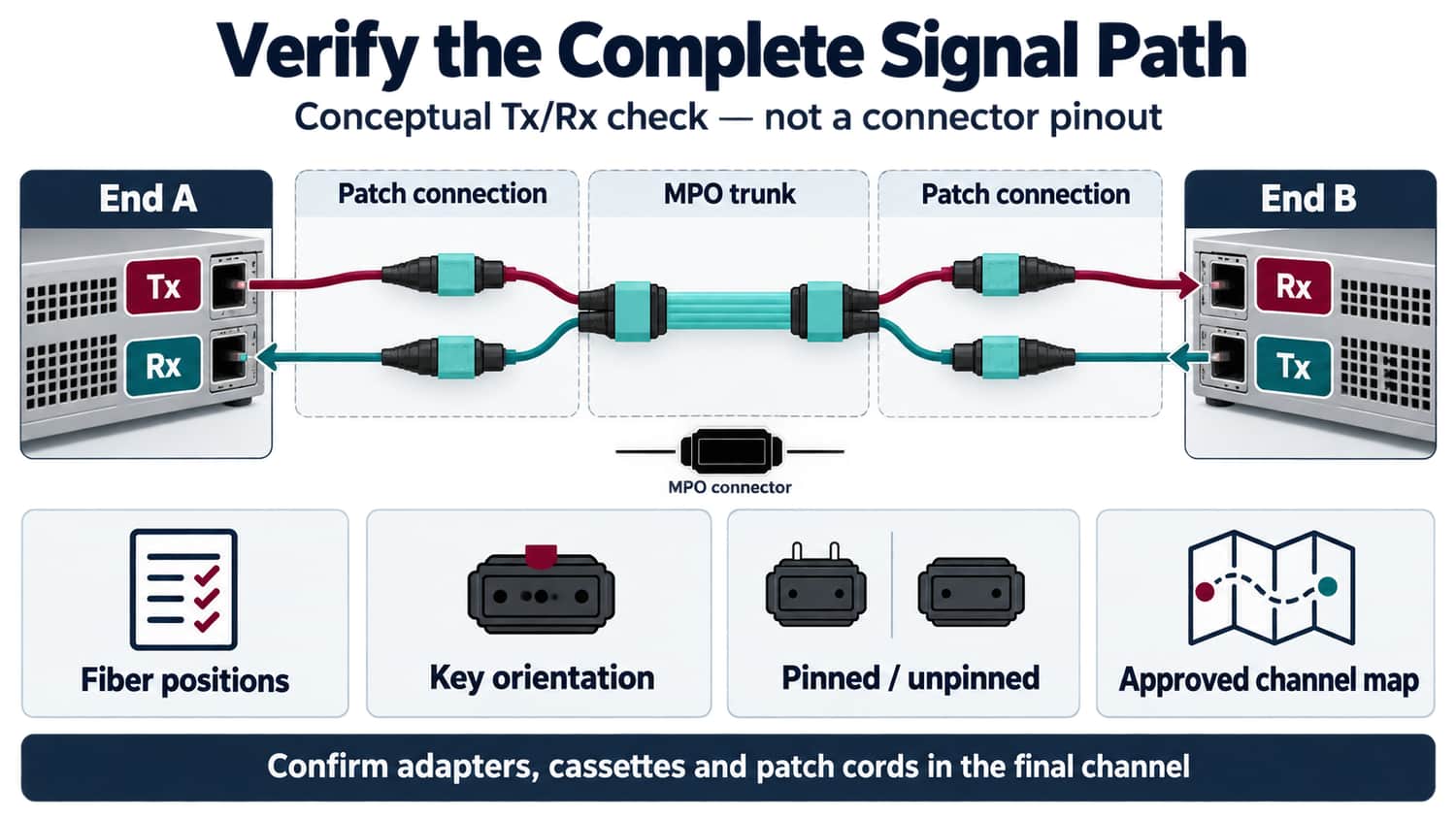

Fiber polarity verification should demonstrate the required transmit-to-receive path through the complete planned connection. Ask for an End A to End B mapping with position numbers and key orientation clearly defined. Record pinned and unpinned interfaces separately from the fiber mapping: connector mating and signal routing are related checks, but they are not the same attribute.

If the order uses Type A, Type B or Type C terminology, pair the label with an explicit mapping drawing. Review that drawing against the selected channel architecture rather than assuming a cable type guarantees the final result. Arrays and parallel optical interfaces may use lane arrangements that need additional detail beyond a familiar polarity label.

• Identify the viewing direction used in connector diagrams so left and right positions cannot be interpreted differently.
• Include adapter orientation, cassette mapping and patching arrangements where they affect the end-to-end result.
• Ask the supplier to link the verification record to the actual assembly identity or agreed production traceability method.
• Treat changes to a reconfigurable connector as a controlled change and verify the final supplied configuration.

A polarity disagreement should be resolved before dispatch. Marking a box with the intended type does not correct a different internal fiber map. Preserve the approved map in the installation package so site staff can compare the received product with the channel design.

Ask for end-face inspection evidence

Fiber end-face inspection addresses contamination and damage at the connector surface. Specify the inspection criteria, required coverage, connector-side identification and result format in the order. Where the contract references a standard such as IEC 61300-3-35, identify the applicable edition and criteria rather than accepting an unexplained statement that inspection was performed.

Request records that can be associated with the assembly and the inspected end. Depending on the agreed quality plan, these may include images, automated grading records and the final pass/fail status. Define whether every connector is recorded or whether a documented sampling arrangement applies; do not let an example photograph stand in for unspecified production coverage.

If an end face fails inspection, the disposition should identify cleaning, reinspection, rework or replacement as appropriate. Record the final accepted state and protect the connector for shipment. Dust caps and packaging help protect the assembly, but their presence is not evidence of surface cleanliness. Receiving and installation teams should inspect before mating, following the connector and inspection-equipment procedures.

Reconcile labels, packing and shipment documents

The physical shipment and the document package should tell the same story. Request a packing list with quantities by ordered part number and a practical way to trace each assembly or agreed lot to its results. Define both end labels when installers need to identify orientation, destination rack or panel position.

Do not request certificates simply because they look reassuring. Identify the project’s actual documentation requirements and check that each supplied document applies to the relevant product and scope. A general company certificate and an assembly-specific test result serve different purposes.

Make the shipment release decision explicit

Use a release sheet with the order line, reviewed revision, evidence status, open exceptions, reviewer and decision. Classify missing evidence separately from failed performance. A missing report may require document recovery; a failed result may require rework and retesting. Both need resolution, but the next action is different.

• Release when required records are complete, traceable and consistent with the agreed acceptance criteria.
• Hold affected assemblies when configuration, identity or performance remains unresolved.
• Use a partial release only when accepted items can be clearly separated and the purchaser has authorized that delivery arrangement.
• Retain revised reports and dispositions so the final package shows how each exception was closed.

Factory acceptance does not replace installed-link acceptance. Transport, handling, mating interfaces and final routing introduce conditions not represented by an isolated factory assembly test. Preserve the factory baseline and perform the site checks defined for the completed channel. This separation gives the receiving team a clear starting point if commissioning results differ.
