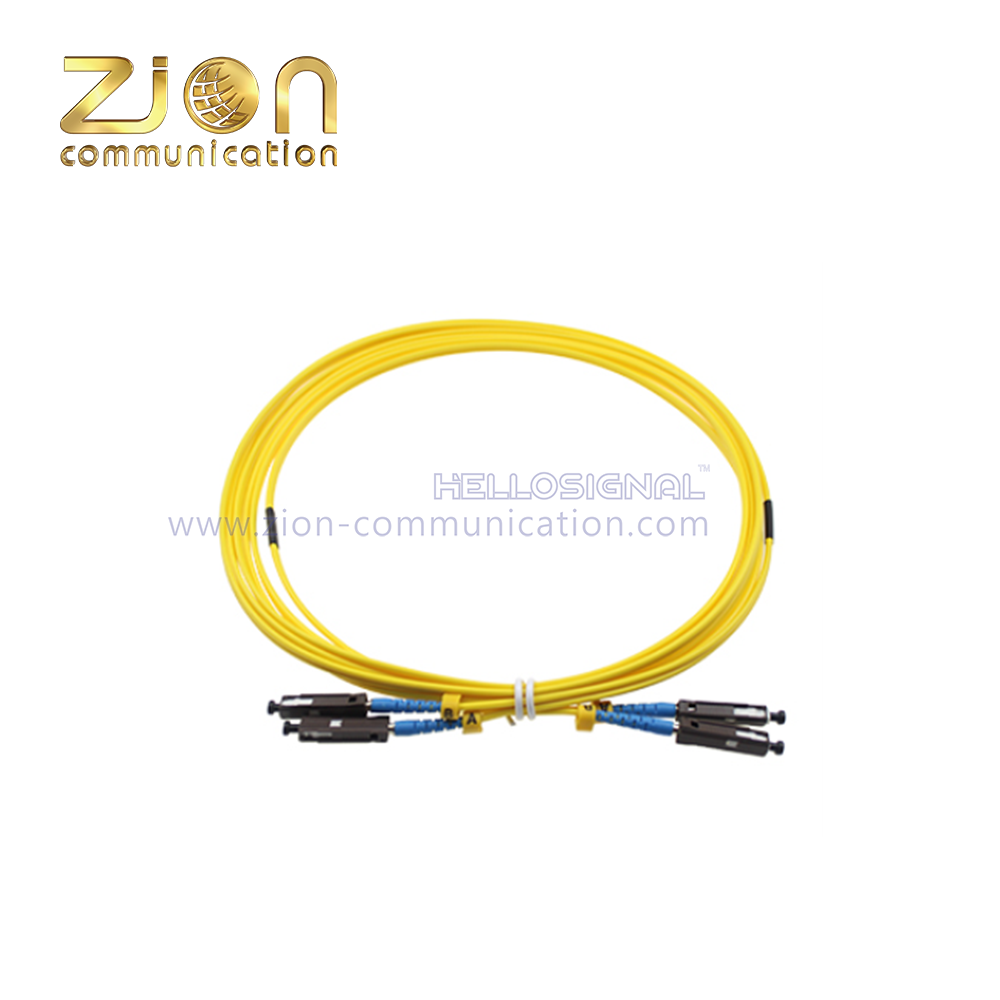

MU Patch Cords

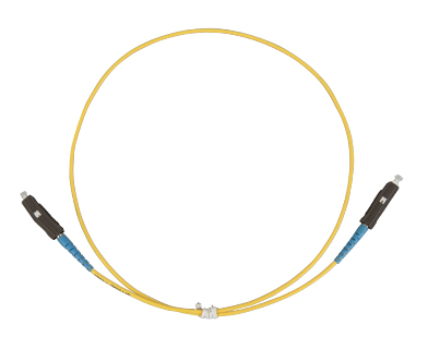

MU SM SX

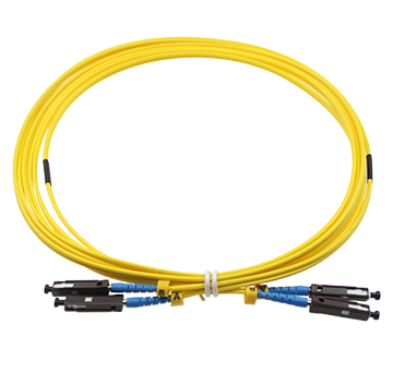

MU SM DX

Structure information

Cord

Patch Cord & Pigtall

A Side

Connector Type

SC / LC / ST / FC / D4 / E2000 / MU····

Ferrule Type

UPC

APC

B Side

Connector Type

SC / LC / ST / FC / D4 / E2000 / MU····

Ferrule Type

UPC

APC

Fiber Model

SM

G652D

G657A1

G657A2

G657B3

G655

·····

MM

OM1

OM2

OM3-150

OM3-300

OM4-550

OM5

Cable Diameter

Φ0.9mm

Φ2.0mm

Φ3.0mm

·····

Core Number

SX

DX

·····

Jacket

Material

PVC

LSZH

OFNR

RE

TPU

·····

Color

Yellow

Blue

Green

Customized

Cable Length

1m

2m

3m

5m

10m

·····

Technical Specifcation

Connector Type

FC / SC / LC / ST / D4 / E2000 / MU ···

Fiber Type

SM

MM

Insertion Loss(Typic)

≤0.2 dB

≤0.2 dB

Insertion Loss(Max)

≤0.3 dB

≤0.3 dB

Return Loss

APC

≥60 dB

≥35dB

UPC

≥50 dB

≥35dB

Mating Durability

≤0.2 dB

Durability

≥1000 times

Operating Temperature (℃）

-20~85

Operating Temperature (℃)

-40~85
