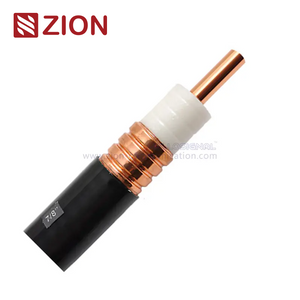

7/8" Low Loss RF Coaxial Cable

■ Construction Parameters：

· Inner Conductor

· Material: Smooth Copper Tube

· Diameter: 9.40±0.10mm

· Insulation

· Material: Foamed PE

· Diameter: 22.80±0.30mm

· Outer Conductor

· Material: Annular Corrugated Copper Tube

· Diameter: 25.20±0.30mm

· Jacket

· Material: PE or LSZH

· Diameter: 27.50±0.30mm

■ Descriptions：

· SKU: 7101109-PEBK-500M

· Description: 7/8" Low Loss RF Coax Cable PE Black Jacket (CPR Fca) 500M

· SKU: 7101109-OEBK-500M

· Description: 7/8" Low Loss RF Coax Cable LSZH Black Jacket (CPR Eca) 500M

· SKU: 7101109-OB2BK-500M

· Description: 7/8" Low Loss RF Coax Cable LSZH Black Jacket (CPR B2ca-s1b,d0,a1) 500M

· SKU: 7101109-××××-×××M

· Description: ××××-×××M will be named by Test inquired and Packing Length.

■ Marking on Cable Jacket：

· Marking: ZION 7/8" Low Loss RF COAXIAL CABLE 7101109-××××-×××M

■ Characteristics：

· Capacitance: 74 pF/m

· Impedance: 50 ±2 Ω

· Velocity of Propagation: 0.9

· Peak Power Rating: 90 KW

· Max. Operating Frequency: 5.0 GHz

· Insulation Resistance: >10000 MΩ.km

· DC Breakdown Voltage: 10000 V

· Jacket Spark Test Voltage: 8000 Vrms

· Inner Conductor DC Resistance: ≤ 2.50 Ω/km

· Outer Conductor DC Resistance: ≥ 2.30 Ω/km

· Shielding Attenuation: ≥ 120dB

· VSWR:

· 690MHz-960MHz: ≤ 1.15

· 1700MHz-2700MHz: ≤ 1.15

· 3300MHz-4200MHz: ≤ 1.20

· 4400MHz-5000MHz: ≤ 1.20

· PIM (Intermodulation 3rd order, 2*20W): ≤ -160 dBc

■ Mechanical Properties：

· Bending Radius (Single Bend): 125 mm

· Bending Radius (Repeated Bend): 250 mm

· Bending Moment: 16 Nm

· Flat Plate Crush Strength: 10 N/mm

· Tensile Strength: 1450 N

■ Environmental Specifications：

· PE Jacket

· Installation Temperature: -40℃ to +60 ℃

· Operating Temperature: -55℃ to +85 ℃

· Storage Temperature: -70℃ to +85 ℃

· LSZH Jacket

· Installation Temperature: -20℃ to +60 ℃

· Operating Temperature: -30℃ to +80 ℃

· Storage Temperature: -30℃ to +80 ℃

■ Attenuation (20℃)：

· 200 MHz: 1.66 dB/100m, Average Power: 5.05 KW

· 450 MHz: 2.55 dB/100m, Average Power: 3.29 KW

· 800 MHz: 3.48 dB/100m, Average Power: 2.41 KW

· 900 MHz: 3.71 dB/100m, Average Power: 2.26 KW

· 1800 MHz: 5.44 dB/100m, Average Power: 1.54 KW

· 2000 MHz: 5.77 dB/100m, Average Power: 1.45 KW

· 2200 MHz: 6.09 dB/100m, Average Power: 1.38 KW

· 2500 MHz: 6.55 dB/100m, Average Power: 1.28 KW

· 2700 MHz: 6.84 dB/100m, Average Power: 1.23 KW

· 3000 MHz: 7.27 dB/100m, Average Power: 1.15 KW

· 3500 MHz: 7.95 dB/100m, Average Power: 1.05 KW

· 4000 MHz: 8.6 dB/100m, Average Power: 0.97 KW

· 5000 MHz: 9.81 dB/100m, Average Power: 0.85 KW

■ Standards：

· Fire Resistant: IEC 60754-1, IEC 60754-2, IEC 60332-1, IEC 60332-2, IEC 61034-1, IEC 60332-3-24

· RoHS: Compliant with RoHS 2011/65/EU

· REACH: Compliant

· CPR: CPR EURO Level: Fca, Eca, B2ca-s1b,d0,a1

■ Characteristics：

· Capacitance: 78 pF/m

· Impedance: 50 ±1 Ω

· Velocity of Propagation: 0.85

· Peak Power Rating: 7.5 kW

· Maximum Operating Frequency: 19 GHz

· Insulation Resistance: >10000 MΩ.km

· DC Breakdown Voltage: 2000 V

· Jacket Spark Test Voltage: 3000 Vrms

· Inner Conductor DC Resistance: ≤ 5.52 Ω/km

· Outer Conductor DC Resistance: ≤ 6.50 Ω/km

· Shielding Attenuation: ≥120 dB

· VSWR:

· 30 MHz - 2700 MHz: ≤ 1.15

· 3300 MHz - 4200 MHz: ≤ 1.15

· 4400 MHz - 5000 MHz: ≤ 1.20

· PIM (Intermodulation, 3rd order, 2*20W): ≤ -158 dBc

■ Mechanical Properties：

· Bending Radius (Single Bend): 40 mm

· Bending Radius (Repeated Bend): 80 mm

· Bending Moment: 1.4 Nm

· Flat Plate Crush Strength: 10 N/mm

· Tensile Strength: 560 N

■ Environmental Specifications：

· Installation Temperature:

· PE Jacket: -40°C to +60°C

· LSZH Jacket: -20°C to +60°C

· Operating Temperature:

· PE Jacket: -55°C to +85°C

· LSZH Jacket: -30°C to +80°C

· Storage Temperature:

· PE Jacket: -70°C to +85°C

· LSZH Jacket: -30°C to +80°C

■ Attenuation (20℃)：

· 200 MHz: 6.1 dB/100m, 1.21 kW

· 450 MHz: 9.15 dB/100m, 0.8 kW

· 800 MHz: 12.4 dB/100m, 0.59 kW

· 900 MHz: 13.2 dB/100m, 0.55 kW

· 1800 MHz: 19.1 dB/100m, 0.38 kW

· 2000 MHz: 20.2 dB/100m, 0.36 kW

· 2200 MHz: 21.3 dB/100m, 0.34 kW

· 2500 MHz: 22.9 dB/100m, 0.32 kW

· 2700 MHz: 24.1 dB/100m, 0.31 kW

· 3000 MHz: 25.3 dB/100m, 0.29 kW

· 3400 MHz: 27.5 dB/100m, 0.27 kW

· 4000 MHz: 29.7 dB/100m, 0.25 kW

· 5000 MHz: 33.7 dB/100m, 0.22 kW

· 6000 MHz: 39.5 dB/100m, 0.2 kW

· Note: Maximum attenuation value shall be 105% (some will be 110%) of the above nominal attenuation value.

■ Standards：

· Fire Resistant: IEC 60754-1, IEC 60754-2, IEC 60332-1, IEC 60332-2, IEC 61034-1, IEC 60332-3-24

· RoHS: Compliant with RoHS 2011/65/EU

· REACH: Compliant

· CPR: CPR EURO Level: Fca, Eca

■ SKU Information：

· 7101102-PEBK-500M: 1/4" RF Coax Cable PE Black Jacket (CPR Fca) 500M

· 7101102-OEBK-500M: 1/4" RF Coax Cable LSZH Black Jacket (CPR Eca) 500M

· 7101102-××××-×××M: ××××-×××M will be named by Test inquired and Packing Length

■ Marking on Cable Jacket：

· Text: ZION 1/4" RF COAXIAL CABLE 7101102-××××-×××M

■ Packing：

· Length: 500M (Standard)
