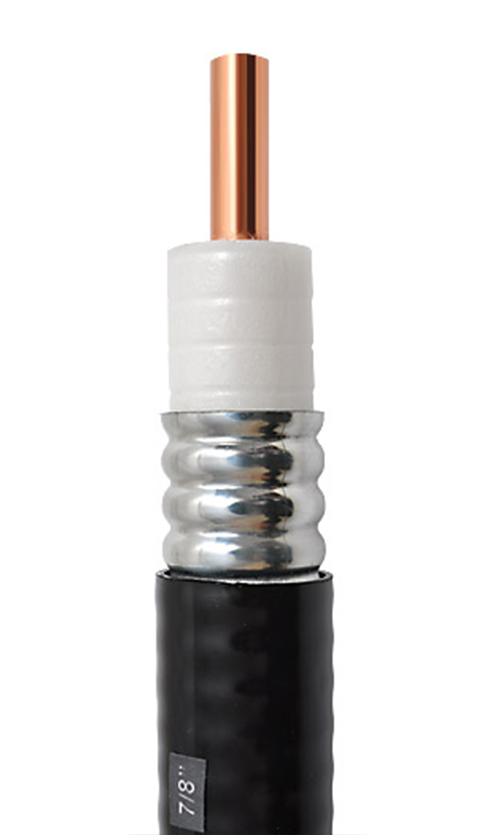

NO.7101111 7/8'' AL Low Loss RF

7/8"  AL Low Loss RF Corrugated 50 ohm coaxial cable
NO.7101111

Construction Parameters:

Inner Conductor

9.45±0.10mm Smooth Copper Tube

Insulation

22.50±0.20mm Foamed PE

Outer Conductor

25.40±0.20mm Annular Corrugated Aluminum Tube

Jacket

27.50±0.20mm PE, Black

Jacket Thickness

＞1.10mm

Application

Electrical Characteristics:

Capacitance

73 pF/m

Impedance

50 Ω

Velocity of Propagation

0.91

Peak Power Rating

90 KW

Peak Voltage

3.2 KV

Insulation Resistantce

>10000 MΩ.km

Insulation Voltage

8 KV

Inner Conductor DC Resistance

2.10 Ω/km

Outer Conductor DC Resistance

1.32 Ω/km

VSWR

800MHz-1000MHz

1.13

1700MHz-2200MHz

1.15

2500MHz-3000MHz

1.15

Mechanical and Envrionmental Properties:

Bending Radius (Single Bend)

120 mm

Bending Radius (Repeated Bend)

250 mm

Operating Temp Range

-55 to +85 ℃

Cable Diamensions

27.50±0.20mm

Attenuation(20℃):

Frequency (MHZ)

Attenuation (dB/100m)

Average Power (KW)

150

1.62

4.83

450

2.85

2.88

800

3.93

2.09

900

4.15

1.98

1000

4.50

1.92

1500

5.58

1.55

1800

6.17

1.35

2000

6.52

1.3

2200

6.85

1.26

2500

7.43

1.2

3000

8.25

1.08

Order Informations:

Marking

HELLOSIGNAL 7-8" AL LOW LOSS RF COAXIAL CABLE ××× M

Package

Inquired Length on Wooden Drum and Pallet.

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
