NO.7102062 3C-2V+2x0.50, Figure 8

  • 3C-2V

  • hellosignal

  • 7102062

  • Coaxial Cable

  • 75 ohm

  • UL, ETL, CE, RoHS

  • 100m, 305m,500m,1000m,500ft,1000ft

  • roll, wooden spool, carton, pallet

  • 30KM

  • Normally 15 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Specification

zion LOGO3C-2V+2x0.50,Figure 8

75 Ohm CCTV coaxial Cable

NO.7102062

Construction Parameters:

Inner Conductor

0.50mm Copper

Dielectric

3.2mm Foamed Polyethylene

Shield 1

Al Foil

Shield 2

0.12mmCCA-Braid(48%)

Jacket

5.0mm PVC/PE/LSZH

Power Wire Conductor

2x(11*0.25mmCCA )

Power wire Diameter of insulation

1.6mmPVC (Red,Black)

Jacket

4.4mm PVC/PE/LSZH

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor                         Resistance

The Max. at 20 shall be<87.6Ω/km

Capacitance

69±4 pF/m


Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 20dB

Velocity of Propagation


Sparker Test (VAC)

1



Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20  to 60

Cable diamensions

5.0×4.4mm

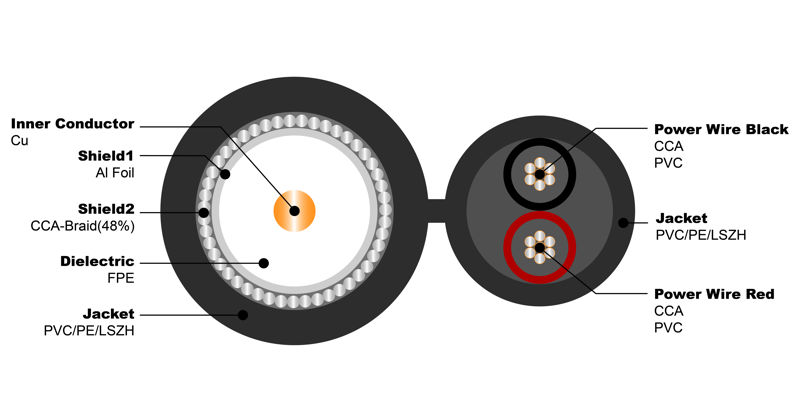

Cross Section


Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

10


4.80

30


8.30

72


12.90

88


14.20

90


14.40

135


17.60

180


20.40

220


22.50

270


24.90

440


31.80

750


41.60

770


42.10














Order Informations:

Marking

HELLOSIGNAL 3C-2V+2x0.50,Figure 8
CCTV COAXIAL CABLE 7102062 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
