UL 1424 FPLP Unshielded
hellosignal
7110042
Fire Alarm Cable
UL, ETL, CE,CPR, RoHS
100m,500m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
18AWG 4/C SOL FPLP-CL2P Fire Alarm Cables NO.7110042 | ||||||||
Cable construction : | ||||||||
Conductor: | ||||||||
18AWG Solid Bare Copper | ||||||||
Nom.Dia:0.04''(1.02mm) | ||||||||
Dielectric: | ||||||||
Type: Plenum PVC | ||||||||
Dia.over Dielectric: 0.054±0.004''nom.(1.37±0.10mm) | ||||||||
Color Code: | ||||||||
1.Blk | 2.Red | 3.Ylw | 4.Grn | |||||
Jacket: | ||||||||
Type: Plenum PVC | ||||||||
Color: Red | ||||||||
Dia.over Jacket: 0.157''±0.006''(4.00±0.15mm) | ||||||||
Print Legend: | ||||||||
HELLOSIGNAL NO.7110042 18AWG 4C 75C E××××××(UL)SOL FPLP-CL2P SUN RES(ROHS) ××××M/FT DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9 | ||||||||
Electrical Properties : | ||||||||
Temperature Rating | -20℃ ~ +75℃ | |||||||
Operating Voltage | 300 Volts max | |||||||
Capacitance | 28 pf/ft nom | |||||||
Impedance | 68 Ohms nom | |||||||
DC Resistance | 6.5 Ohms/M' at 20℃ | |||||||

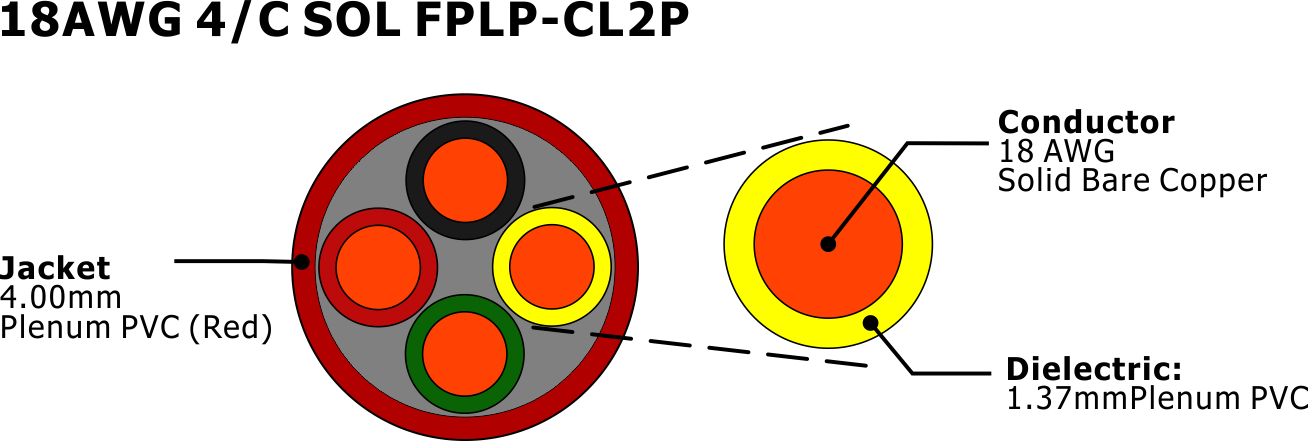

Cross Section : | ||||||||
| ||||||||
Order Informations : | ||||||||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet... | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM | |||||||
