NO.7110048 12AWG 2/C SOL FPLP-CL2P Fire Alarm Cables

Cable construction :

Conductor:

12AWG Solid Bare Copper

Nom.Dia:0.081''(2.05mm)

Dielectric:

Type: Plenum PVC

Dia.over Dielectric: 0.101±0.004''nom.(2.57±0.10mm)

Color Code:

1.Blk

2.Red

Jacket:

Type: Plenum PVC

Color: Red

Dia.over Jacket: 0.246''±0.006''(6.25±0.15mm)

Print Legend:

HELLOSIGNAL NO.7110048 12AWG 2C 75C E××××××(UL) FPLP-CL2P

SUN RES(ROHS) ××××M/FT DEVICE/ZONE

 A B C D E F 1 2 3 4 5 6 7 8 9

Electrical Properties :

Temperature Rating

-20℃ ~ +75℃

Operating Voltage

300 Volts max

Capacitance

31 pf/ft nom

Impedance

60 Ohms nom

DC Resistance

1.6 Ohms/M' at 20℃

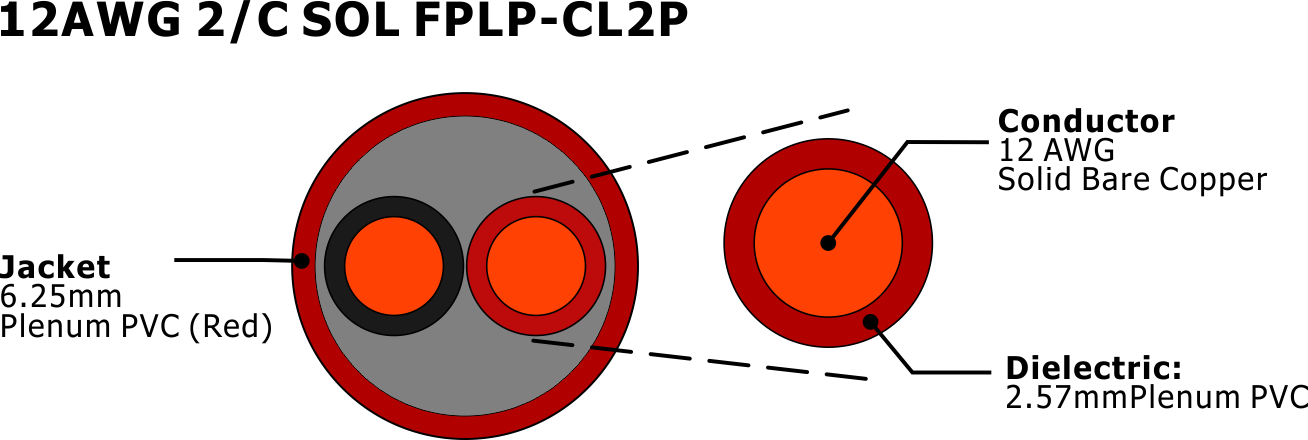

Cross Section :

Order Informations :

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet...

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
