NO.7110242 18AWG 4C STR Unshielded FPLP-CL2P Fire Alarm Cables

  • UL 1424 FPLP Unshielded

  • hellosignal

  • 7110242

  • Fire Alarm Cable

  • UL, ETL, CE,CPR, RoHS

  • 100m,500m,500ft,1000ft

  • roll, wooden spool, carton, pallet

  • 10KM

  • Normally 15 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Specification

18AWG 4/C STR Unshielded FPLP-CL2P

Fire Alarm Cables

NO.7110242

Cable construction :

Conductor:

18AWG Stranded Bare Copper

18 AWG : 7/26, 16/30, 19/30, 41/34, 65/36

Nom.Dia:0.04''(1.02mm)

Dielectric:

Type: Plenum PVC

Dia.over Dielectric: 0.062±0.004''nom.(1.57±0.10mm)

Color Code:

1.Blk

2.Red

3.Ylw

4.Grn







Jacket:

Type: Plenum PVC

Color: Red

Dia.over Jacket: 0.173''±0.006''(4.40±0.15mm)

Print Legend:

HELLOSIGNAL NO.7110242 18AWG 4C 75C E××××××(UL) STR Unshielded FPLP-CL2P

SUN RES(ROHS) ××××M/FT DEVICE/ZONE

A B C D E F 1 2 3 4 5 6 7 8 9

Electrical Properties :

Temperature Rating

-20 ~ +75

Operating Voltage

300 Volts max

Capacitance

20 pf/ft nom

Impedance

81 Ohms nom

DC Resistance

6.5 Ohms/M' at 20

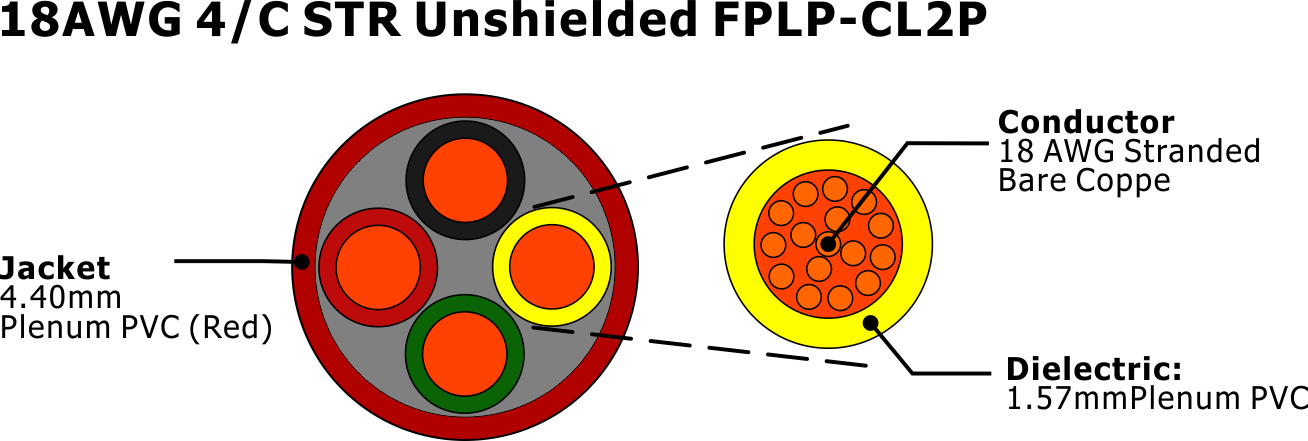

Cross Section :




Order Informations :

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
